Compressed air meter - SD8000
IFM SD8000 - Compressed air meter - Weight: 2029; Storage Temperature: -20...85; Display range: -12...72.
This listing covers the IFM SD8000, a part number in the Compressed air meter category. The manufacturer's published data for this part number specifies Weight: 2029 and Storage Temperature: -20...85.
PBT-GF20; NBR; PC; stainless steel (1.4301 / 304); PTFE; brass coated; FKM; aluminum powder-coated
Key manufacturer data on file for this item includes Display range: -12...72; Ambient temperature: 0...60; Connector: 1 x M12; coding: A; Contacts: 4; Protection class: III; Dimensions: 475 x 45 x 88.5; Number of digital outputs: 2; Application: for industrial applications; Output signal: switching signal; analog signal; pulse signal; IO-Link; (configurable); Product type: Compressed air meter; Accuracy: ± 2; (medium flow in the limit area of the flow measurement range); Response time: 0.1; (dAP = 0); Communication interface: IO-Link. The complete technical table is shown in the Specifications tab on this page.
| Accuracy | ± 2; (medium flow in the limit area of the flow measurement range) |
|---|---|
| Accuracy (in the measuring range) | ± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344; conditions: installation to DIN ISO 2533; installation in pipes: DN25) |
| Ambient temperature | 0...60 |
| Analog current output | 4...20; (scalable) |
| Application | for industrial applications |
| Communication interface | IO-Link |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Current consumption | < 110 |
| Damping process value dAP in steps | 0 - 0,2 - 0,4 - 0,6 - 0,8 - 1 |
| Dimensions | 475 x 45 x 88.5 |
| Display range | -12...72 |
| Electrical design | PNP |
| In steps of | 0.001 m³ |
| IO-Link revision | 1.1 |
| Key Features | Precise measurement of flow, consumption and medium temperature; High accuracy, repeatability and measurement dynamics; For detecting compressed air in industrial use; With switching output, analog output and pulse output; Clearly visible numerical display |
| Material | PBT-GF20; NBR; PC; stainless steel (1.4301 / 304); PTFE; brass coated; FKM; aluminum powder-coated |
| Materials (wetted parts) | stainless steel (1.4301 / 304); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminum |
| Max. load | 500 |
| Max. relative air humidity | 90 |
| Max. voltage drop switching output DC | 2 |
| Measuring range | 0...60 |
| Media | compressed air |
| Medium temperature | 0...60 |
| Min. process cycle time | 4.1 |
| MTTF | 227 |
| Number of analog outputs | 1 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
| Operating voltage | 18...30 DC; (to SELV/PELV) |
| Output function | normally open / closed; (configurable) |
| Output signal | switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Parameter setting options | Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; totalizer |
| Permanent current rating of switching output DC | 250; (per output) |
| Power-on delay time | 1 |
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Process Connection | threaded connection R 1 external thread DN25 |
| Process data analog | 3 |
| Process data binary | 2 |
| Product type | Compressed air meter |
| Protection | IP 65 |
| Protection class | III |
| Pulse length | 0,02...2 |
| Pulse output | consumed quantity meter |
| Pulse value | 0.003...3000000 m³ |
| Repeatability | ± 1,5 |
| Required master port class | A |
| Response time | 0.1; (dAP = 0) |
| Reverse polarity protection | yes |
| SDCI standard | IEC 61131-9 CDV |
| Short circuit protection | yes |
| SIO mode | yes |
| Specification Summary | Compressed air meter; PNP; switching signal; analog signal; pulse signal; IO-Link; Measuring range 0.7...225 m³/h; Measuring range 13...3750 l/min; Medium temperature 0...60 °C; Pressure rating 16 bar; R 1 external thread DN25; Connector |
| Storage Temperature | -20...85 |
| Total number of outputs | 2 |
| Transmission type | COM2 (38,4 kBaud) |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 2029 |
Frequently Asked Questions
How do I get pricing for SD8000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SD8000?
SD8000 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SD8000?
Key specifications include Accuracy: ± 2; (medium flow in the limit area of the flow measurement range); Accuracy (in the measuring range): ± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344; conditions: installation to DIN ISO 2533; installation in pipes: DN25); Ambient temperature: 0...60; Analog current output: 4...20; (scalable). The full specification table on this page lists every published attribute for this part.
How quickly can SD8000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Compressed air meter - SD8001
IFM Compressed air meter - SD8500

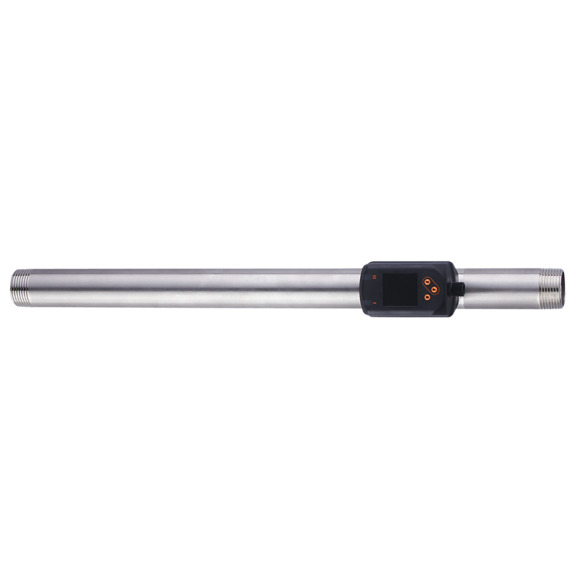

IFM Compressed air meter - SD8501
