Inductive sensor - IG5526
IFM IG5526 - Inductive sensor - Weight: 54.7; Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
This listing covers the IFM IG5526, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 54.7 and Ambient temperature: -25...80.
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Protection class: II; Dimensions: M18 x 1 / L = 80; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...30 DC; Current consumption: 10; (24 V); Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes; Special Feature: gold-plated contacts; Output function: normally open. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -25...80 |
|---|---|
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | 10; (24 V) |
| Dimensions | M18 x 1 / L = 80 |
| Electrical design | PNP |
| Embedded software included | no |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Key Features | Robust metal housing for use in harsh industrial environments; Wide operating temperature range; High protection rating for the requirements of harsh industrial environments |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1853 |
| Operating distance | 0...6.48 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Inductive sensor; M18 x 1 / L = 80 mm; Sensing range 8 mm non-flush mountable; normally open; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...80 °C; Switching frequency 300 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 300 |
| Thread designation | M18 x 1 |
| Weight | 54.7 |
Frequently Asked Questions
How do I get pricing for IG5526?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG5526?
IG5526 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IG5526?
Key specifications include Ambient temperature: -25...80; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3; Current consumption: 10; (24 V). The full specification table on this page lists every published attribute for this part.
How quickly can IG5526 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

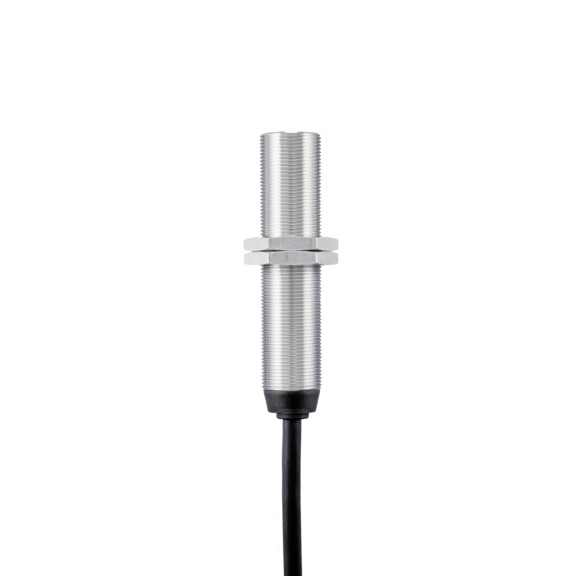

IFM Inductive sensor - IG5521
IFM Inductive sensor - IG5539
IFM Inductive sensor - IG5497
IFM Inductive sensor - IG5554

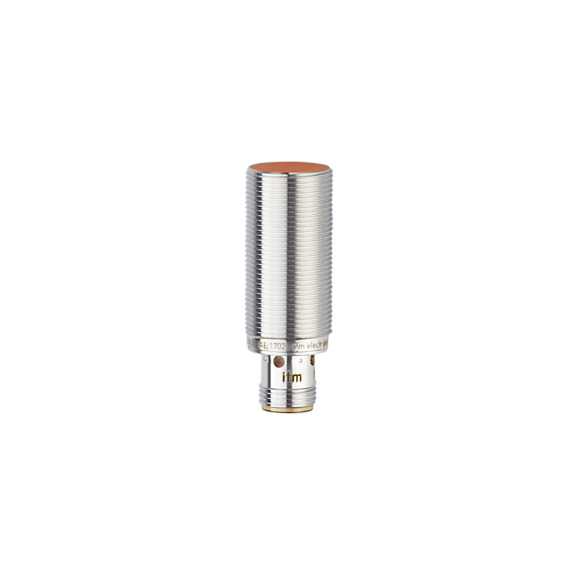

IFM Inductive sensor - IG5495
