Inductive sensor - IG5502
IFM IG5502 - Inductive sensor - Weight: 367; Ambient temperature: -25...80; Protection class: II.
The IFM IG5502 is part of the Inductive sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 367 and Ambient temperature: -25...80.
housing: stainless steel (1.4571/316Ti ); sensing face: PBT white; end cap: PC; lock nuts: stainless steel (1.4404 / 316L)
Published specifications for this part include Protection class: II; Dimensions: M18 x 1 / L = 80; Application: Industrial applications; Product type: Inductive sensor; Mounting: flush mountable; Cable: 6 m, PVC; 3 x 0.5 mm²; Operating voltage: 10...36 DC; Current consumption: 15; Reverse polarity protection: yes; Sensing range: 5; Overload protection: yes; Output function: normally open. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Application | Industrial applications |
| Cable | 6 m, PVC; 3 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 15 |
| Dimensions | M18 x 1 / L = 80 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...15 |
| Key Features | Wide operating temperature range; Robustes Edelstahlgehäuse für den Einsatz in der Lebensmittel- und Getränkeindustrie; Very high switching frequency; With long PVC cable; High protection rating for the requirements of harsh industrial environments |
| Material | housing: stainless steel (1.4571/316Ti ); sensing face: PBT white; end cap: PC; lock nuts: stainless steel (1.4404 / 316L) |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1884 |
| Operating distance | 0...4.05 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 5 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 5 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M18 x 1 / L = 80 mm; Sensing range 5 mm flush mountable; normally open; DC; PNP; 6 m PVC-Cable; IP 67; 3-wire; Ambient temperature -25...80 °C; Switching frequency 500 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 500 |
| Thread designation | M18 x 1 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 367 |
Frequently Asked Questions
How do I get pricing for IG5502?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG5502?
IG5502 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IG5502?
Key specifications include Ambient temperature: -25...80; Application: Industrial applications; Cable: 6 m, PVC; 3 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2. The full specification table on this page lists every published attribute for this part.
How quickly can IG5502 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IG5557

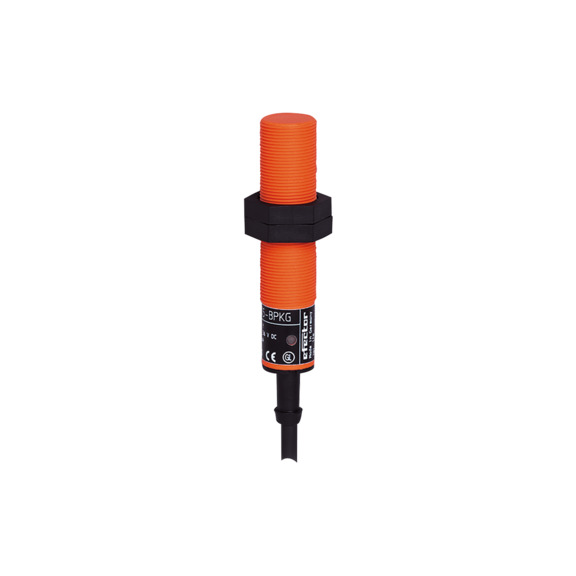

IFM Inductive sensor - IG5403
