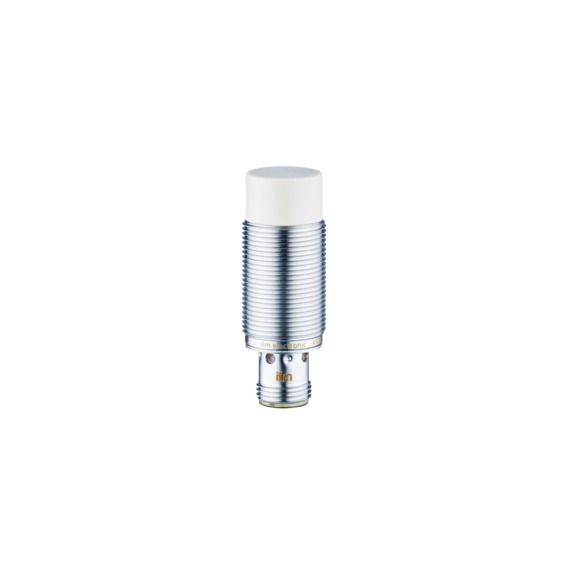

IGT200 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IGT200 - Inductive sensor - Ambient temperature: 0...100; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number IGT200 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature 0...100; Dimensions M18 x 1 / L = 50; Electrical design PNP; Housing Threaded type. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IGT200 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Ambient temperature: 0...100.
housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 50; Protection class: II; Dimensions: M18 x 1 / L = 50; Application: Use in hygienic areas / regular cleaning processes; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 12; Overload protection: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | 0...100 |
|---|---|
| Application | Use in hygienic areas / regular cleaning processes |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 50 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...20 |
| Key Features | Wide operating temperature range; High protection rating for the requirements of harsh industrial environments; Resistant to high-pressure cleaning with aggressive cleaning agents; Robust stainless steel housing for use in the food industry; Temperature shock resistant even in case of frequent temperature fluctuations |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1134 |
| Operating distance | 0...9.72 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 68; IP 69K |
| Protection class | II |
| Real sensing range Sr | 12 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 12 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Inductive sensor; M18 x 1 / L = 50 mm; Sensing range 12 mm non-flush mountable; normally open; DC; PNP; M12 Connector; IP 68; IP 69K; 3-wire; Ambient temperature 0...100 °C; Switching frequency 300 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 300 |
| Thread designation | M18 x 1 |
| Tightening torque | 50 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IGT200 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 33 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IGT200?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGT200?
IGT200 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IGT200, and the quote confirms condition and lead time before you order.
Is the IGT200 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IGT200, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IGT200?
No published lifecycle status is on file for IGT200. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IGT200?
Key specifications include Ambient temperature: 0...100; Application: Use in hygienic areas / regular cleaning processes; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does IGT200 use?
Per the published specification for IGT200: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IGT200?
Per the published specification for IGT200: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IGT200 use?
Per the published specification for IGT200: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IGT200 ship?
Lead time for IGT200 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
