Inductive sensor - IG5715
IFM IG5715 - Inductive sensor - Material: housing: brass white bronze coated; sensing face: PC; Weight: 143.1; Ambient temperature: -25...80.
In our catalog, the IG5715 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: brass white bronze coated; sensing face: PC and Weight: 143.1.
Robust metal housing for use in harsh industrial environments; Wide operating temperature range; Particularly short housing for use where space is restricted; High protection rating for the requirements of harsh industrial environments
The specification set recorded for this part number covers Ambient temperature: -25...80; Protection class: II; Dimensions: M18 x 1 / L = 44; Product type: Inductive sensor; Mounting: non-flush mountable; Cable: 2 m, PVC; 2 x 0.5 mm²; Operating voltage: 10...36 DC; Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes; Output function: normally open; Hysteresis: 3...15. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -25...80 |
|---|---|
| Cable | 2 m, PVC; 2 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 44 |
| Electrical design | PNP/NPN |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Key Features | Robust metal housing for use in harsh industrial environments; Wide operating temperature range; Particularly short housing for use where space is restricted; High protection rating for the requirements of harsh industrial environments |
| Material | housing: brass white bronze coated; sensing face: PC |
| Max. leakage current | 0.8 |
| Max. voltage drop switching output DC | 4.6 |
| Minimum load current | 4 |
| Mounting | non-flush mountable |
| MTTF | 2583 |
| Operating distance | 0...6.5 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 150 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M18 x 1 / L = 44 mm; Sensing range 8 mm non-flush mountable; normally open; DC; PNP/NPN; 2 m PVC-Cable; IP 67; 2-wire; Ambient temperature -25...80 °C; Switching frequency 300 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 300 |
| Thread designation | M18 x 1 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 143.1 |
Frequently Asked Questions
How do I get pricing for IG5715?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG5715?
IG5715 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IG5715?
Key specifications include Ambient temperature: -25...80; Cable: 2 m, PVC; 2 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3; Dimensions: M18 x 1 / L = 44. The full specification table on this page lists every published attribute for this part.
How quickly can IG5715 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IG5593
IFM Inductive sensor - IG5717

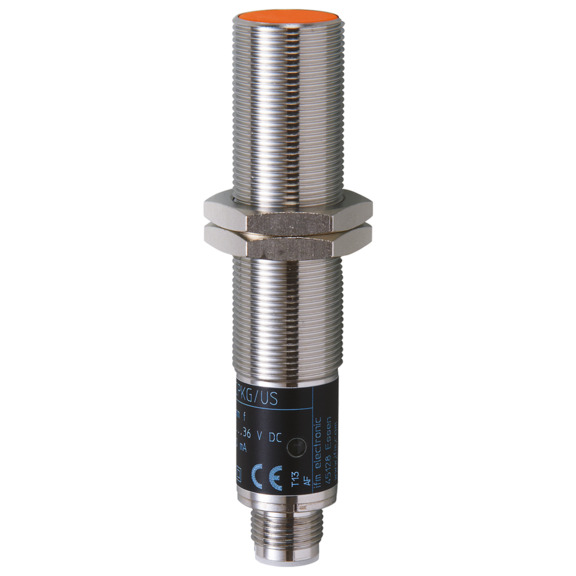

IFM Inductive sensor - IG5557
IFM Inductive sensor - IG5774

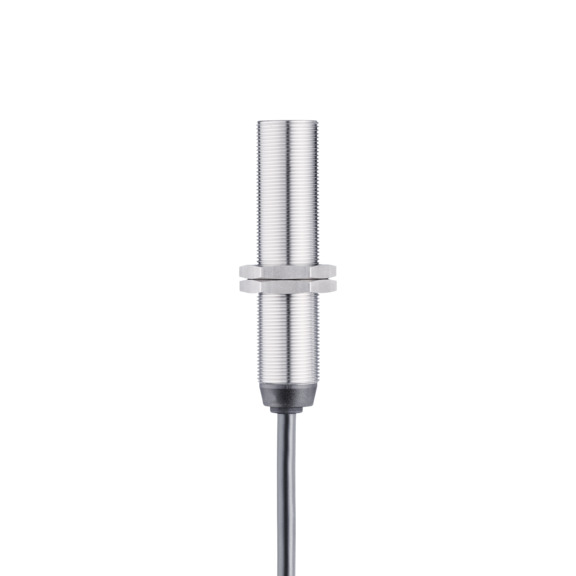

IFM Inductive sensor - IG5502
