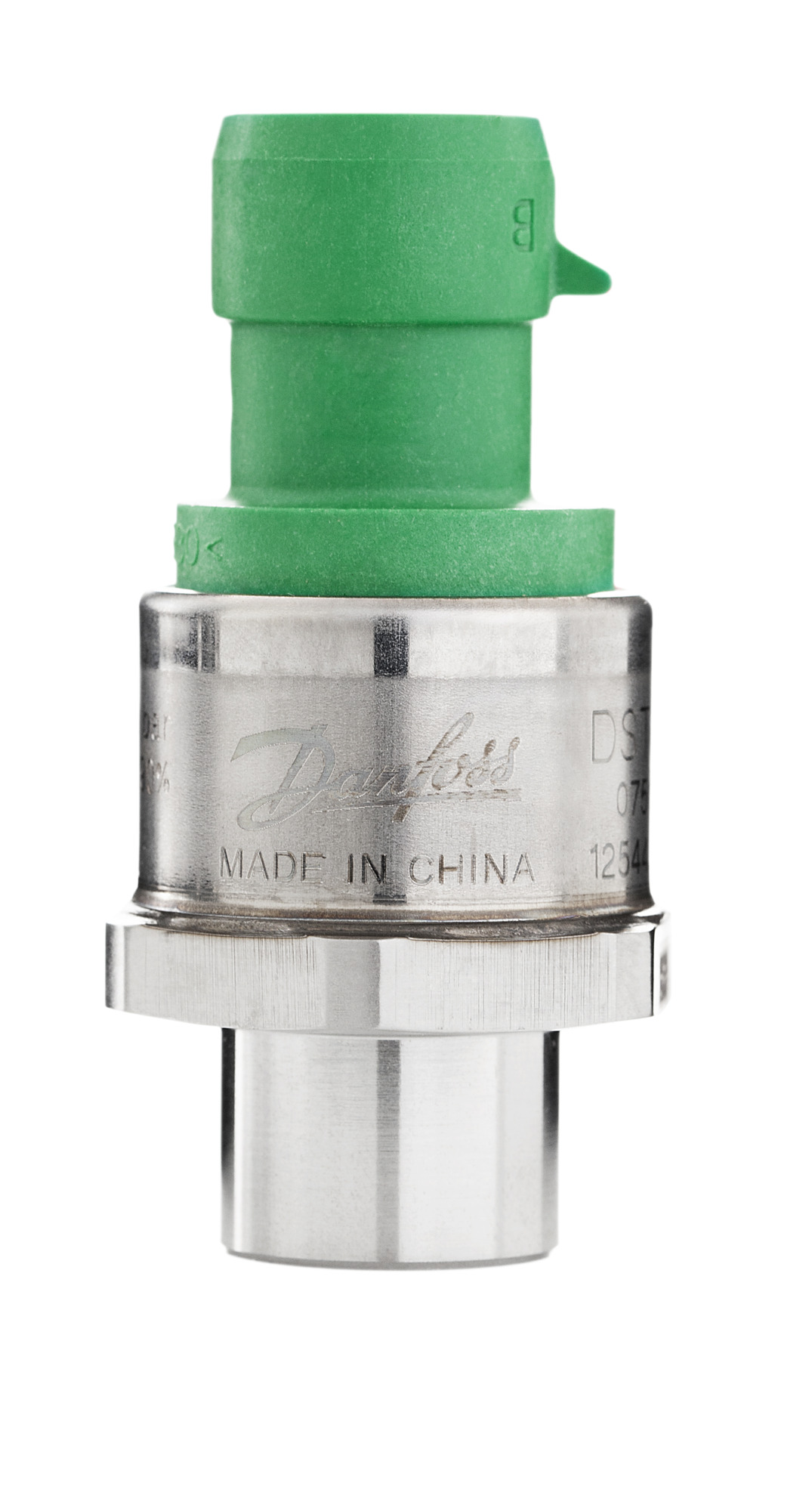

075G1013 — Danfoss Pressure transmitter, DST P110, -1 bar - 12 bar, -14.5 psi - 174 psi
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 075G1013 - DST P110 - Housing material: 304L; Electrical connection: Round Packard Metri-Pack; Type: DST P110.
Overview
Part number 075G1013 from Danfoss, listed in Pressure Sensors & Transmitters. Specifications on file: - common Pin A; + output Pin C; + supply Pin B; Ambient temperature range [°C] [max] 125 °C. KKM Solutions quotes this part with pricing and availability confirmed per order.
The 075G1013 from Danfoss is listed under DST P110 in our catalog. The manufacturer's published data for this part number specifies Housing material: 304L and Electrical connection: Round Packard Metri-Pack.
Published specifications for this part include Type: DST P110; Gross weight: 0.072 Kilogram; Net weight: 0.062 Kilogram; Volume: 0.084 Liter; EAN: 5702428558785; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 64 pc. See the Specifications tab on this page for the full technical table.
Specifications
| - common | Pin A |
|---|---|
| + output | Pin C |
| + supply | Pin B |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Approval | C UL US UL RecognizedCE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 120 °C |
| Compensated temp. range [°C] [Min] | -40 °C |
| Contains batteries | No |
| EAN | 5702428558785 |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Electrical connection standard | 150.2 SERIES |
| Electrical Connector Colour | Green |
| Enclosure rating IP | IP69K |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault signal level | 2 |
| Gross weight | 0.072 Kilogram |
| High Clipping Level | 99 |
| Housing material | 304L |
| Identical product | 075G4002 |
| In scope of WEEE | Yes |
| International Article Number | 5702428558785 |
| Low Clipping Level | 4 |
| Medium temperature range [°C] [Max] | 135 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Net weight | 0.062 Kilogram |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 51 bar |
| Overload pressure max. [psi] | 739 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | SAE J513 45° flare |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 12 bar |
| Pressure range [bar] [Min] | -1 bar |
| Pressure range [psi] [Max] | 174 psi |
| Pressure range [psi] [Min] | -14.5 psi |
| Pressure unit reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 64 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| Specification key | DST P110-DH36-LBBF08-0 |
| Supply voltage [V] DC | 5 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | DST P110 |
| UL evaluated | Yes |
| Volume | 0.084 Liter |
| Wetted part material | 304L 316L |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 075G1013 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 59 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 075G1013?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 075G1013?
075G1013 is made by Danfoss and is listed in our Pressure Sensors & Transmitters category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 075G1013, and the quote confirms condition and lead time before you order.
Is the 075G1013 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 075G1013, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 075G1013?
No published lifecycle status is on file for 075G1013. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 075G1013?
Key specifications include - common: Pin A; + output: Pin C; + supply: Pin B; Ambient temperature range [°C] [max]: 125 °C. The full specification table on this page lists every published attribute for this part.
What voltage does 075G1013 use?
Per the published specification for 075G1013: Supply voltage [V] DC: 5 V. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of 075G1013?
Per the published specification for 075G1013: Enclosure rating IP: IP69K. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does 075G1013 use?
Per the published specification for 075G1013: Pressure connection size: 7/16-20; Pressure connection type: UNF. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 075G1013 ship?
Lead time for 075G1013 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
