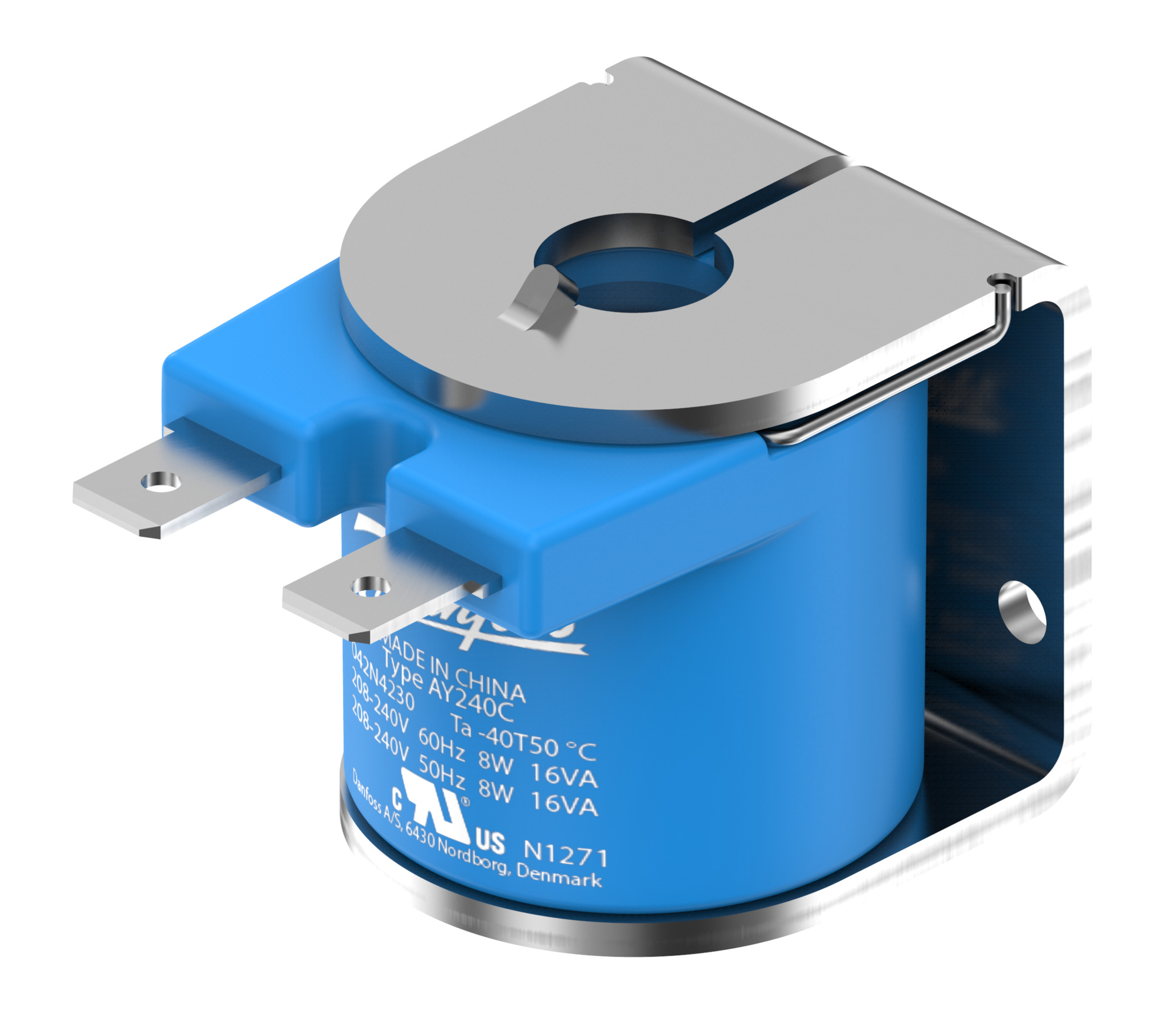

Danfoss Solenoid coil, AY240C, US Spade, Supply voltage [V] AC: 208 - 240, Industrial pack
| Actuator size | 9 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | LLC CDC TYSKcURus |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | US 0.25 in Spade |
| Coil fastening | Clip-on |
| Colour | Blue |
| Compliance | UL 429 |
| Contains batteries | No |
| EAN | 5702423272129 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | US Spade |
| Electrical connection size | 0.25 in |
| Electrical connector | 2 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Gross weight | 0.109 Kilogram |
| Identical product | 042N4230 |
| In scope of WEEE | Yes |
| Net weight | 0.101 Kilogram |
| Packing format | Industrial pack |
| Parts Program name | EV220S |
| Power consumption [W] 50Hz | 8 W |
| Power consumption [W] 60Hz | 8 W |
| Power consumption 50Hz [VA] | 16 VA |
| Power consumption 60Hz [VA] | 16 VA |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Spare part number | 042N4230 |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 208 V |
| Supply voltage 50Hz Max [V] | 240 V |
| Supply voltage 50Hz Min [V] | 208 V |
| Supply voltage 60Hz Max [V] | 240 V |
| Supply voltage 60Hz Min [V] | 208 V |
| Type | AY240C |
| Type designation | AY240C |
| UL approval file name | MH29671 |
| UL evaluated | Yes |
| Volume | 0.156 Liter |
Frequently Asked Questions
How do I get pricing for 042N8230?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 042N8230?
042N8230 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 042N8230?
Key specifications include Actuator size: 9 mm; Ambient temperature range [°C] [max]: 50 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 120 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 042N8230 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
