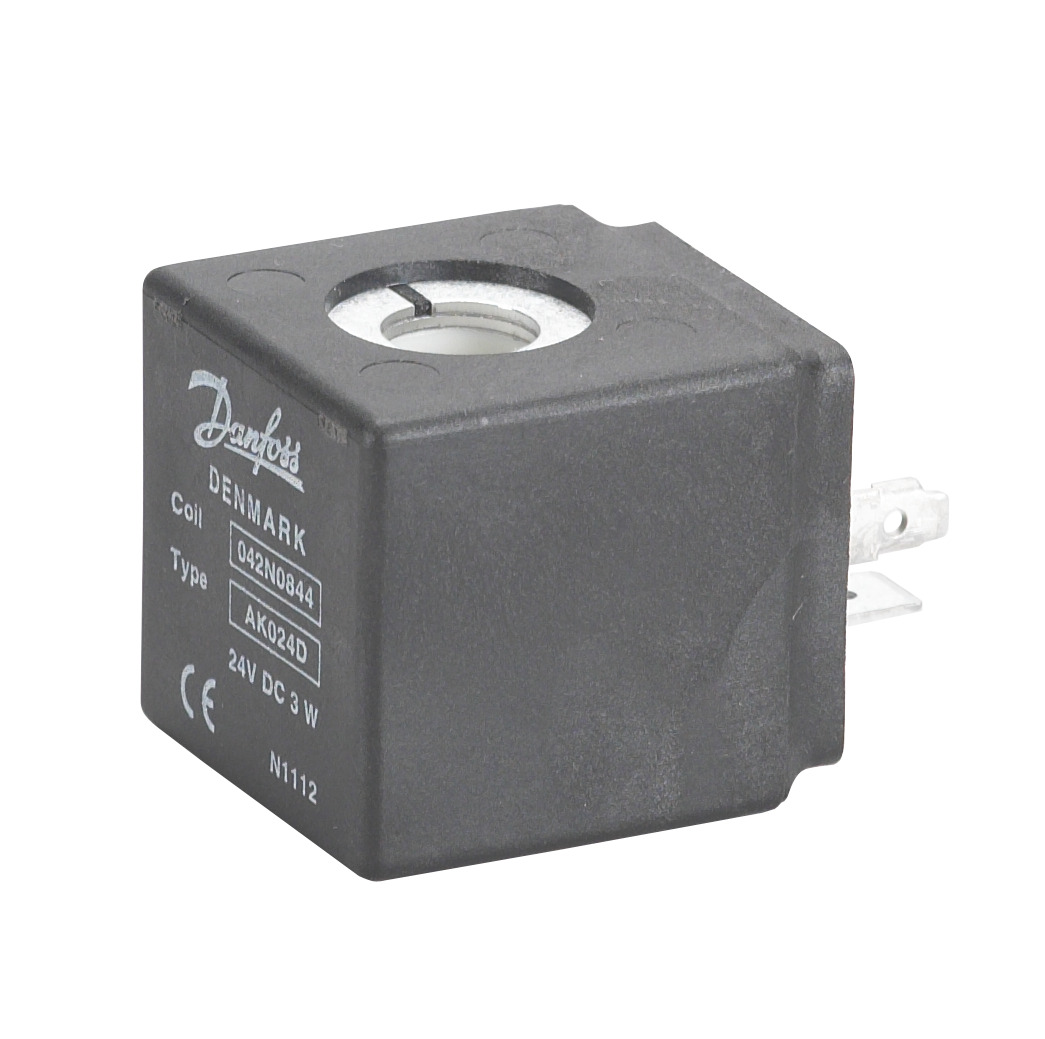

042N0844 — Danfoss Solenoid coil, AK024D, DIN Spade, null: 24, Multi pack
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 042N0844 - AK - Electrical connection: DIN Spade; Type: AK024D; Gross weight: 0.11 Kilogram.
Overview
Part number 042N0844 from Danfoss, listed in Wire Ferrules & Lugs. Specifications on file: Actuator size 9 mm; Ambient temperature range [°C] [max] 50 °C; Ambient temperature range [°C] [min] -40 °C; Ambient temperature range [°F] [Max] 122 °F. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Danfoss 042N0844 is part of the AK range in our industrial catalog. The manufacturer's published data for this part number specifies Electrical connection: DIN Spade and Type: AK024D.
The specification set recorded for this part number covers Gross weight: 0.11 Kilogram; Net weight: 0.103 Kilogram; Volume: 0.093 Liter; EAN: 5702423049905; Product group: Solenoid valves; Product Name Description: Solenoid coil; China RoHS compliance: Yes; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 24 pc; REACH Candidate List substances: No. See the Specifications tab on this page for the full technical table.
Specifications
| Actuator size | 9 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil fastening | Finger screw |
| Colour | Black |
| Contains batteries | No |
| EAN | 5702423049905 |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.11 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 0.103 Kilogram |
| Packing format | Multi pack |
| Power consumption [W] DC | 3.5 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | AK024D |
| Type designation | AK024D |
| Volume | 0.093 Liter |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 042N0844 |
| Product category | Wire Ferrules & Lugs |
| Published specifications | 34 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 042N0844?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 042N0844?
042N0844 is made by Danfoss and is listed in our Wire Ferrules & Lugs category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 042N0844, and the quote confirms condition and lead time before you order.
Is the 042N0844 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 042N0844, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 042N0844?
No published lifecycle status is on file for 042N0844. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 042N0844?
Key specifications include Actuator size: 9 mm; Ambient temperature range [°C] [max]: 50 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 122 °F. The full specification table on this page lists every published attribute for this part.
What voltage does 042N0844 use?
Per the published specification for 042N0844: Supply voltage [V] DC: 24 V. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of 042N0844?
Per the published specification for 042N0844: Enclosure rating IP: IP00. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 042N0844 rated for?
Per the published specification for 042N0844: Ambient temperature range [°F] [Min]: -40 °F. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 042N0844 ship?
Lead time for 042N0844 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
