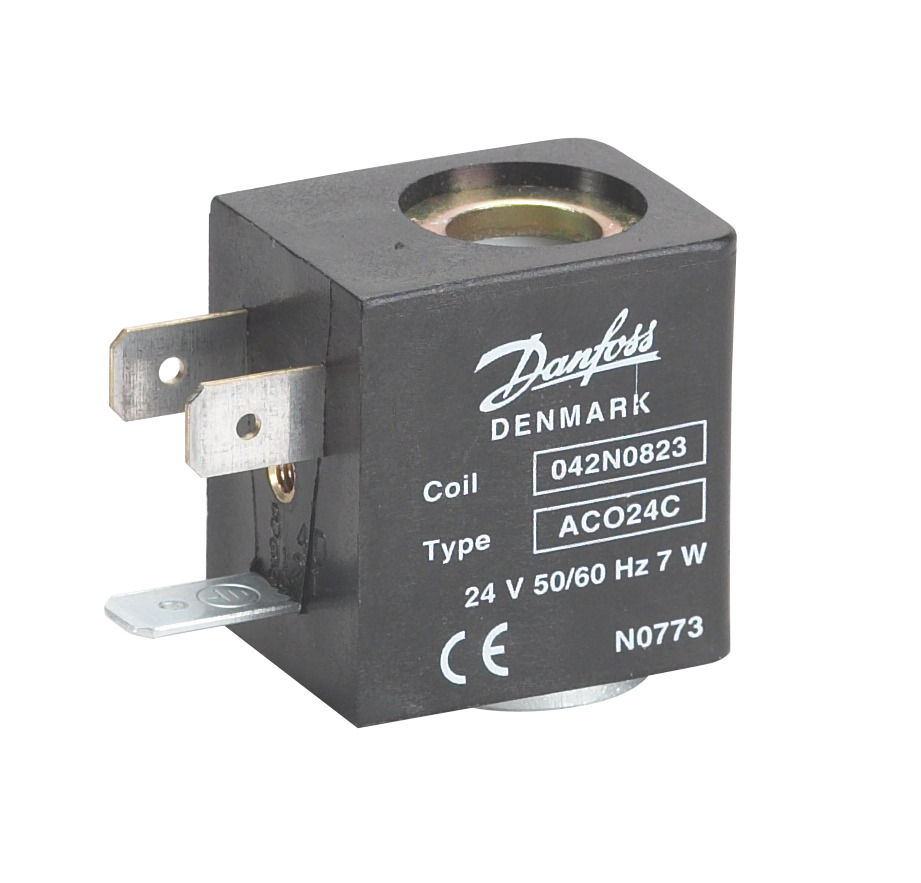

Danfoss Solenoid coil, AC024C, DIN Spade, Supply voltage [V] AC: 24, Multi pack
| Actuator size | 9 mm |
|---|---|
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 122 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil fastening | Finger screw |
| Colour | Black |
| Contains batteries | No |
| EAN | 5702423049714 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Gross weight | 0.062 Kilogram |
| In scope of WEEE | Yes |
| Net weight | 0.053 Kilogram |
| Packing format | Multi pack |
| Parts Program name | EV210AEV220AEV310A |
| Power consumption [W] 50Hz | 7 W |
| Power consumption [W] 60Hz | 7 W |
| Power consumption 50Hz [VA] | 11 VA |
| Power consumption 60Hz [VA] | 9 VA |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Type | AC024C |
| Type designation | AC024C |
| Volume | 0.087 Liter |
Frequently Asked Questions
How do I get pricing for 042N0823?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 042N0823?
042N0823 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 042N0823?
Key specifications include Actuator size: 9 mm; Ambient temperature range [°C] [max]: 50 °C; Ambient temperature range [°C] [min]: -40 °C; Ambient temperature range [°F] [Max]: 122 °F. The full specification table on this page lists every published attribute for this part.
How quickly can 042N0823 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
