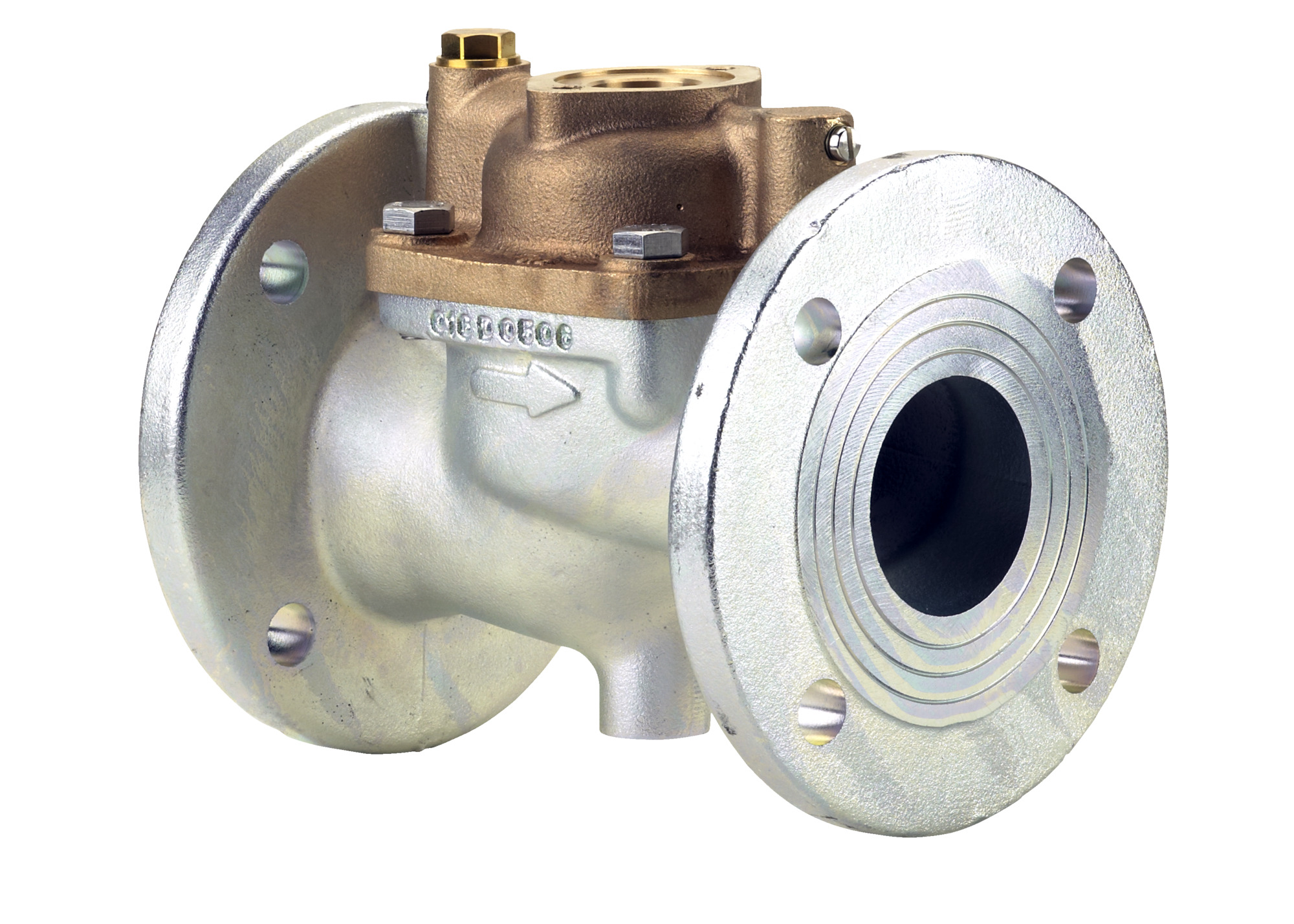

016D5050 — Danfoss Valve body for water reg.valve, WVH, 2 in
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 016D5050 - WVH - Type: WVH; Gross weight: 13.282 Kilogram; Net weight: 12.428 Kilogram.
Overview
Part number 016D5050 from Danfoss, listed in Valves & Process Control. Specifications on file: Approval EACLLC CDC TYSKPEDRoHSRoHS China; Body material Cast iron; China RoHS compliance Out of scope; Connection size [in] 2 in. KKM Solutions quotes this part with pricing and availability confirmed per order.
Danfoss 016D5050 is a WVH catalog item from Danfoss. The manufacturer's published data for this part number specifies Type: WVH and Gross weight: 13.282 Kilogram.
Published specifications for this part include Net weight: 12.428 Kilogram; Volume: 22.493 Liter; EAN: 5702422041207; Product group: Water regulating valves; Product Name Description: Valve body for water reg.valve; China RoHS compliance: Out of scope; Connection size [in]: 2 in; Connection type: Weld flange; Contains batteries: No; EU RoHS compliance: Out of scope; Packing format: Single pack; Quantity per packing format: 1 pc. See the Specifications tab on this page for the full technical table.
Specifications
| Approval | EACLLC CDC TYSKPEDRoHSRoHS China |
|---|---|
| Body material | Cast iron |
| China RoHS compliance | Out of scope |
| Connection size [in] | 2 in |
| Connection type | Weld flange |
| Contains batteries | No |
| Differential pressure [bar] [max] | 4 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 58 psi |
| Differential pressure [psi] [Min] | 4.3 psi |
| EAN | 5702422041207 |
| EU RoHS compliance | Out of scope |
| Gross weight | 13.282 Kilogram |
| Kv value [m³/h] | 32 m³/h |
| Max. test pressure [bar] Pe | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 90 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 194 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Net weight | 12.428 Kilogram |
| Orifice size [mm] | 50 mm |
| Orifice size fraction [in] | 2 in |
| Packing format | Single pack |
| Parts included | Flange boltsFlange gasketsScrews for pilot valveValve body |
| Parts Program name | WVSWVTS |
| Product accessories | FlangesGeneric accessories |
| Product group | Water regulating valves |
| Product Name Description | Valve body for water reg.valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | fc3470cc-5810-44ef-89ac-d393613841da |
| SCIP dossier product name | WV Valves |
| Serviceable | Water valve spare parts |
| Type | WVH |
| Used for product | WVS 50WVTS 50 |
| Volume | 22.493 Liter |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 016D5050 |
| Product category | Valves & Process Control |
| Published specifications | 40 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 016D5050?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 016D5050?
016D5050 is made by Danfoss and is listed in our Valves & Process Control category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 016D5050, and the quote confirms condition and lead time before you order.
Is the 016D5050 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 016D5050, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 016D5050?
No published lifecycle status is on file for 016D5050. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 016D5050?
Key specifications include Approval: EACLLC CDC TYSKPEDRoHSRoHS China; Body material: Cast iron; China RoHS compliance: Out of scope; Connection size [in]: 2 in. The full specification table on this page lists every published attribute for this part.
What thread or connection does 016D5050 use?
Per the published specification for 016D5050: Connection type: Weld flange. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 016D5050 rated for?
Per the published specification for 016D5050: Medium temperature range [°C] [Max]: 90 °C; Medium temperature range [°C] [Min]: -25 °C. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 016D5050 weigh?
Per the published specification for 016D5050: Gross weight: 13.282 Kilogram; Net weight: 12.428 Kilogram. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 016D5050 ship?
Lead time for 016D5050 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
