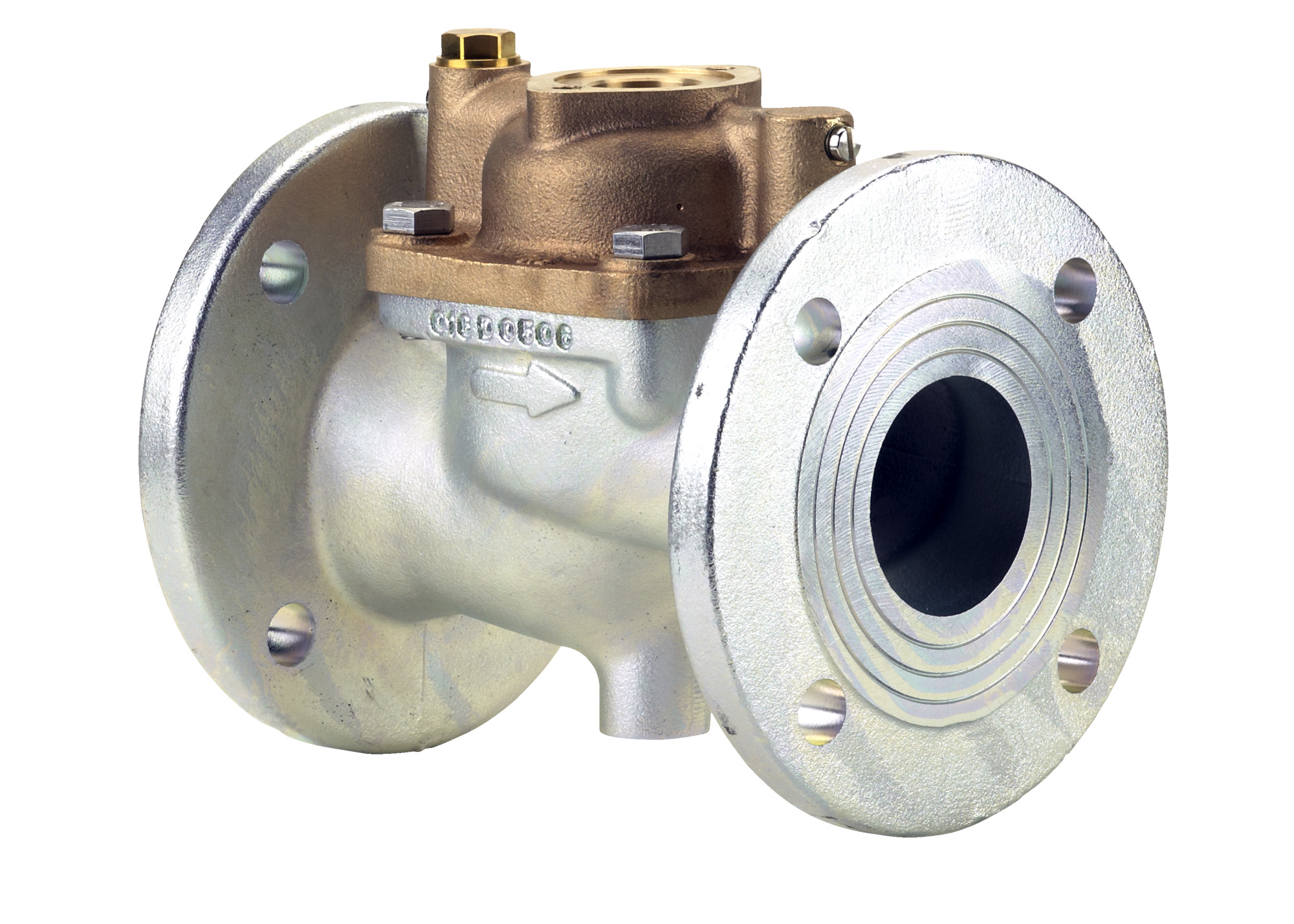

Danfoss Valve body for water reg.valve, WVH, 1 1/2
Danfoss 016D5040 - WVH - Type: WVH; Gross weight: 6.218 Kilogram; Net weight: 5.876 Kilogram.
Danfoss 016D5040 is a WVH catalog item from Danfoss. The manufacturer's published data for this part number specifies Type: WVH and Gross weight: 6.218 Kilogram.
Key manufacturer data on file for this item includes Net weight: 5.876 Kilogram; Volume: 8.68 Liter; EAN: 5702422023142; Product group: Water regulating valves; Product Name Description: Valve body for water reg.valve; China RoHS compliance: Out of scope; Connection Internal/External: Internal; Connection size [in]: 1 1/2; Connection standard: ISO 228-1; Connection type: G; Contains batteries: No; EU RoHS compliance: Out of scope. See the Specifications tab on this page for the full technical table.
| Approval | EACLLC CDC TYSKPEDRoHSRoHS China |
|---|---|
| Body material | Cast iron |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection size [in] | 1 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Differential pressure [bar] [max] | 4 bar |
| Differential pressure [bar] [Min] | 0.5 bar |
| Differential pressure [psi] [Max] | 58 psi |
| Differential pressure [psi] [Min] | 7.2 psi |
| EAN | 5702422023142 |
| EU RoHS compliance | Out of scope |
| Gross weight | 6.218 Kilogram |
| Kv value [m³/h] | 21 m³/h |
| Max. test pressure [bar] Pe | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 90 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 194 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Net weight | 5.876 Kilogram |
| Orifice size [mm] | 40 mm |
| Orifice size fraction [in] | 1 1/2 in |
| Packing format | Single pack |
| Parts included | Flange boltsFlange gasketsScrews for pilot valveValve body |
| Parts Program name | WVSWVTS |
| Product accessories | Generic accessories |
| Product group | Water regulating valves |
| Product Name Description | Valve body for water reg.valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | fc3470cc-5810-44ef-89ac-d393613841da |
| SCIP dossier product name | WV Valves |
| Serviceable | Water valve spare parts |
| Type | WVH |
| Used for product | WVS 40WVTS 40 |
| Volume | 8.68 Liter |
