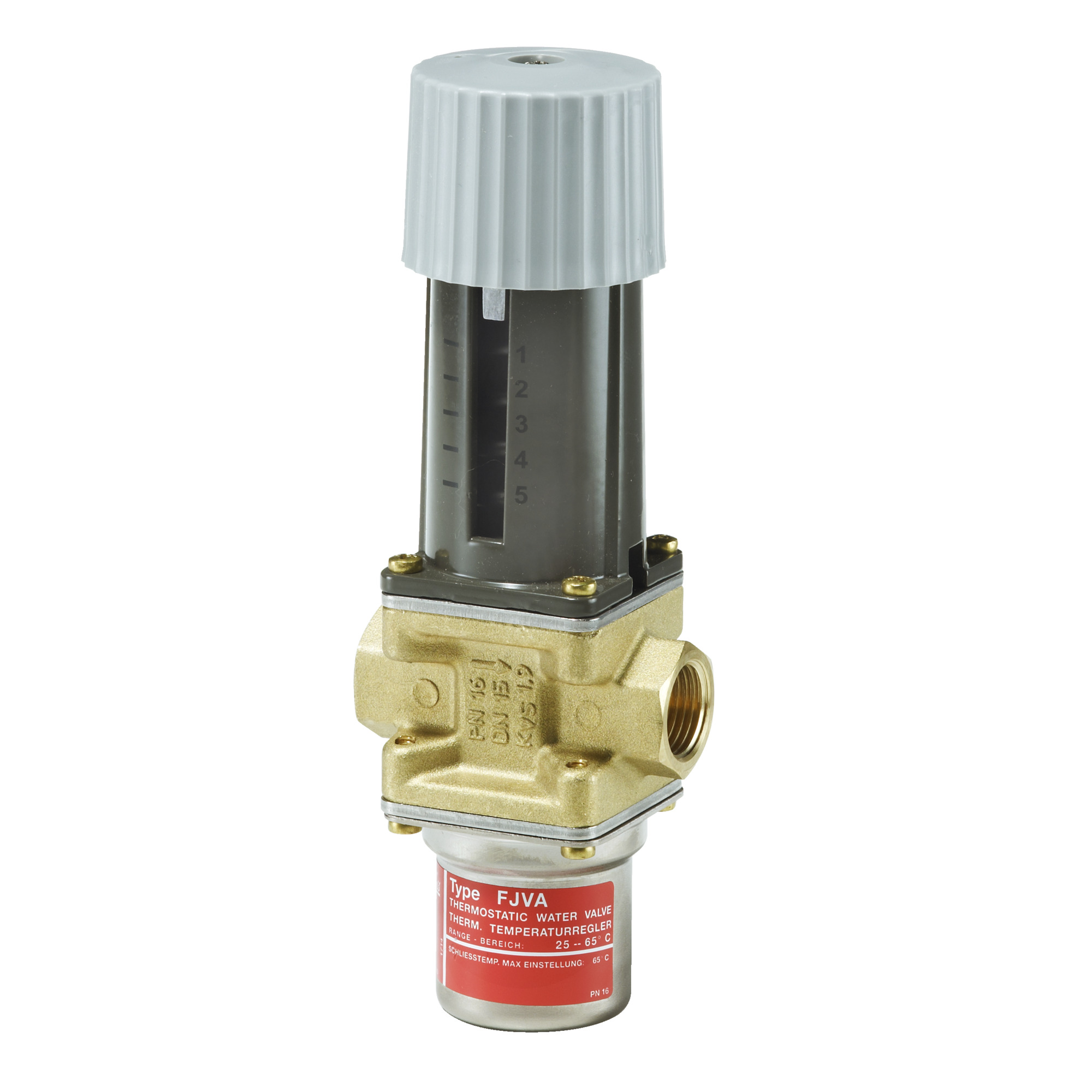

003N8244 — Danfoss Thermo. operated water valve, FJVA 20, G, 3/4
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 003N8244 - FJVA - Type: FJVA 20; Gross weight: 1.39 Kilogram; Net weight: 1.18 Kilogram.
Overview
Part number 003N8244 from Danfoss, listed in Process Solenoid Valves. Specifications on file: Approval EACLLC CDC TYSKPEDRoHSRoHS China; Body material Brass; Bypass (Ø) [in] 5/64 in; Bypass (Ø) [mm] 2 mm. KKM Solutions quotes this part with pricing and availability confirmed per order.
The 003N8244 from Danfoss is listed under FJVA in our catalog. The manufacturer's published data for this part number specifies Type: FJVA 20 and Gross weight: 1.39 Kilogram.
The specification set recorded for this part number covers Net weight: 1.18 Kilogram; Volume: 4.082 Liter; EAN: 5702423028931; Product group: Water regulating valves; Product Name Description: Thermo. operated water valve; China RoHS compliance: Yes; Connection Internal/External: Internal; Connection size [in]: 3/4; Connection standard: ISO 228-1; Connection type: G; Contains batteries: No; EU RoHS compliance: Out of scope. See the Specifications tab on this page for the full technical table.
Specifications
| Approval | EACLLC CDC TYSKPEDRoHSRoHS China |
|---|---|
| Body material | Brass |
| Bypass (Ø) [in] | 5/64 in |
| Bypass (Ø) [mm] | 2 mm |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 3.9 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 0 psi |
| EAN | 5702423028931 |
| EU RoHS compliance | Out of scope |
| Gross weight | 1.39 Kilogram |
| Kv value [m³/h] | 3.4 m³/h |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Net weight | 1.18 Kilogram |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 4/5 in |
| Packing format | Multi pack |
| Product group | Water regulating valves |
| Product Name Description | Thermo. operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a698bb81-6c39-4d14-a29f-0fc686728af9 |
| SCIP dossier product name | AVTA FJVA |
| Temperature range [°C] [Max] | 30 °C |
| Temperature range [°C] [Min] | 0 °C |
| Temperature range [°F] [Max] | 86 °F |
| Temperature range [°F] [Min] | 32 °F |
| Type | FJVA 20 |
| Volume | 4.082 Liter |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 003N8244 |
| Product category | Process Solenoid Valves |
| Published specifications | 43 attributes listed |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 003N8244?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 003N8244?
003N8244 is made by Danfoss and is listed in our Process Solenoid Valves category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 003N8244, and the quote confirms condition and lead time before you order.
Is the 003N8244 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 003N8244, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 003N8244?
No published lifecycle status is on file for 003N8244. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 003N8244?
Key specifications include Approval: EACLLC CDC TYSKPEDRoHSRoHS China; Body material: Brass; Bypass (Ø) [in]: 5/64 in; Bypass (Ø) [mm]: 2 mm. The full specification table on this page lists every published attribute for this part.
What thread or connection does 003N8244 use?
Per the published specification for 003N8244: Connection size [in]: 3/4; Connection type: G. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 003N8244 rated for?
Per the published specification for 003N8244: Medium temperature range [°C] [Max]: 130 °C; Medium temperature range [°C] [Min]: -25 °C. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 003N8244 weigh?
Per the published specification for 003N8244: Gross weight: 1.39 Kilogram; Net weight: 1.18 Kilogram. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 003N8244 ship?
Lead time for 003N8244 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
