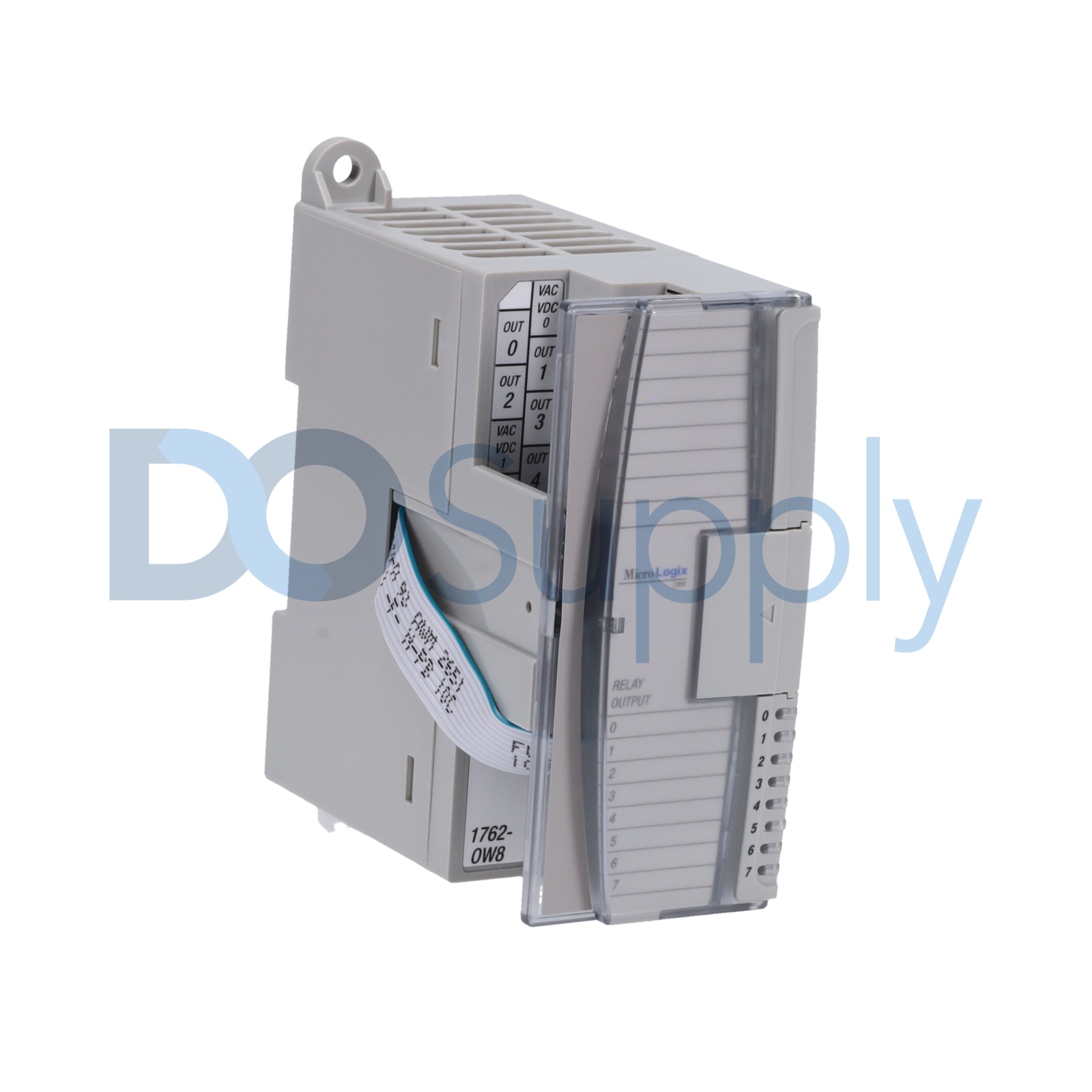

1762-OW8 Allen-Bradley US
Allen-Bradley 1762-OW8 - PLCs & I/O - Width: 40.4 mm; Height: 90 mm; Output: 8 Point, Relay.
Overview
Allen-Bradley 1762-OW8 is a PLCs & I/O catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 40.4 mm and Height: 90 mm.
Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G
The specification set recorded for this part number covers Output: 8 Point, Relay; Weight: 228 g; Operating Temperature: -20 to 65 °C; Storage Temperature: -40 °C; Depth: 87; Altitude: 2000 m; Class: Progmable Logic Controller; Number of digital outputs: 8; Shock: Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G; Number Of Channels: 8 Point; Temperature Rating: 0…55 °C (32…131 °F); Conducted RF immunity: IEC 1000-4-6: 10V @ 0.15...80MHz. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Altitude | 2000 m |
|---|---|
| Bus current draw, max | 90mA @ 24V DC (2.16 W) |
| Class | Progmable Logic Controller |
| Conducted RF immunity | IEC 1000-4-6: 10V @ 0.15...80MHz |
| Continuous current per common, max | 8 A |
| Continuous current per module, max | 16 A |
| Continuous current per point, max | 2.5 A |
| Depth | 87 |
| Digital inputs configurable | False |
| digital output modules | 8 Point VAC/VDC Relay Output Module |
| Digital outputs configurable | False |
| EFT/B immunity | IEC1000-4-4: 2kV @ 5kHz |
| ESD immunity | IEC1000-4-2: 4kV contact, 8kV air, 4kV indirect |
| Estimated Lead Time | 5 days |
| Hazardous environment class | Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Heat dissipation, max | 2.9 W |
| Height | 90 mm |
| I/O Isolation | Isolated |
| I/O Status Indication | LED |
| Isolated groups | Group 1: Outputs 0...3, Group 2: Outputs 4...7 |
| Module Interfaces | Relay output |
| Number Of Channels | 8 Point |
| Number of digital outputs | 8 |
| Off-state leakage current, max | 0 mA |
| On-state current, min | 10 mA |
| Operating humidity | 5...95% noncondensing |
| Operating Temperature | -20 to 65 °C |
| Operating voltage | 5...265V AC |
| Output | 8 Point, Relay |
| Output group to backplane isolation | Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (IEC Class 2 reinforced insulation) |
| Output group to output group isolation | Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (basic insulation), 150V AC working voltage (IEC Class 2 reinforced insulation) |
| Power supply distance rating | 6 (The module may not be more than 6 modules away from the power supply.) |
| Radiated and conducted emissions | EN50081-2: Class A |
| Radiated RF immunity | IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier |
| Redundancy | False |
| Relay output, break | 1.5A @ 120V AC |
| Relay output, break volt-ampere | 28VA @ 24V DC |
| Relay output, continuous | 2.5A @ 240V AC |
| Relay output, make | 7.5A @ 240V AC |
| Relay output, make volt-ampere | 28VA @ 24V DC |
| Shock | Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G |
| Short-circuit protection, outputs available | False |
| Signal delay, resistive load, max | On Delay: 10 ms Off Delay: 10 ms |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Suitable for safety functions | False |
| Surge transient immunity | IEC1000-4-5: 2 kV common mode, 1 kV differential mode |
| Temperature Rating | 0…55 °C (32…131 °F) |
| Time delay at signal exchange | 10 ms |
| Type of digital output | Relay |
| Type of electric connection | Screw connection |
| Type of output voltage | AC/DC |
| UPC | 612598207268 |
| Vibration | Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G |
| Voltage category | AC/DC normally open relay |
| Weight | 228 g |
| Width | 40.4 mm |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1762-OW8 |
| Product category | PLC CPUs & Systems |
| Country of origin | Malaysia |
| Published specifications | 57 attributes listed |
| Related part numbers | 16 other part numbers in this family |
