1762-OW16 Allen-Bradley MicroLogix 16 Point Relay Output Module
Allen-Bradley 1762-OW16 - PLCs & I/O - Width: 40.4 mm; Height: 90 mm; Weight: 285 g.
Overview
In our catalog, the 1762-OW16 from Allen-Bradley is listed under the PLCs & I/O category. The manufacturer's published data for this part number specifies Width: 40.4 mm and Height: 90 mm.
Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G
The specification set recorded for this part number covers Weight: 285 g; Operating Temperature: -20 to 65 °C; Storage Temperature: -40 °C; Lifecycle Status: Active (Mature); Depth: 87 mm; Altitude: 2000 m; Class: Progmable Logic Controller; Number of digital outputs: 16; Shock: Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G; Number Of Channels: 16 point; + output: 16 Point, Relay; Temperature Rating: -20…65 °C (-4…149 °F). See the Specifications tab on this page for the full technical table.
Specifications
| + output | 16 Point, Relay |
|---|---|
| Altitude | 2000 m |
| Bus current draw, max | 180mA @ 24V DC (4.32 W) |
| Class | Progmable Logic Controller |
| Conducted RF immunity | IEC 1000-4-6: 10V @ 0.15...80MHz |
| Continuous current per common, max | 8 A |
| Continuous current per module, max | 16 A |
| Continuous current per point, max | 2.5 A |
| Depth | 87 mm |
| Digital inputs configurable | false |
| digital output modules | 16 Point VAC/VDC Relay Output |
| Digital outputs configurable | false |
| EFT/B immunity | IEC1000-4-4: 2kV @ 5kHz |
| ESD immunity | IEC1000-4-2: 4kV contact, 8kV air, 4kV indirect |
| Hazardous environment class | Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Heat dissipation, max | 6.1 W |
| Height | 90 mm |
| I/O Isolation | Isolated |
| I/O Status Indication | LED |
| Isolated groups | Group 1: Outputs 0...7, Group 2: Outputs 8...15 |
| Lifecycle Status | Active (Mature) |
| Module Interfaces | relay output |
| Number Of Channels | 16 point |
| Number of digital outputs | 16 |
| Off-state leakage current, max | 0 mA |
| On-state current, min | 10 mA |
| Operating humidity | 5...95% noncondensing |
| Operating Temperature | -20 to 65 °C |
| Operating voltage | 5...265V AC |
| Output group to backplane isolation | Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (IEC Class 2 reinforced insulation) |
| Output group to output group isolation | Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (basic insulation), 150V AC working voltage (IEC Class 2 reinforced insulation) |
| Power supply distance rating | 6 (The module may not be more than 6 modules away from the power supply.) |
| Radiated and conducted emissions | EN50081-2: Class A |
| Radiated RF immunity | IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier |
| Redundancy | false |
| Relay output, break | 1.5A @ 120V AC |
| Relay output, break volt-ampere | 28VA @ 24V DC |
| Relay output, continuous | 2.5A @ 240V AC |
| Relay output, make | 7.5A @ 240V AC |
| Relay output, make volt-ampere | 28VA @ 24V DC |
| Shock | Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G |
| Short-circuit protection, outputs available | false |
| Signal delay, resistive load, max | On Delay: 10 ms Off Delay: 10 ms |
| Storage Temperature | -40 °C |
| Suitable for safety functions | false |
| Surge transient immunity | IEC1000-4-5: 2 kV common mode, 1 kV differential mode |
| Temperature Rating | -20…65 °C (-4…149 °F) |
| Time delay at signal exchange | 10 ms |
| Type of digital output | Relay |
| Type of electric connection | Screw connection |
| Type of output voltage | AC/DC |
| Vibration | Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G |
| Voltage category | AC/DC normally open relay |
| Weight | 285 g |
| Width | 40.4 mm |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1762-OW16 |
| Product category | PLC CPUs & Systems |
| Manufacturer lifecycle status | Active (Mature) |
| Published specifications | 55 attributes listed |
| Related part numbers | 8 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 1762-OW16 cost?
1762-OW16 is listed at CA$450.50 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 1762-OW16?
1762-OW16 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 1762-OW16?
Manufacturer lifecycle status on file for 1762-OW16: "Active (Mature)" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 1762-OW16 through the quote form on this page for pricing and availability.
What are the key specifications of 1762-OW16?
Key specifications include + output: 16 Point, Relay; Altitude: 2000 m; Bus current draw, max: 180mA @ 24V DC (4.32 W); Class: Progmable Logic Controller. The full specification table on this page lists every published attribute for this part.
How quickly can 1762-OW16 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley Allen-Bradley MicroLogix 32 Point Module 1762-OV32T
Allen-Bradley Allen-Bradley MicroLogix 1200 Real Time Clock 1762-RTC
Allen-Bradley Allen-Bradley MicroLogix 4 Point Analog Output Module 1762-OF4

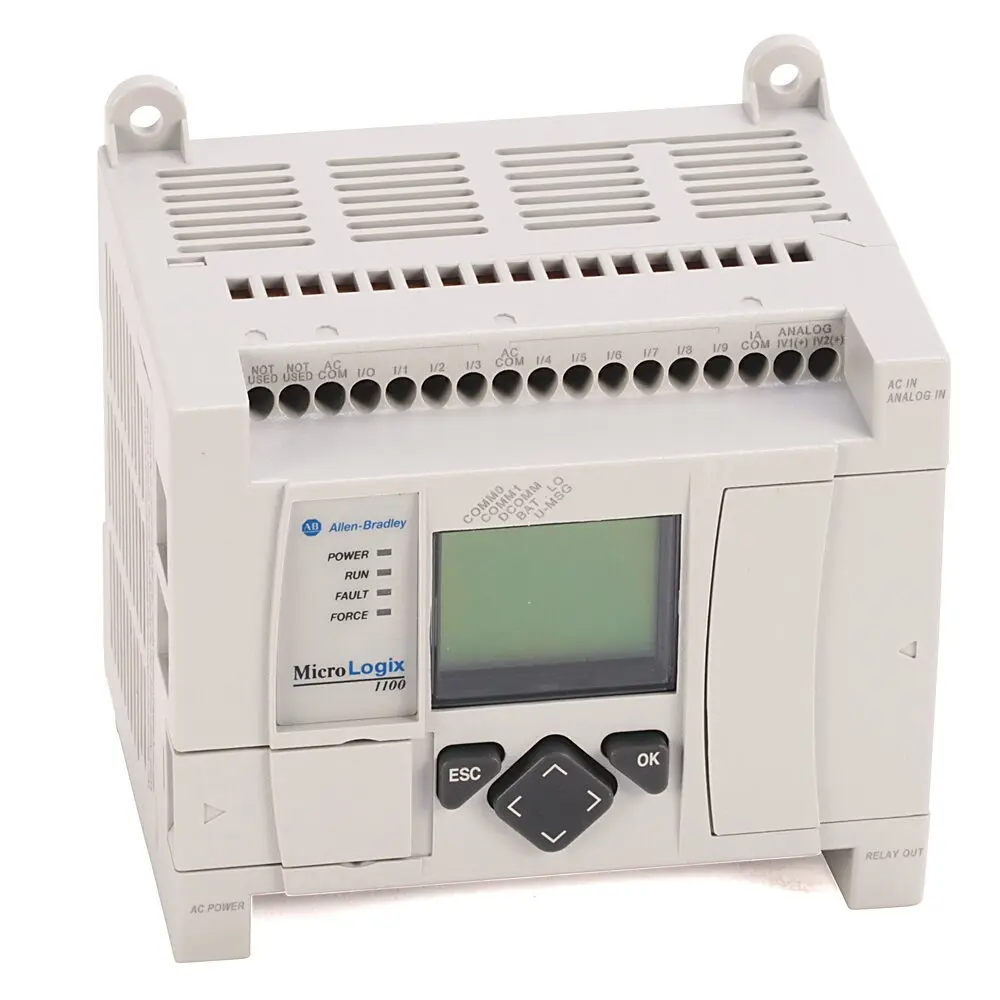

Allen-Bradley Allen-Bradley MicroLogix 1100 16 Point Controller 1763-L16BBB
