1762-IA8 Allen-Bradley MicroLogix 8-Point 120V AC Input Module New
Allen-Bradley 1762-IA8 - I/O Modules & Remote I/O - Width: 40.4 mm; Height: 90 mm; Weight: 209 g.
Overview
Allen-Bradley 1762-IA8 — I/O Modules & Remote I/O. Specs: Width: 40.4 mm · Height: 90 mm · Weight: 209 g · Operating Temperature: -20 to 65 °C · Altitude: 2000 m · Class: Progmable Logic Controller · Number of digital inputs: 8 · Number Of Channels: 8 Point. Quoted per order by KKM Solutions.
Specifications
| Altitude | 2000 m |
|---|---|
| Bus current draw, max | 50mA @ 5V DC (0.25 W) |
| Class | Progmable Logic Controller |
| Conducted RF immunity | IEC 1000-4-6: 10V @ 0.15...80MHz |
| Depth | 87 |
| digital input modules | 8 Point 120V AC Input Module |
| Digital inputs configurable | False |
| Digital outputs configurable | False |
| EFT/B immunity | IEC1000-4-4: 2kV @ 5kHz |
| ESD immunity | IEC1000-4-2: 4kV contact, 8kV air, 4kV indirect |
| Estimated Lead Time | 5 days |
| Hazardous environment class | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Heat dissipation, max | 2 W |
| Height | 90 mm |
| I/O Isolation | Isolated |
| I/O Status Indication | LED |
| IEC input compatibility | Type 1+ |
| Input group to backplane isolation | Verified by one of the following dielectric tests: 1517V AC @ 1s or 2145V DC @ 1s. 132V AC working voltage (IEC Class 2 reinforced insulation) |
| Inrush current, max | 250 mA |
| Isolated groups | Group 1: inputs 0...7 (internally connected commons) |
| Module Interfaces | Digital |
| Nominal Impedance | 12 kΩ @ 50 Hz |
| Number Of Channels | 8 Point |
| Number of commons | 1 |
| Number of digital inputs | 8 |
| Off-state current, max | 2.5 mA |
| Off-state voltage, max | 20V AC |
| ON-state current, max | 16.0mA @ 132V AC, 63 Hz |
| On-state current, min | 5.0mA @ 79V AC, 47 Hz |
| On-state current, nom | 12.0mA @ 120V AC, 60 Hz |
| On-state voltage, min | 79V...132V AC |
| Operating humidity | 5...95% noncondensing |
| Operating Temperature | -20 to 65 °C |
| Operating voltage | 79...132V AC @ 47...63Hz |
| Power supply distance rating | 6 (the module may not be more than 6 modules away from the system power supply) |
| Radiated and conducted emissions | EN50081-2: Class A |
| Radiated RF immunity | IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier |
| Redundancy | False |
| Shock | Operating: 30G panel mounted, 3 pulses per axis, Relay ops: 7G |
| Short-circuit protection, outputs available | False |
| Signal delay | On delay: 20.0 ms |
| Standard Warranty Duration | 1 year |
| Storage temperature, min | -40 °C |
| Suitable for safety functions | False |
| Surge transient immunity | IEC1000-4-5: 2 kV common mode, 1kV differential mode |
| Temperature Rating | 0…55 °C (32…131 °F) |
| Time delay at signal exchange | 20 ms |
| Type of electric connection | Screw connection |
| Type of voltage (input voltage) | AC |
| UPC | 612598207183 |
| Vibration | Operating: 10...500 Hz, 5 G, 0.015 in. maximum, peak-to-peak, 2 hr each axis, Relay ops: 1.5 G |
| Voltage category | 100/120V AC |
| Weight | 209 g |
| Width | 40.4 mm |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 1762-IA8 |
| KKM catalog reference | Allen-Bradley-1762-IA8 |
| Product category | I/O Modules & Remote I/O |
| Country of origin | Malaysia |
| Published specifications | 54 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 1762-IA8 cost?
1762-IA8 is listed at CA$256.17 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 1762-IA8?
1762-IA8 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 1762-IA8?
We do not hold a published lifecycle status for 1762-IA8. Allen-Bradley's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 1762-IA8?
Key specifications include Altitude: 2000 m; Bus current draw, max: 50mA @ 5V DC (0.25 W); Class: Progmable Logic Controller; Conducted RF immunity: IEC 1000-4-6: 10V @ 0.15...80MHz. The full specification table on this page lists every published attribute for this part.
How quickly can 1762-IA8 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley Allen-Bradley 1762-IF4 MicroLogix 4-Ch Current/Voltage Analog Input Module

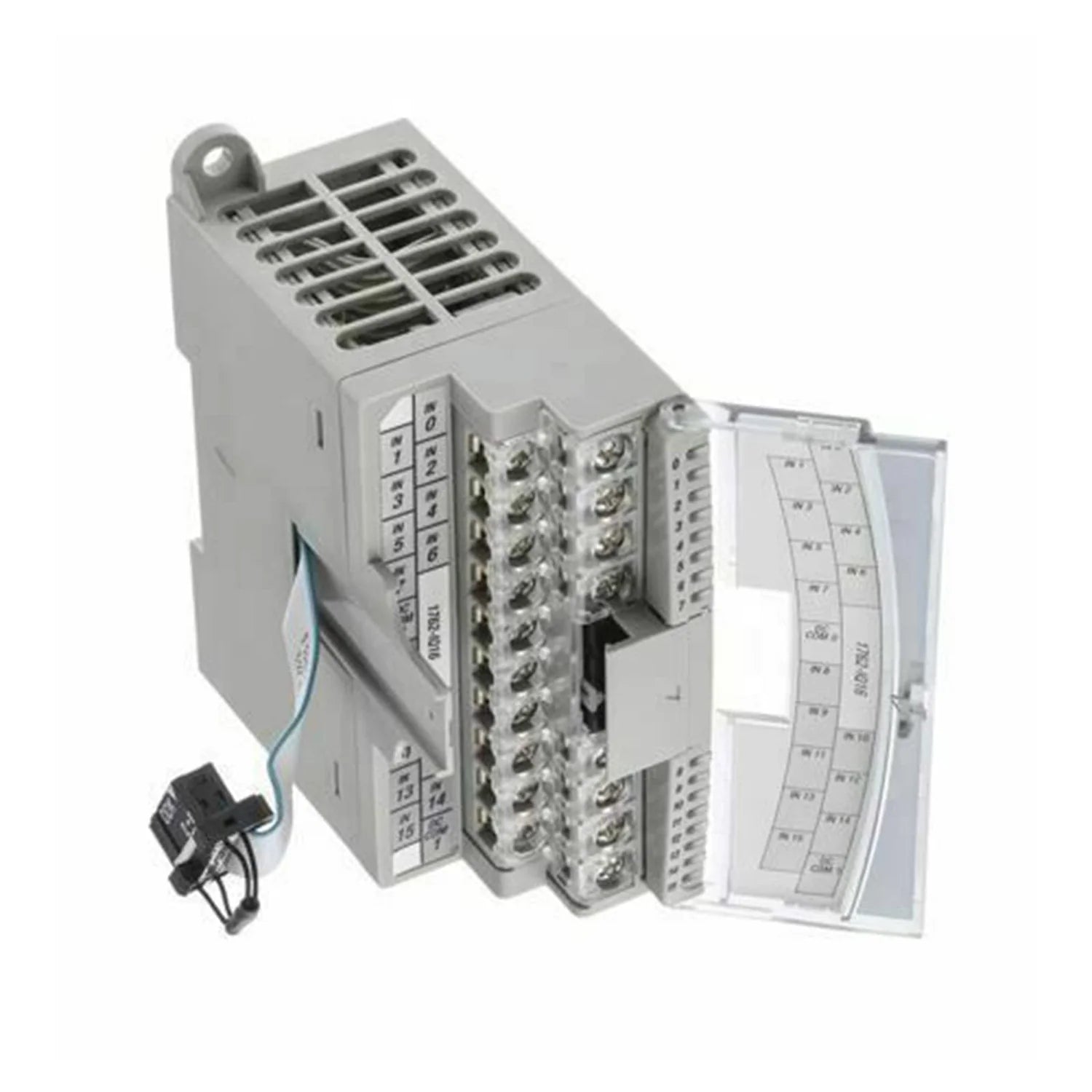

Allen-Bradley Allen-Bradley 1762-IQ16 MicroLogix 16 Point 24 VDC Sink/Source Input…

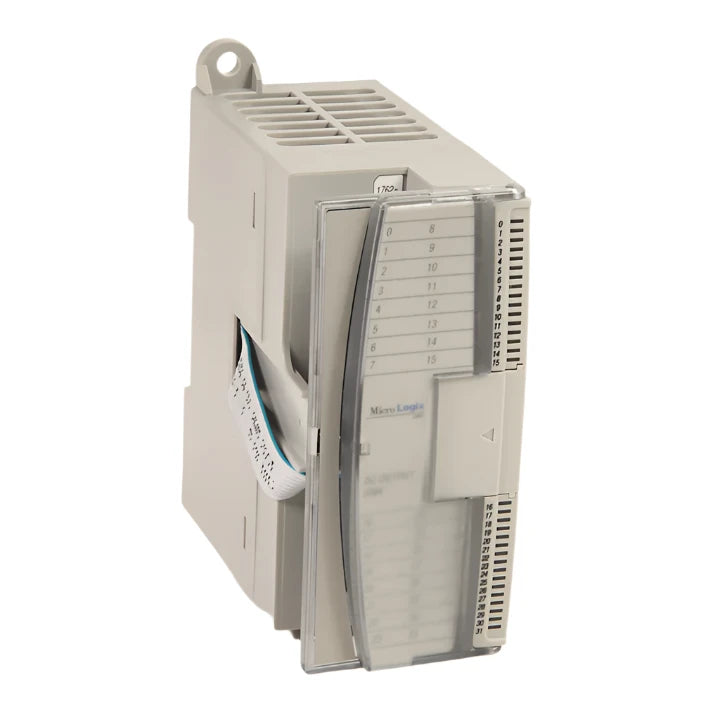

Allen-Bradley Allen-Bradley 1762-IQ32T MicroLogix Digital Input, 32-P, 24V DC Sink/Source
