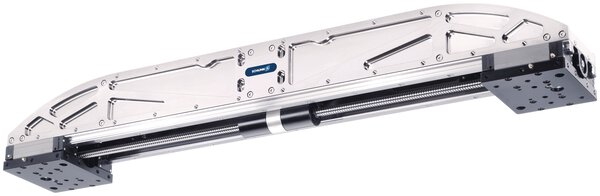

308060 — Schunk LEG 760-1-15-2-10X3-B
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 308060 - Parallel gripper - Weight (Kg): 7.9; Stroke per jaw [mm]: 281.0; Recommended workpiece weight [kg]: 5.25.
Overview
Part number 308060 from Schunk, listed in Pneumatic Grippers. Specifications on file: Closing time [s] 1.2; Height Z [mm] 107.5; IP protection class 20; Length X [mm] 760.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 308060 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 7.9 and Stroke per jaw [mm]: 281.0.
Published specifications for this part include Recommended workpiece weight [kg]: 5.25; Closing time [s]: 1.2; Opening time [s]: 1.2; Max. permissible finger length [mm]: 600.0; Max. permissible weight per finger [kg]: 10.0; IP protection class: 20; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 55.0; Repeat accuracy [mm]: 0.05; Length X [mm]: 760.0; Width Y [mm]: 112.0; Height Z [mm]: 107.5. See the Specifications tab on this page for the full technical table.
Specifications
| Closing time [s] | 1.2 |
|---|---|
| Height Z [mm] | 107.5 |
| IP protection class | 20 |
| Length X [mm] | 760.0 |
| Max. ambient temperature [°C] | 55.0 |
| Max. axial force Fz max. [N] | 1170.0 |
| Max. drive speed [1/min] | 4000.0 |
| Max. gripping force [N] | 1050.0 |
| Max. permissible finger length [mm] | 600.0 |
| Max. permissible speed (gripping) [mm/s] | 10.0 |
| Max. permissible speed (positioning) [mm/s] | 276.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. gripping force [N] | 300.0 |
| Moment Mx max. [Nm] | 75.0 |
| Moment My max. [Nm] | 242.0 |
| Moment Mz max. [Nm] | 149.0 |
| Motor moment required [Nm] | 1.0 |
| Opening time [s] | 1.2 |
| Repeat accuracy [mm] | 0.05 |
| Stroke per jaw [mm] | 281.0 |
| Width Y [mm] | 112.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 308060 |
| Product category | Pneumatic Grippers |
| Published specifications | 21 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 308060?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 308060?
308060 is made by Schunk and is listed in our Pneumatic Grippers category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 308060, and the quote confirms condition and lead time before you order.
Is the 308060 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 308060, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 308060?
No published lifecycle status is on file for 308060. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 308060?
Key specifications include Closing time [s]: 1.2; Height Z [mm]: 107.5; IP protection class: 20; Length X [mm]: 760.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 308060 rated for?
Per the published specification for 308060: Max. ambient temperature [°C]: 55.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 308060 ship?
Lead time for 308060 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products

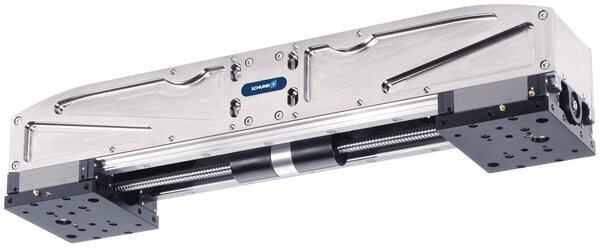

Schunk Schunk LEG 520-2-15-2-10X3-B
