308420 — Schunk GSW-B 50-P
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 308420 - Special Gripper - Weight (Kg): 0.2; Diameter D [mm]: 52.0; IP protection class: 40.
Overview
Part number 308420 from Schunk, listed in Pneumatic Grippers. Specifications on file: Diameter D [mm] 52.0; Height Z [mm] 66.0; IP protection class 40; Max. ambient temperature [°C] 90.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 308420 is part of the Special Gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.2 and Diameter D [mm]: 52.0.
The specification set recorded for this part number covers IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 90.0; Height Z [mm]: 66.0; Max. permissible RPM [1/min]: 20.0; Nominal operating pressure compressed air [bar]: 6.0; Minimum operating pressure compressed air [bar]: 4.0; Max. operating pressure of the compressed air [bar]: 8.0; Nominal operating pressure coolant [bar]: 40.0; Min. operating pressure coolant [bar]: 20.0; Max. operating pressure of the coolant [bar]: 50.0; Prepared for parallel grippers: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Diameter D [mm] | 52.0 |
|---|---|
| Height Z [mm] | 66.0 |
| IP protection class | 40 |
| Max. ambient temperature [°C] | 90.0 |
| Max. operating pressure of the compressed air [bar] | 8.0 |
| Max. operating pressure of the coolant [bar] | 50.0 |
| Max. permissible RPM [1/min] | 20.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure coolant [bar] | 20.0 |
| Minimum operating pressure compressed air [bar] | 4.0 |
| Nominal operating pressure compressed air [bar] | 6.0 |
| Nominal operating pressure coolant [bar] | 40.0 |
| Prepared for parallel grippers | yes |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 308420 |
| Product category | Pneumatic Grippers |
| Published specifications | 13 attributes listed |
| Related part numbers | 8 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 308420?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 308420?
308420 is made by Schunk and is listed in our Pneumatic Grippers category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 308420, and the quote confirms condition and lead time before you order.
Is the 308420 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 308420, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 308420?
No published lifecycle status is on file for 308420. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 308420?
Key specifications include Diameter D [mm]: 52.0; Height Z [mm]: 66.0; IP protection class: 40; Max. ambient temperature [°C]: 90.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 308420 rated for?
Per the published specification for 308420: Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 308420 ship?
Lead time for 308420 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products

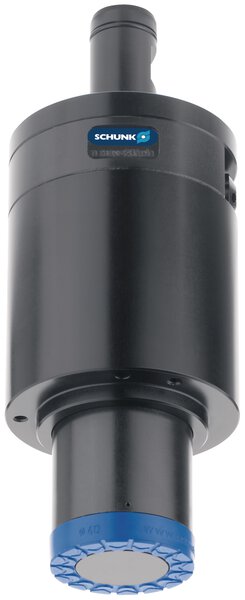

Schunk Schunk GSW-M 20

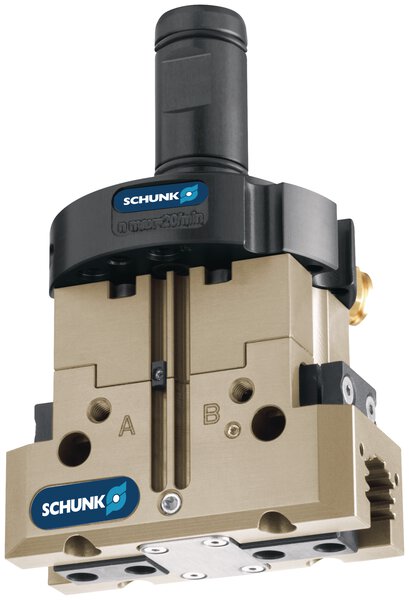

Schunk Schunk GSW-B 50-Z
