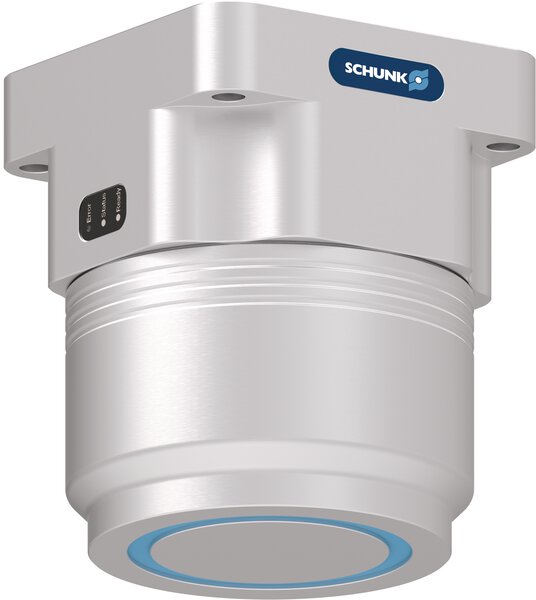

Schunk EMH-RP 114-B
Schunk 1351499 - Magnetic Gripper - Weight (Kg): 8.0; IP protection class: 52; Min. ambient temperature [°C]: 5.0.
In our catalog, the 1351499 from Schunk is listed under the Magnetic Gripper category. The manufacturer's published data for this part number specifies Weight (Kg): 8.0 and IP protection class: 52.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 50.0; Length X [mm]: 128.0; Width Y [mm]: 128.0; Height Z [mm]: 157.0; Controller electronics: integrated; Nominal voltage [V]: 24.0; Magnet area [cm²]: 81.97; Payload for horizontal magnet surface [kg]: 175.0; Payload for vertical magnet surface [kg]: 70.0; Module temperature increasement in case of 5 activations/minute [°C]: 20.0; Module temperature increasement in case of 15 activations/minute [°C]: 45.0. The complete technical table is shown in the Specifications tab on this page.
| Activation time [ms] | 900.0 |
|---|---|
| Controller electronics | integrated |
| Height Z [mm] | 157.0 |
| Holding force [N] | 10550.0 |
| IP protection class | 52 |
| Length X [mm] | 128.0 |
| Magnet area [cm²] | 81.97 |
| Max. ambient temperature [°C] | 50.0 |
| Max. current power [A] | 7.1 |
| Min. ambient temperature [°C] | 5.0 |
| Module temperature increasement in case of 15 activations/minute [°C] | 45.0 |
| Module temperature increasement in case of 5 activations/minute [°C] | 20.0 |
| Nominal voltage [V] | 24.0 |
| Payload for horizontal magnet surface [kg] | 175.0 |
| Payload for vertical magnet surface [kg] | 70.0 |
| Rated current logic [A] | 0.15 |
| Type of voltage | DC |
| Weight (Kg) | 8.0 |
| Width Y [mm] | 128.0 |
Frequently Asked Questions
How do I get pricing for 1351499?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1351499?
1351499 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1351499?
Key specifications include Activation time [ms]: 900.0; Controller electronics: integrated; Height Z [mm]: 157.0; Holding force [N]: 10550.0. The full specification table on this page lists every published attribute for this part.
How quickly can 1351499 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk EMH-RP 084-B

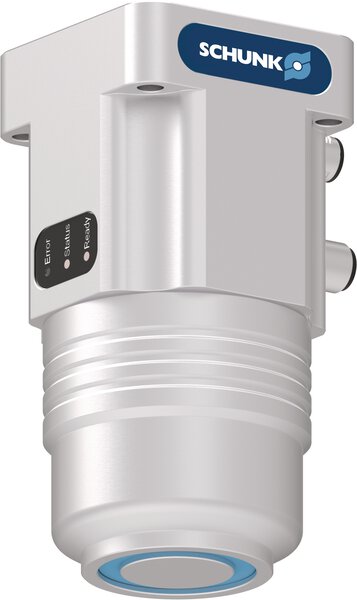

Schunk Schunk EMH-RP 045-B

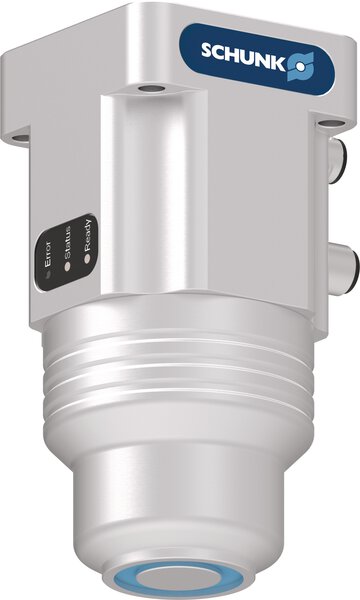

Schunk Schunk EMH-RP 036-B

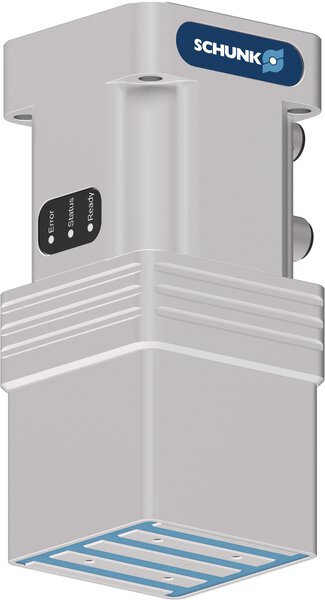

Schunk Schunk EMH-MP 060-B

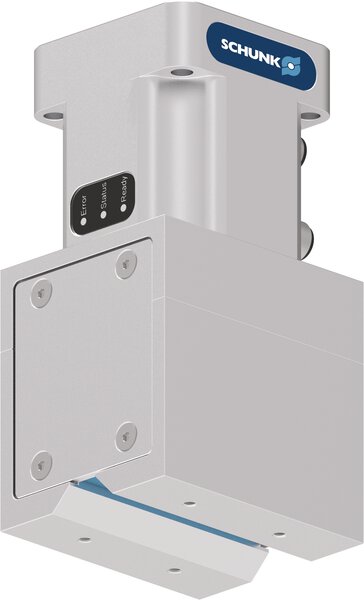

Schunk Schunk EMH-DP 080-B
