Schunk ERD 04-40-N-E-2
| Angle of rotation [°] | > 360 |
|---|---|
| Cleanroom class ISO 14644-1 | 2015 |
| Encoder system | Encoder (absolute) |
| Force Fx max. [N] | 150.0 |
| Force Fz max. [N] | 150.0 |
| Height Z [mm] | 139.0 |
| Intermediate circuit voltage [V] | 530.0 |
| IP protection class | 40 |
| Length X [mm] | 68.0 |
| Max Operating Pressure (bar) | 6.0 |
| Max. ambient temperature [°C] | 40.0 |
| Max. current [A] | 1.29 |
| Max. permissible mass moment of inertia [kgm²] | 0.008 |
| Max. rotational speed [1/min] | 600.0 |
| Min. ambient temperature [°C] | 10.0 |
| Moment My max. [Nm] | 2.5 |
| Nominal current [A] | 0.43 |
| Nominal torque [Nm] | 0.4 |
| Number of pneumatic feed-throughs | 2.0 |
| Output signal | EnDat 2.2 |
| Peak torque [Nm] | 1.2 |
| Repeat accuracy | 0.01 |
| SIL certification | 2 |
| Weight (Kg) | 1.2 |
| Width Y [mm] | 60.0 |
Frequently Asked Questions
How do I get pricing for 1630143?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1630143?
1630143 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1630143?
Key specifications include Angle of rotation [°]: > 360; Cleanroom class ISO 14644-1: 2015; Encoder system: Encoder (absolute); Force Fx max. [N]: 150.0. The full specification table on this page lists every published attribute for this part.
How quickly can 1630143 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk ERD 04-40-D-E-2
Schunk Schunk ERD 04-40-N-D-2-H1G
Schunk Schunk ERD 04-40-N-D-2

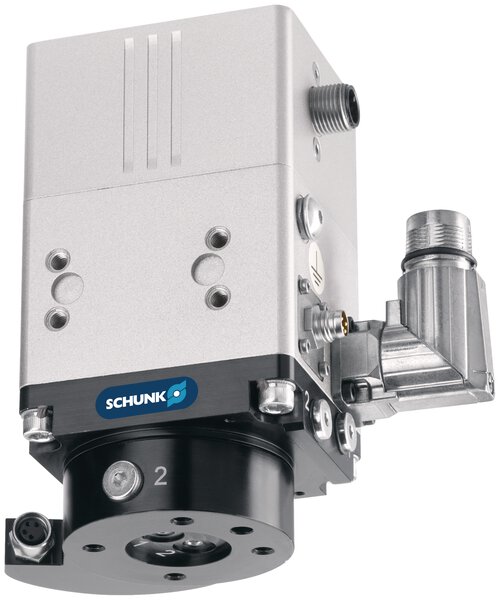

Schunk Schunk ERD 04-40-D-D-2-H1G
