1632134 — Schunk ERD 04-40-N-D-2-H1G
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 1632134 - Rotary Actuators - Output signal: DRIVE-CLiQ (via EnDat 2.2 + signal converter in cabled design); Weight (Kg): 1.2; Repeat accuracy: 0.01.
Overview
Part number 1632134 from Schunk, listed in Rotary Actuators. Specifications on file: Angle of rotation [°] > 360; Cleanroom class ISO 14644-1 2015; Encoder system Encoder (absolute); Force Fx max. [N] 150.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the Schunk 1632134, a part number in the Rotary Actuators category. The manufacturer's published data for this part number specifies Output signal: DRIVE-CLiQ (via EnDat 2.2 + signal converter in cabled design) and Weight (Kg): 1.2.
Key manufacturer data on file for this item includes Repeat accuracy: 0.01; Max Operating Pressure (bar): 6.0; IP protection class: 40; Min. ambient temperature [°C]: 10.0; Max. ambient temperature [°C]: 40.0; Cleanroom class ISO 14644-1: 2015; Length X [mm]: 68.0; Width Y [mm]: 60.0; Height Z [mm]: 139.0; Moment My max. [Nm]: 2.5; Nominal torque [Nm]: 0.4; Nominal current [A]: 0.43. See the Specifications tab on this page for the full technical table.
Specifications
| Angle of rotation [°] | > 360 |
|---|---|
| Cleanroom class ISO 14644-1 | 2015 |
| Encoder system | Encoder (absolute) |
| Force Fx max. [N] | 150.0 |
| Force Fz max. [N] | 150.0 |
| H1 grease version | yes |
| Height Z [mm] | 139.0 |
| Intermediate circuit voltage [V] | 530.0 |
| IP protection class | 40 |
| Length X [mm] | 68.0 |
| Max Operating Pressure (bar) | 6.0 |
| Max. ambient temperature [°C] | 40.0 |
| Max. current [A] | 1.29 |
| Max. permissible mass moment of inertia [kgm²] | 0.008 |
| Max. rotational speed [1/min] | 600.0 |
| Min. ambient temperature [°C] | 10.0 |
| Moment My max. [Nm] | 2.5 |
| Nominal current [A] | 0.43 |
| Nominal torque [Nm] | 0.4 |
| Number of pneumatic feed-throughs | 2.0 |
| Output signal | DRIVE-CLiQ (via EnDat 2.2 + signal converter in cabled design) |
| Peak torque [Nm] | 1.2 |
| Repeat accuracy | 0.01 |
| SIL certification | 2 |
| Width Y [mm] | 60.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1632134 |
| Product category | Rotary Actuators |
| Published specifications | 25 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1632134?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1632134?
1632134 is made by Schunk and is listed in our Rotary Actuators category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1632134, and the quote confirms condition and lead time before you order.
Is the 1632134 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1632134, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1632134?
No published lifecycle status is on file for 1632134. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1632134?
Key specifications include Angle of rotation [°]: > 360; Cleanroom class ISO 14644-1: 2015; Encoder system: Encoder (absolute); Force Fx max. [N]: 150.0. The full specification table on this page lists every published attribute for this part.
What voltage does 1632134 use?
Per the published specification for 1632134: Intermediate circuit voltage [V]: 530.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 1632134 rated for?
Per the published specification for 1632134: Max. ambient temperature [°C]: 40.0; Min. ambient temperature [°C]: 10.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1632134 ship?
Lead time for 1632134 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk ERD 04-40-N-E-2
Schunk Schunk ERD 04-40-D-D-2-H1G
Schunk Schunk ERD 04-40-D-E-2
Schunk Schunk ERD 04-40-D-E-2-H1G
Schunk Schunk ERD 04-40-N-D-2

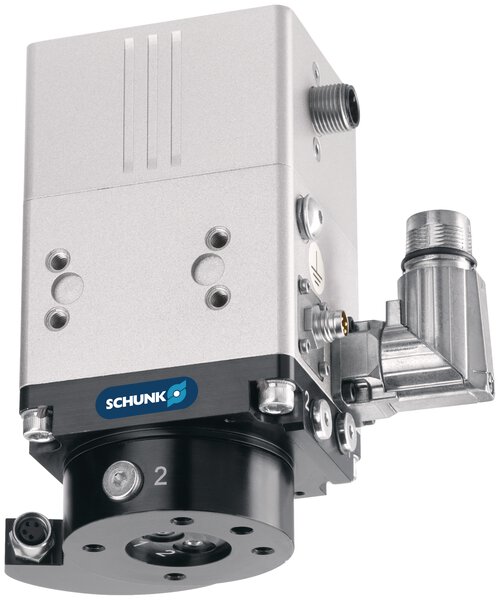

Schunk Schunk ERD 04-40-D-D-2
