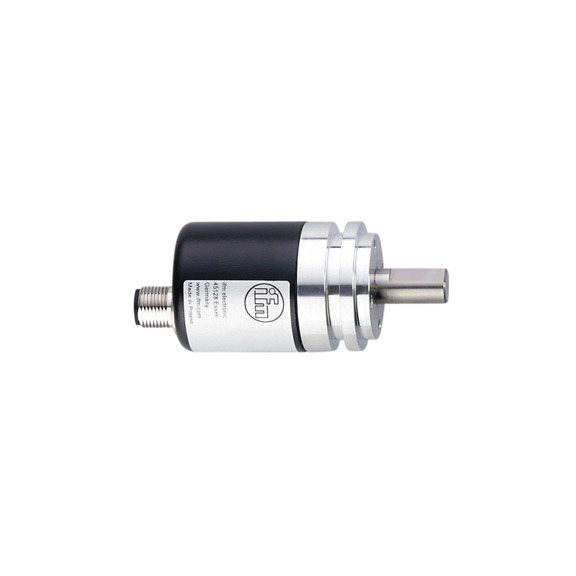

RM9003 IFM Absolute multiturn encoder with solid shaft
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM RM9003 - Absolute multiturn encoder with solid shaft - Material: flange: aluminum; housing cap: steel scratch-resistant cathodic dip coating; Ambient temperature: -40...85.
Overview
Part number RM9003 from IFM, listed in Rotary Encoders. Specifications on file: Accuracy 0.08; Ambient temperature -40...85; Code binary; Communication interface CAN. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM RM9003 is an Absolute multiturn encoder with solid shaft catalog item from IFM. The manufacturer's published data for this part number specifies Material: flange: aluminum; housing cap: steel scratch-resistant cathodic dip coating.
Direct output of the values via CANopen interface; High shock and vibration resistance
Key manufacturer data on file for this item includes Ambient temperature: -40...85; Protocol: CANopen; Shaft Diameter: 10; Connector: 1 x M12, axial; coding: A; Protection class: III; Dimensions: Ø 36.5 / L = 100; Product type: Absolute multiturn encoder with solid shaft; Accuracy: 0.08; Communication interface: CAN; Version: DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0; Operating voltage: 9...30 DC; Current consumption: < 100; ((10 V DC) ; ≤ 50 (24 V DC)). The complete technical table is shown in the Specifications tab on this page.
Specifications
| Accuracy | 0.08 |
|---|---|
| Ambient temperature | -40...85 |
| Code | binary |
| Communication interface | CAN |
| Connector | 1 x M12, axial; coding: A |
| Dimensions | Ø 36.5 / L = 100 |
| Fixing flange | Synchro-flange |
| Function principle | absolute |
| Housing | tubular |
| Key Features | Direct output of the values via CANopen interface; High shock and vibration resistance |
| Material | flange: aluminum; housing cap: steel scratch-resistant cathodic dip coating |
| Max. revolution, mechanical | 6000 |
| Max. shaft load axial (at the shaft end) | 180 |
| Max. shaft load radial (at the shaft end) | 180 |
| Max. starting torque | 0.05 |
| MTTF | 240 |
| Number of CAN interfaces | 1 |
| Operating voltage | 9...30 DC |
| Output function | CANopen interface |
| Pack quantity | 1 pcs. |
| Parameter setting options | CAN parameter; scaling; preset; Baud rate; Direction of rotation; node ID |
| Product type | Absolute multiturn encoder with solid shaft |
| Protection | IP 68; IP 69K |
| Protection class | III |
| Protocol | CANopen |
| Reference temperature torque | 20 |
| Resolution | 4096 steps; 4096 revolutions; 24 bit |
| Reverse polarity protection | yes |
| Revolution type | multiturn |
| Shaft design | solid shaft |
| Shaft Diameter | 10 |
| Short circuit protection | yes |
| Specification Summary | Multiturn solid shaft encoder; Shaft diameter 10 mm; Resolution 4096 steps; 4096 revolutions; 24 bit; CAN; M12 Connector |
| Terminating resistor | yes |
| Version | DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | RM9003 |
| Product category | Rotary Encoders |
| Published specifications | 35 attributes listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for RM9003?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the RM9003?
RM9003 is made by IFM and is listed in our Rotary Encoders category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number RM9003, and the quote confirms condition and lead time before you order.
Is the RM9003 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the RM9003, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of RM9003?
No published lifecycle status is on file for RM9003. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of RM9003?
Key specifications include Accuracy: 0.08; Ambient temperature: -40...85; Code: binary; Communication interface: CAN. The full specification table on this page lists every published attribute for this part.
What is the bore size of RM9003?
Per the published specification for RM9003: Shaft Diameter: 10. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What voltage does RM9003 use?
Per the published specification for RM9003: Operating voltage: 9...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is RM9003 made of?
Per the published specification for RM9003: Material: flange: aluminum; housing cap: steel scratch-resistant cathodic dip coating. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can RM9003 ship?
Lead time for RM9003 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
