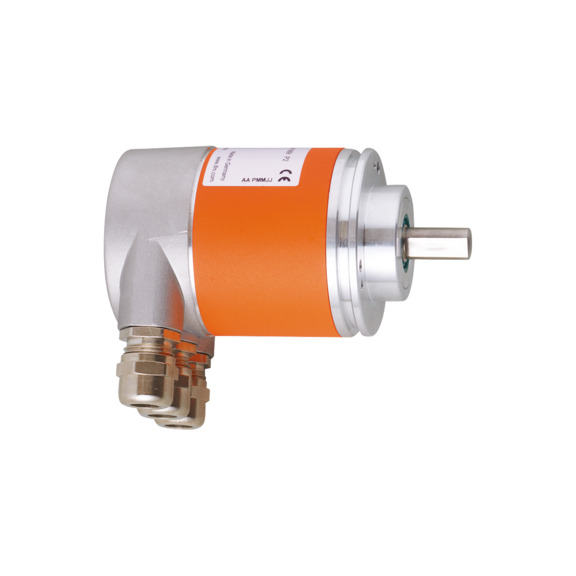

RM7013 IFM Absolute multiturn encoder with solid shaft
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM RM7013 - Absolute multiturn encoder with solid shaft - Material: housing cap: aluminum; housing: steel; Ambient temperature: -40...85.
Overview
Part number RM7013 from IFM, listed in Rotary Encoders. Specifications on file: Ambient temperature -40...85; Code binary; Communication interface DeviceNet; Current consumption 230; ((10 V DC); 100 (24 V DC)). KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM RM7013 is an Absolute multiturn encoder with solid shaft catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing cap: aluminum; housing: steel.
For precise position, speed, angular and linear measurement; Direct output of the values via DeviceNet interface; Robust housing for use in harsh industrial environments; High shock and vibration resistance; Easy wiring and programming
Key manufacturer data on file for this item includes Ambient temperature: -40...85; Protocol: CIP (Common Industrial Protocol); Shaft Diameter: 10; Dimensions: Ø 58 / L = 110; Product type: Absolute multiturn encoder with solid shaft; Communication interface: DeviceNet; Operating voltage: 10...30 DC; Current consumption: 230; ((10 V DC); 100 (24 V DC)); Reverse polarity protection: yes; Resolution: 8192 steps; 4096 revolutions; 25 bit; Code: binary; Housing: tubular. See the Specifications tab on this page for the full technical table.
Specifications
| Addressing | address selector switch; 0...99; Terminating resistor |
|---|---|
| Ambient temperature | -40...85 |
| Code | binary |
| Communication interface | DeviceNet |
| Current consumption | 230; ((10 V DC); 100 (24 V DC)) |
| Dimensions | Ø 58 / L = 110 |
| Fixing flange | Clamping flange |
| Function principle | absolute |
| Housing | tubular |
| Key Features | For precise position, speed, angular and linear measurement; Direct output of the values via DeviceNet interface; Robust housing for use in harsh industrial environments; High shock and vibration resistance; Easy wiring and programming |
| Material | housing cap: aluminum; housing: steel |
| Max. relative air humidity | 98 |
| Max. revolution, mechanical | 12000 |
| Max. shaft load axial (at the shaft end) | 40 |
| Max. shaft load radial (at the shaft end) | 110 |
| MTTF | 13 |
| Operating voltage | 10...30 DC |
| Pack quantity | 1 pcs. |
| Parameter setting options | resolution per revolution; total resolution; Direction of rotation; preset value; Type of operation; MAC ID; Baud rate |
| Product type | Absolute multiturn encoder with solid shaft |
| Protection | IP 67 |
| Protocol | CIP (Common Industrial Protocol) |
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
| Reverse polarity protection | yes |
| Revolution type | multiturn |
| Shaft design | solid shaft |
| Shaft Diameter | 10 |
| Short circuit protection | yes |
| Specification Summary | Multiturn solid shaft encoder; Shaft diameter 10 mm; DeviceNet; Terminal strip in the terminal chamber |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | RM7013 |
| Product category | Rotary Encoders |
| Published specifications | 29 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for RM7013?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the RM7013?
RM7013 is made by IFM and is listed in our Rotary Encoders category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number RM7013, and the quote confirms condition and lead time before you order.
Is the RM7013 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the RM7013, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of RM7013?
No published lifecycle status is on file for RM7013. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of RM7013?
Key specifications include Addressing: address selector switch; 0...99; Terminating resistor; Ambient temperature: -40...85; Code: binary; Communication interface: DeviceNet. The full specification table on this page lists every published attribute for this part.
What is the bore size of RM7013?
Per the published specification for RM7013: Shaft Diameter: 10. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What voltage does RM7013 use?
Per the published specification for RM7013: Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is RM7013 made of?
Per the published specification for RM7013: Material: housing cap: aluminum; housing: steel. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can RM7013 ship?
Lead time for RM7013 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
