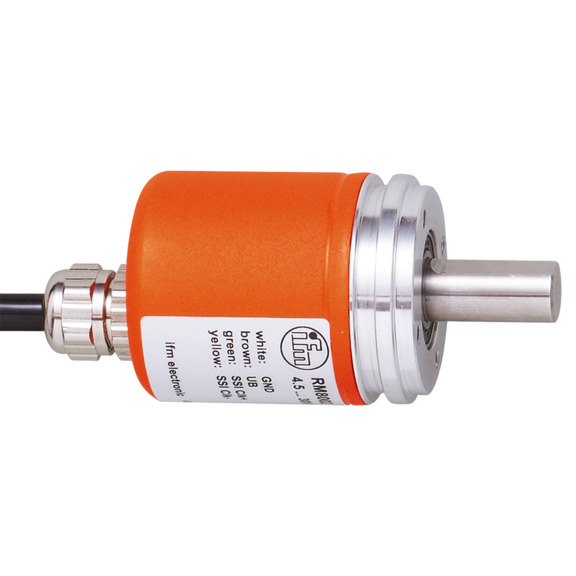

RM8002 IFM Absolute multiturn encoder with solid shaft
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM RM8002 - Absolute multiturn encoder with solid shaft - Material: flange: aluminum; housing: steel powder-coated; Ambient temperature: -40...85.
Overview
Part number RM8002 from IFM, listed in Rotary Encoders. Specifications on file: Ambient temperature -40...85; Communication interface SSI data interface; Dimensions Ø 36.5 / L = 79; Fixing flange Ø 36.5 mm. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM RM8002 is an Absolute multiturn encoder with solid shaft catalog item from IFM. The manufacturer's published data for this part number specifies Material: flange: aluminum; housing: steel powder-coated.
Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.)
Key manufacturer data on file for this item includes Ambient temperature: -40...85; Shaft Diameter: 10; Dimensions: Ø 36.5 / L = 79; Product type: Absolute multiturn encoder with solid shaft; Cable: 2 m, PUR; Maximum cable length: 100 m; axial; Communication interface: SSI data interface; Operating voltage: 4.5...30 DC; Current consumption: < 30; Resolution: 4096 resolution; 8192 revolutions; 25 bit; Inputs: reversal of direction of rotation; reset to zero; Code: Gray code; (increasing code values when turned clockwise (seen on the shaft)); Housing: tubular. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Cable | 2 m, PUR; Maximum cable length: 100 m; axial |
| Code | Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal | Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
| Communication interface | SSI data interface |
| Dimensions | Ø 36.5 / L = 79 |
| Fixing flange | Ø 36.5 mm |
| Function principle | absolute |
| Housing | tubular |
| Inputs | reversal of direction of rotation; reset to zero |
| Key Features | For precise position, speed, angular and linear measurement; Direct output of the values via SSI interface; Robust housing for use in harsh industrial environments; High shock and vibration resistance; Easy wiring and programming |
| Material | flange: aluminum; housing: steel powder-coated |
| Max. relative air humidity | 98 |
| Max. revolution, mechanical | 12000 |
| Max. shaft load axial (at the shaft end) | 40 |
| Max. shaft load radial (at the shaft end) | 110 |
| Max. starting torque | 0.03 |
| MTTF | 350 |
| Operating voltage | 4.5...30 DC |
| Pack quantity | 1 pcs. |
| Product type | Absolute multiturn encoder with solid shaft |
| Protection | IP 65 |
| Reference temperature torque | 25 |
| Resolution | 4096 resolution; 8192 revolutions; 25 bit |
| Revolution type | multiturn |
| Shaft design | solid shaft |
| Shaft Diameter | 10 |
| Specification Summary | Multiturn solid shaft encoder; Shaft diameter 10 mm; Resolution 4096; SSI data interface; 2 m PUR-Cable |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | RM8002 |
| Product category | Rotary Encoders |
| Published specifications | 28 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for RM8002?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the RM8002?
RM8002 is made by IFM and is listed in our Rotary Encoders category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number RM8002, and the quote confirms condition and lead time before you order.
Is the RM8002 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the RM8002, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of RM8002?
No published lifecycle status is on file for RM8002. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of RM8002?
Key specifications include Ambient temperature: -40...85; Cable: 2 m, PUR; Maximum cable length: 100 m; axial; Code: Gray code; (increasing code values when turned clockwise (seen on the shaft)); Code signal: Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.). The full specification table on this page lists every published attribute for this part.
What is the bore size of RM8002?
Per the published specification for RM8002: Shaft Diameter: 10. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What voltage does RM8002 use?
Per the published specification for RM8002: Operating voltage: 4.5...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is RM8002 made of?
Per the published specification for RM8002: Material: flange: aluminum; housing: steel powder-coated. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can RM8002 ship?
Lead time for RM8002 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
