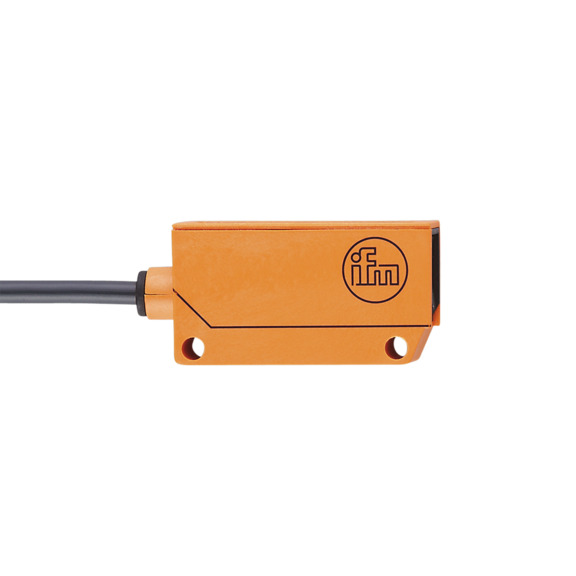

OU5012 IFM Retro-reflective sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM OU5012 - Retro-reflective sensor - Material: housing: PPO modified; Ambient temperature: -25...80.
Overview
Part number OU5012 from IFM, listed in Photoelectric Sensors. Specifications on file: Ambient temperature -25...80; Application Industrial applications; Cable 2 m, PVC; 3 x 0.34 mm²; Current consumption 35; ((24 V)). KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM OU5012 is part of the Retro-reflective sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: PPO modified.
Very long range; Intuitive setting of the sensitivity via potentiometer; Compact housing for use where space is restricted; Clearly visible indication of the switching status; Large operating voltage range
The specification set recorded for this part number covers Ambient temperature: -25...80; Protection class: II; Dimensions: 28 x 16 x 51; Application: Industrial applications; Product type: Retro-reflective sensor; Number Of Channels: 1; Cable: 2 m, PVC; 3 x 0.34 mm²; Operating voltage: 10...55 DC; Current consumption: 35; ((24 V)); Reverse polarity protection: yes; Overload protection: yes; Output function: dark-on mode. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...80 |
|---|---|
| Application | Industrial applications |
| Cable | 2 m, PVC; 3 x 0.34 mm² |
| Current consumption | 35; ((24 V)) |
| Dimensions | 28 x 16 x 51 |
| Electrical design | PNP |
| Function principle | Retro-reflective sensor |
| Housing | rectangular |
| Key Features | Very long range; Intuitive setting of the sensitivity via potentiometer; Compact housing for use where space is restricted; Clearly visible indication of the switching status; Large operating voltage range |
| Light spot dimensions refer to | at maximum range |
| Material | housing: PPO modified |
| Max. light spot diameter | 262 |
| Max. voltage drop switching output DC | 2.5 |
| MTTF | 694 |
| Number Of Channels | 1 |
| Operating voltage | 10...55 DC |
| Output function | dark-on mode |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Retro-reflective sensor |
| Protection | IP 67 |
| Protection class | II |
| Range adjustable | yes |
| Range referred to prismatic reflector | 0.15...3; (Prismatic reflector Ø 80 E20005) |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Retro-reflective sensor; Infrared light; dark-on mode; PNP; 3 m; IP 67; 2 m PVC-Cable |
| Switching frequency DC | 160 |
| Type of light | Infrared light |
| Type of short-circuit protection | yes (non-latching) |
| Wave length | 950 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | OU5012 |
| Product category | Photoelectric Sensors |
| Published specifications | 32 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for OU5012?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OU5012?
OU5012 is made by IFM and is listed in our Photoelectric Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number OU5012, and the quote confirms condition and lead time before you order.
Is the OU5012 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the OU5012, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of OU5012?
No published lifecycle status is on file for OU5012. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of OU5012?
Key specifications include Ambient temperature: -25...80; Application: Industrial applications; Cable: 2 m, PVC; 3 x 0.34 mm²; Current consumption: 35; ((24 V)). The full specification table on this page lists every published attribute for this part.
What voltage does OU5012 use?
Per the published specification for OU5012: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...55 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of OU5012?
Per the published specification for OU5012: Permanent current rating of switching output DC: 250. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is OU5012 made of?
Per the published specification for OU5012: Material: housing: PPO modified. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can OU5012 ship?
Lead time for OU5012 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
