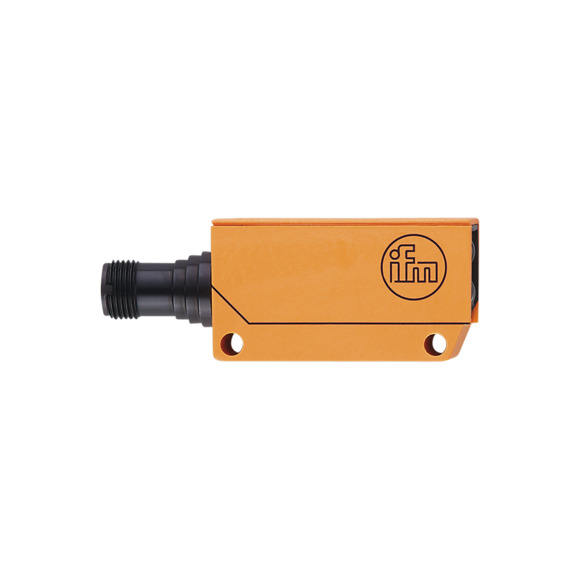

OU5080 IFM Retro-reflective sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM OU5080 - Retro-reflective sensor - Material: housing: PPO modified; Ambient temperature: -25...60.
Overview
Part number OU5080 from IFM, listed in Photoelectric Sensors. Specifications on file: Ambient temperature -25...60; Application Industrial applications; Connector 1 x M12; coding: A; Contacts: 4; Current consumption 30; ((24 V)). KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the OU5080 from IFM is listed under the Retro-reflective sensor category. The manufacturer's published data for this part number specifies Material: housing: PPO modified.
Very long range; Intuitive setting of the sensitivity via potentiometer; Compact housing for use where space is restricted; Clearly visible indication of the switching status; Large operating voltage range
Published specifications for this part include Ambient temperature: -25...60; Connector: 1 x M12; coding: A; Contacts: 4; Protection class: III; Dimensions: 28 x 16 x 51; Application: Industrial applications; Product type: Retro-reflective sensor; Number Of Channels: 1; Operating voltage: 10...55 DC; (cULus - Class 2 source required); Current consumption: 30; ((24 V)); Reverse polarity protection: yes; Overload protection: yes; Special Feature: polarization filter. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...60 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Current consumption | 30; ((24 V)) |
| Dimensions | 28 x 16 x 51 |
| Electrical design | PNP |
| Function principle | Retro-reflective sensor |
| Housing | rectangular |
| Key Features | Very long range; Intuitive setting of the sensitivity via potentiometer; Compact housing for use where space is restricted; Clearly visible indication of the switching status; Large operating voltage range |
| Light spot dimensions refer to | at maximum range |
| Material | housing: PPO modified |
| Max. light spot diameter | 475 |
| Max. voltage drop switching output DC | 2.5 |
| MTTF | 687 |
| Number Of Channels | 1 |
| Operating voltage | 10...55 DC; (cULus - Class 2 source required) |
| Output function | light-on mode |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Polarization filter available | yes |
| Product type | Retro-reflective sensor |
| Protection | IP 67 |
| Protection class | III |
| Range adjustable | yes |
| Range referred to prismatic reflector | 0.15...1.5; (Prismatic reflector Ø 80 E20005) |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Special Feature | polarization filter |
| Specification Summary | Retro-reflective sensor; red light; light-on mode; PNP; 1.5 m; IP 67; M12 Connector |
| Switching frequency DC | 160 |
| Type of light | red light |
| Type of short-circuit protection | yes (non-latching) |
| Wave length | 660 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | OU5080 |
| Product category | Photoelectric Sensors |
| Published specifications | 34 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for OU5080?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OU5080?
OU5080 is made by IFM and is listed in our Photoelectric Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number OU5080, and the quote confirms condition and lead time before you order.
Is the OU5080 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the OU5080, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of OU5080?
No published lifecycle status is on file for OU5080. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of OU5080?
Key specifications include Ambient temperature: -25...60; Application: Industrial applications; Connector: 1 x M12; coding: A; Contacts: 4; Current consumption: 30; ((24 V)). The full specification table on this page lists every published attribute for this part.
What voltage does OU5080 use?
Per the published specification for OU5080: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...55 DC; (cULus - Class 2 source required). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of OU5080?
Per the published specification for OU5080: Permanent current rating of switching output DC: 250. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is OU5080 made of?
Per the published specification for OU5080: Material: housing: PPO modified. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can OU5080 ship?
Lead time for OU5080 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
