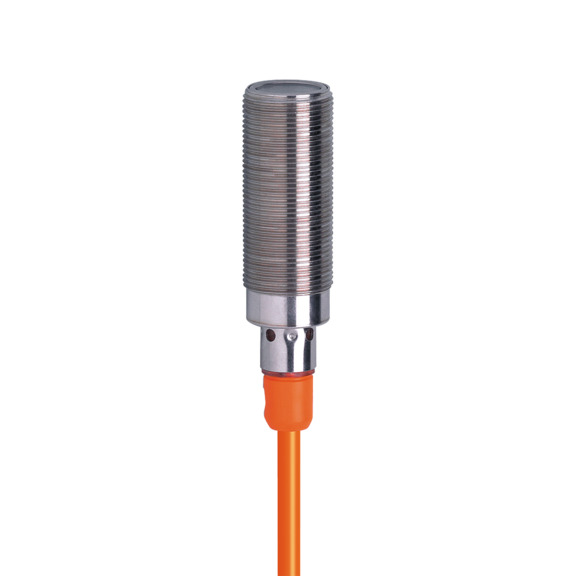

OGS301 IFM Through-beam sensor transmitter
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM OGS301 - Through-beam sensor transmitter - Material: housing: stainless steel (1.4404 / 316L); sealing: EPDM; Ambient temperature: -25...80.
Overview
Part number OGS301 from IFM, listed in Photoelectric Sensors. Specifications on file: Ambient temperature -25...80; Application food and beverage industry; Cable 6 m, PVC; 3 x 0.34 mm²; Current consumption 15. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM OGS301 is part of the Through-beam sensor transmitter range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: stainless steel (1.4404 / 316L); sealing: EPDM.
Robust stainless steel housing for use in the food industry; Resistant to high-pressure cleaning with aggressive cleaning agents; High protection rating for the requirements of harsh industrial environments; Ready for operation immediately thanks to fixed setting; Very long range
The specification set recorded for this part number covers Ambient temperature: -25...80; Protection class: II; Dimensions: M18 x 1 / L = 68.6; Application: food and beverage industry; Product type: Through-beam sensor transmitter; Cable: 6 m, PVC; 3 x 0.34 mm²; Operating voltage: 10...36 DC; Current consumption: 15; Reverse polarity protection: yes; Range: < 20; Housing: Threaded type; Type of light: red light. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...80 |
|---|---|
| Application | food and beverage industry |
| Cable | 6 m, PVC; 3 x 0.34 mm² |
| Current consumption | 15 |
| Dimensions | M18 x 1 / L = 68.6 |
| Function principle | Through-beam sensor |
| Housing | Threaded type |
| Key Features | Robust stainless steel housing for use in the food industry; Resistant to high-pressure cleaning with aggressive cleaning agents; High protection rating for the requirements of harsh industrial environments; Ready for operation immediately thanks to fixed setting; Very long range |
| Light spot dimensions refer to | at maximum range |
| Material | housing: stainless steel (1.4404 / 316L); sealing: EPDM |
| Max. light spot diameter | 800 |
| MTTF | 755 |
| Operating voltage | 10...36 DC |
| Pack quantity | 1 pcs. |
| Product type | Through-beam sensor transmitter |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Protection class | II |
| Range adjustable | no |
| Reverse polarity protection | yes |
| Specification Summary | Through-beam sensor; red light; 20 m; IP 65; IP 67; IP 68; IP 69K; 6 m PVC-Cable |
| Thread designation | M18 x 1 |
| Transmitter / receiver | transmitter |
| Type of light | red light |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | OGS301 |
| Product category | Photoelectric Sensors |
| Published specifications | 23 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for OGS301?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OGS301?
OGS301 is made by IFM and is listed in our Photoelectric Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number OGS301, and the quote confirms condition and lead time before you order.
Is the OGS301 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the OGS301, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of OGS301?
No published lifecycle status is on file for OGS301. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of OGS301?
Key specifications include Ambient temperature: -25...80; Application: food and beverage industry; Cable: 6 m, PVC; 3 x 0.34 mm²; Current consumption: 15. The full specification table on this page lists every published attribute for this part.
What voltage does OGS301 use?
Per the published specification for OGS301: Operating voltage: 10...36 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does OGS301 use?
Per the published specification for OGS301: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is OGS301 made of?
Per the published specification for OGS301: Material: housing: stainless steel (1.4404 / 316L); sealing: EPDM. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can OGS301 ship?
Lead time for OGS301 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
