Inductive sensor - IS6001
IFM IS6001 - Inductive sensor - Material: housing: PPS orange; LED window: PPSU; Weight: 11.5; Ambient temperature: -40...85.
This listing covers the IFM IS6001, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PPS orange; LED window: PPSU and Weight: 11.5.
Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Wide operating temperature range; Clearly visible indication of the switching status
The specification set recorded for this part number covers Ambient temperature: -40...85; Connector: 1 x M8; coding: A; Contacts: gold-plated; Tightening torque: < 0.5; (with washer); Protection class: III; Dimensions: 34.8 x 10.2 x 16; Application: Industrial applications; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...30 DC; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 6. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -40...85 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M8; coding: A; Contacts: gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | < 20 |
| Dimensions | 34.8 x 10.2 x 16 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...20 |
| Increased sensing range | yes |
| Key Features | Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Wide operating temperature range; Clearly visible indication of the switching status |
| Material | housing: PPS orange; LED window: PPSU |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1096 |
| Operating distance | 0...4.86 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 66; IP 67; IP 68 |
| Protection class | III |
| Real sensing range Sr | 6 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 6 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; 34.8 x 10.2 x 16 mm; Sensing range 6 mm non-flush mountable; normally open; DC; PNP; M8 Connector; IP 65; IP 66; IP 67; IP 68; 3-wire; Ambient temperature -40...85 °C; Switching frequency 600 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 600 |
| Tightening torque | < 0.5; (with washer) |
| Weight | 11.5 |
Frequently Asked Questions
How do I get pricing for IS6001?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IS6001?
IS6001 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IS6001?
Key specifications include Ambient temperature: -40...85; Application: Industrial applications; Connector: 1 x M8; coding: A; Contacts: gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can IS6001 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IS6000
IFM Inductive sensor - IS6003

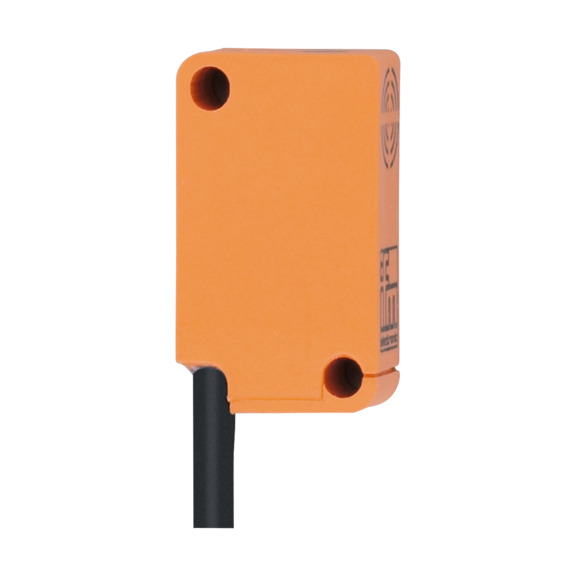

IFM Inductive sensor - IS5077
