Inductive sensor - IV5007
IFM IV5007 - Inductive sensor - Material: housing: PBT; Weight: 371.6; Ambient temperature: -25...70.
This listing covers the IFM IV5007, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT and Weight: 371.6.
Five selectable positions of the sensing face; Long sensing range minimizes physical damage; Robust housing for use in harsh industrial environments; For use in materials handling; LED display for switching status and operation
The specification set recorded for this part number covers Ambient temperature: -25...70; Terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5; Protection class: II; Dimensions: 55 x 55 x 128; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...60 DC; Current consumption: 20; (24 V); Reverse polarity protection: yes; Sensing range: 40; Overload protection: yes; Output function: normally open. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...70 |
|---|---|
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 20; (24 V) |
| Dimensions | 55 x 55 x 128 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Five selectable positions of the sensing face; Long sensing range minimizes physical damage; Robust housing for use in harsh industrial environments; For use in materials handling; LED display for switching status and operation |
| Material | housing: PBT |
| Max. voltage drop switching output DC | 3 |
| Mounting | non-flush mountable |
| Operating distance | 0...32.4 |
| Operating voltage | 10...60 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 40 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 40 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 55 x 55 x 128 mm; Sensing range 40 mm non-flush mountable; normally open; DC; PNP; terminals: ...2,5 mm²; Cable sheath: Ø 7...13 mm; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Terminals | ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 371.6 |
Frequently Asked Questions
How do I get pricing for IV5007?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IV5007?
IV5007 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IV5007?
Key specifications include Ambient temperature: -25...70; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Current consumption: 20; (24 V); Dimensions: 55 x 55 x 128. The full specification table on this page lists every published attribute for this part.
How quickly can IV5007 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

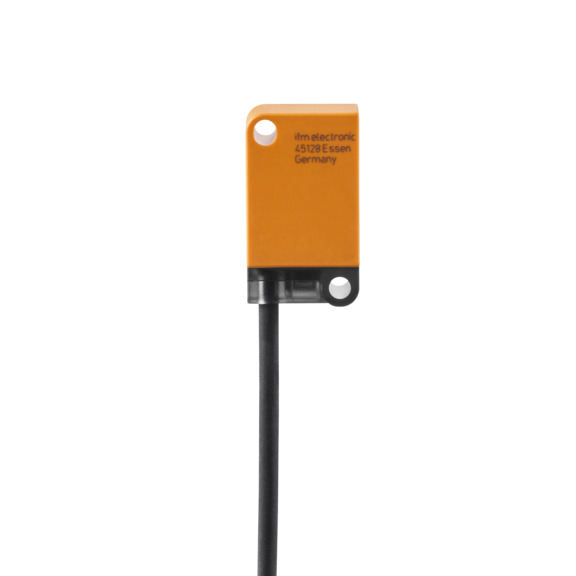

IFM Inductive sensor - IS6003
IFM Inductive sensor - IV5011
IFM Inductive sensor - IV5025

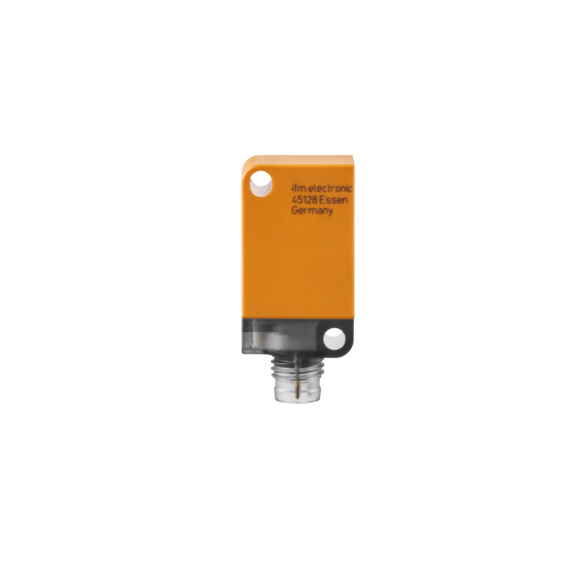

IFM Inductive sensor - IS6001
