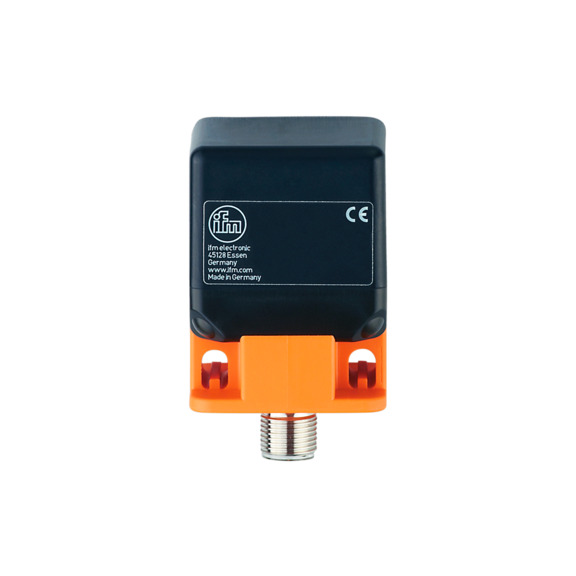

Inductive sensor - IM5120
IFM IM5120 - Inductive sensor - Weight: 134; Ambient temperature: -25...70; Protection class: II.
This listing covers the IFM IM5120, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 134 and Ambient temperature: -25...70.
housing: PA weld coated; sensing face: PA black weld coated; bevelled housing part: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)
Key manufacturer data on file for this item includes Protection class: II; Dimensions: 40 x 40 x 54; Application: Inductive sensors for welding applications; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...36 DC; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 35; Overload protection: yes; Special Feature: correction factor = 1; Magnetic-field immune; Output function: normally open. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...70 |
|---|---|
| Application | Inductive sensors for welding applications |
| Connector | 1 x M12; coding: A; Contacts: 4; Locking: locking, rotatable, stainless steel (1.4404 / 316L) |
| Correction factor | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 |
| Correction factor = 1 | yes |
| Current consumption | < 20 |
| Dimensions | 40 x 40 x 54 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...20 |
| Key Features | Magnetic-field immune for welding applications; Weld slag resistant coating; Five selectable positions of the sensing face; Long sensing range for use in conveying; Correction factor K=1: Constant sensing range on all metals |
| Magnetic field immune | yes |
| Material | housing: PA weld coated; sensing face: PA black weld coated; bevelled housing part: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu) |
| Max. electromagnetic field immunity | 300 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1161 |
| Operating distance | 0...28.3 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 35 ± 10 % |
| Reverse polarity protection | yes |
| Sensing face | 5 positions selectable |
| Sensing range | 35 |
| Short circuit protection | yes |
| Special Feature | correction factor = 1; Magnetic-field immune |
| Specification Summary | Inductive sensor; 40 x 40 x 54 mm; Sensing range 35 mm non-flush mountable; normally open; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 200 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 200 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 134 |
