Inductive sensor - IM5117
IFM IM5117 - Inductive sensor - Weight: 151.5; Ambient temperature: -25...70; Connector: 1 x M12; coding: A; Locking: locking, rotatable.
The IFM IM5117 is part of the Inductive sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 151.5 and Ambient temperature: -25...70.
housing: PA; sensing face: PA black; bevelled housing part: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)
Published specifications for this part include Connector: 1 x M12; coding: A; Locking: locking, rotatable; Protection class: II; Dimensions: 40 x 40 x 54; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...36 DC; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 40; Overload protection: yes; Output function: normally open; Hysteresis: 1...20. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...70 |
|---|---|
| Connector | 1 x M12; coding: A; Locking: locking, rotatable |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | < 20 |
| Dimensions | 40 x 40 x 54 |
| Electrical design | PNP |
| Embedded software included | no |
| Housing | rectangular |
| Hysteresis | 1...20 |
| Key Features | Long sensing range for use in conveying; Robust housing for use in harsh industrial environments; Five selectable positions of the sensing face; LED display for switching status and operation; Corner LEDs clearly visible in any mounted position |
| Material | housing: PA; sensing face: PA black; bevelled housing part: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu) |
| Max. leakage current | 0.1 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1494 |
| Operating distance | 0...32.4 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 40 ± 10 % |
| Reverse polarity protection | yes |
| Sensing face | 5 positions selectable |
| Sensing range | 40 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 40 x 40 x 54 mm; Sensing range 40 mm non-flush mountable; normally open; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 60 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 60 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 151.5 |
Frequently Asked Questions
How do I get pricing for IM5117?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IM5117?
IM5117 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IM5117?
Key specifications include Ambient temperature: -25...70; Connector: 1 x M12; coding: A; Locking: locking, rotatable; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3; Current consumption: < 20. The full specification table on this page lists every published attribute for this part.
How quickly can IM5117 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IM5115
IFM Inductive sensor - IM511A
IFM Inductive sensor - IM510A
IFM Inductive sensor - IM5120

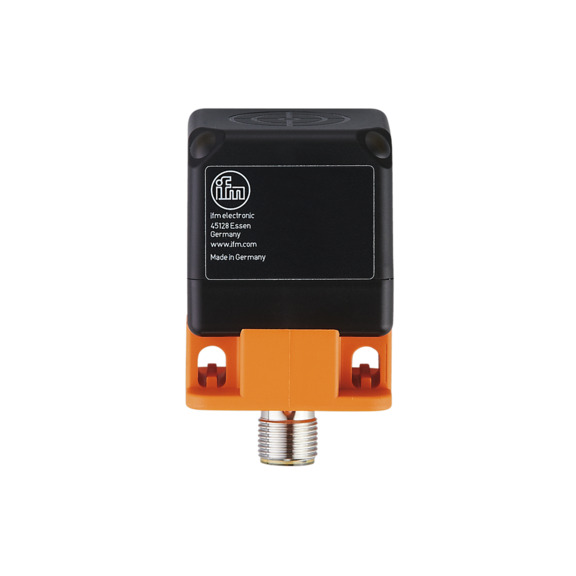

IFM Inductive sensor - IM5123
