Inductive sensor - IM510A
IFM IM510A - Inductive sensor - Weight: 244.5; Ambient temperature: -20...60; Terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm.
IFM IM510A is a Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 244.5 and Ambient temperature: -20...60.
housing: PC black; sensing face: PC black; connection module: PA black; Mounting adapter: PC black; screw: steel galvanized
The specification set recorded for this part number covers Terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Protection class: III; Dimensions: 40 x 40 x 105; Application: For applications in hazardous areas; Approval: BVS 20 ATEX E 056X; IECEx BVS 20.0043X; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 15; Reverse polarity protection: yes; Sensing range: 20; Overload protection: yes. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -20...60 |
|---|---|
| Application | For applications in hazardous areas |
| Approval | BVS 20 ATEX E 056X; IECEx BVS 20.0043X |
| ATEX marking | II 3D Ex tc IIIC T95°C Dc |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | < 15 |
| Dimensions | 40 x 40 x 105 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...20 |
| Key Features | For applications in hazardous areas; Robust housing for use in harsh industrial environments; Complementary output function NO/NC; Long sensing range for use in conveying; Five selectable positions of the sensing face |
| Material | housing: PC black; sensing face: PC black; connection module: PA black; Mounting adapter: PC black; screw: steel galvanized |
| Max. leakage current | 0.5 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1326 |
| Operating distance | 0...16.2 |
| Operating voltage | 10...30 DC |
| Output function | complementary |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Real sensing range Sr | 20 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 20 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 40 x 40 x 105 mm; Sensing range 20 mm flush mountable; complementary; DC; PNP; terminals: 0,34...1,5 mm²; Cable sheath: Ø 5...9 mm; IP 65; IP 67; 3-wire; Ambient temperature -20...60 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Terminals | 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 244.5 |
Frequently Asked Questions
How do I get pricing for IM510A?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IM510A?
IM510A is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IM510A?
Key specifications include Ambient temperature: -20...60; Application: For applications in hazardous areas; Approval: BVS 20 ATEX E 056X; IECEx BVS 20.0043X; ATEX marking: II 3D Ex tc IIIC T95°C Dc. The full specification table on this page lists every published attribute for this part.
How quickly can IM510A ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IM5115
IFM Inductive sensor - IM506A

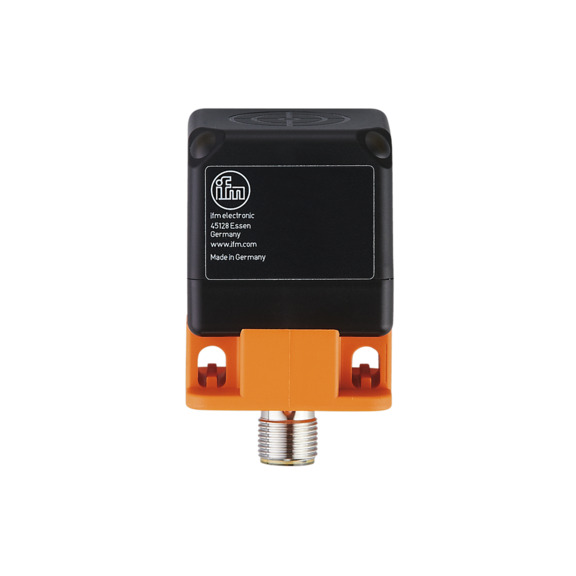

IFM Inductive sensor - IM5117
IFM Inductive sensor - IM5054

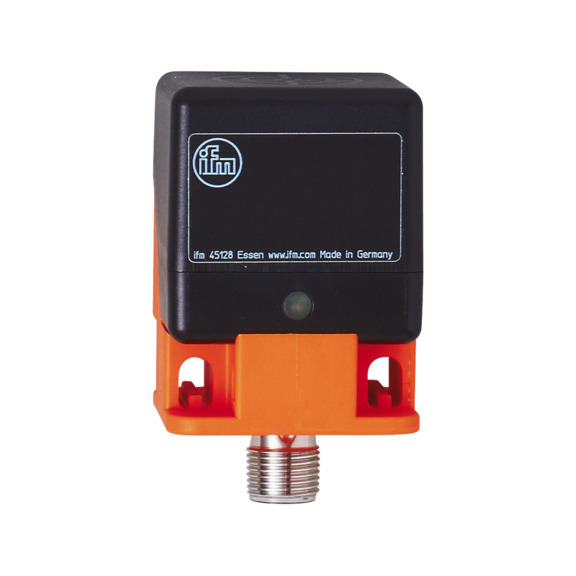

IFM Inductive sensor - IM511A
