IIM210 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IIM210 - Inductive sensor - Ambient temperature: -40...85; Protection class: II.
Overview
Part number IIM210 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -40...85; Application Use in mobile and harsh applications; Dimensions M30 x 1.5 / L = 81; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the IIM210 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 375 and Ambient temperature: -40...85.
threaded sleeve: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass
Key manufacturer data on file for this item includes Protection class: II; Dimensions: M30 x 1.5 / L = 81; Application: Use in mobile and harsh applications; Product type: Inductive sensor; Mounting: flush mountable; Cable: 6 m, PUR; burning behaviour to ECE R118 rev. 2; 3 x 0.5 mm²; Operating voltage: 10...60 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 12; Overload protection: yes; Special Feature: Increased sensing range. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Application | Use in mobile and harsh applications |
| Cable | 6 m, PUR; burning behaviour to ECE R118 rev. 2; 3 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.45 / copper: 0.35 |
| Dimensions | M30 x 1.5 / L = 81 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...20 |
| Increased sensing range | yes |
| Key Features | E1 type approval (German Federal Motor Transport Authority); Wide operating temperature range; High ingress protection for harsh environmental conditions; High EMC resistance according to automotive standards; Large operating voltage range |
| Material | threaded sleeve: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 907 |
| Operating distance | 0...9.72 |
| Operating voltage | 10...60 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67; IP 69K |
| Protection class | II |
| Reverse polarity protection | yes |
| Sensing range | 12 |
| Short circuit protection | yes |
| Special Feature | Increased sensing range |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 81 mm; Sensing range 12 mm flush mountable; normally open; DC; PNP; 6 m PUR-Cable; IP 67; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 100 Hz |
| Switching frequency DC | 100 |
| Thread designation | M30 x 1.5 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IIM210 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 31 attributes listed |
| Related part numbers | 9 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IIM210?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IIM210?
IIM210 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IIM210, and the quote confirms condition and lead time before you order.
Is the IIM210 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IIM210, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IIM210?
No published lifecycle status is on file for IIM210. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IIM210?
Key specifications include Ambient temperature: -40...85; Application: Use in mobile and harsh applications; Cable: 6 m, PUR; burning behaviour to ECE R118 rev. 2; 3 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.45 / copper: 0.35. The full specification table on this page lists every published attribute for this part.
What voltage does IIM210 use?
Per the published specification for IIM210: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...60 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IIM210?
Per the published specification for IIM210: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IIM210 use?
Per the published specification for IIM210: Thread designation: M30 x 1.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IIM210 ship?
Lead time for IIM210 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - II5687
IFM Inductive sensor - IIM219

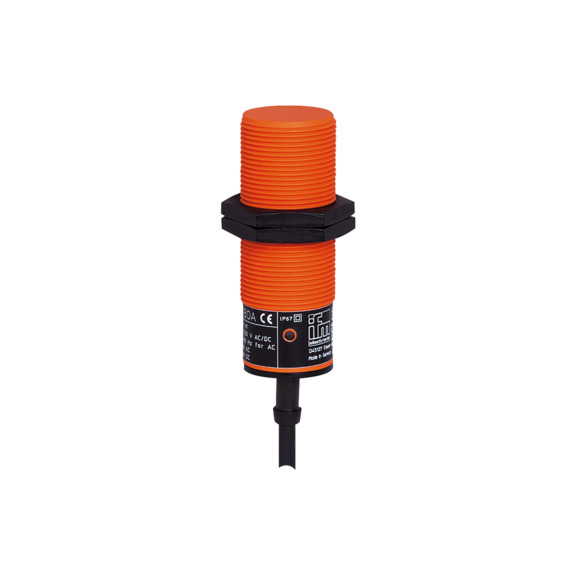

IFM Inductive sensor - II5376
