Inductive sensor - IIS719
IFM IIS719 - Inductive sensor - Weight: 159.15; Ambient temperature: -40...85; Tightening torque: see operating instructions.
This listing covers the IFM IIS719, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 159.15 and Ambient temperature: -40...85.
housing: brass white bronze coated; LED window: PEI; lock nuts: brass white bronze coated; sensing face: PBT orange
Published specifications for this part include Tightening torque: see operating instructions; Protection class: III; Dimensions: M30 x 1.5 / L = 45; Application: Industrial applications; Product type: Inductive sensor; Mounting: non-flush mountable; Cable: 3 m, PUR; 2 x 0.34 mm²; Operating voltage: 10...30 DC; ("supply limited voltage / current" acc. to UL); Reverse polarity protection: yes; Sensing range: 22; Overload protection: yes; Special Feature: Drag chain suitability; Increased sensing range. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -40...85 |
|---|---|
| Application | Industrial applications |
| Cable | 3 m, PUR; 2 x 0.34 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M30 x 1.5 / L = 45 |
| Drag chain suitability | yes |
| Electrical design | PNP/NPN |
| Embedded software included | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Suitable for industrial, mobile, cooling and lubricating applications; High protection rating for the requirements of harsh industrial environments; Wide operating temperature range; Safe detection due to large sensing range and low sensor tolerances; Reduced inventory due to wide range of applications |
| Material | housing: brass white bronze coated; LED window: PEI; lock nuts: brass white bronze coated; sensing face: PBT orange |
| Max. leakage current | 0.6 |
| Max. voltage drop switching output DC | 5 |
| Minimum load current | 2 |
| Mounting | non-flush mountable |
| MTTF | 899 |
| Operating distance | 0...17.82 |
| Operating voltage | 10...30 DC; ("supply limited voltage / current" acc. to UL) |
| Output function | normally closed |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 22 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 22 |
| Short circuit protection | yes |
| Special Feature | Drag chain suitability; Increased sensing range |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 45 mm; Sensing range 22 mm non-flush mountable; normally closed; DC; PNP/NPN; 3 m PUR-Cable; IP 65; IP 66; IP 67; IP 68; IP 69K; 2-wire; Ambient temperature -40...85 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Thread designation | M30 x 1.5 |
| Tightening torque | see operating instructions |
| Weight | 159.15 |
Frequently Asked Questions
How do I get pricing for IIS719?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IIS719?
IIS719 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IIS719?
Key specifications include Ambient temperature: -40...85; Application: Industrial applications; Cable: 3 m, PUR; 2 x 0.34 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
How quickly can IIS719 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IIM219
IFM Inductive sensor - IIT206
IFM Inductive sensor - IIM210
IFM Inductive sensor - IIT208

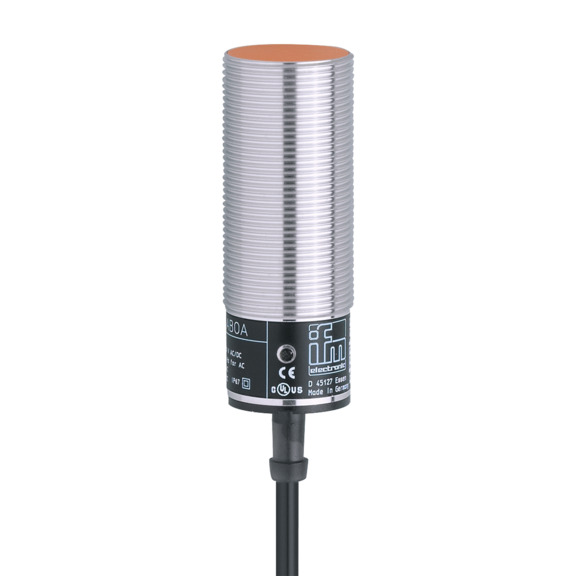

IFM Inductive sensor - II5687
