Inductive sensor - II5257
IFM II5257 - Inductive sensor - Weight: 460.5; Ambient temperature: -25...80; Protection class: II.
This listing covers the IFM II5257, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 460.5 and Ambient temperature: -25...80.
housing: brass white bronze coated; sensing face: PBT orange; end cap: PEI; lock nuts: brass white bronze coated
The specification set recorded for this part number covers Protection class: II; Dimensions: M30 x 1.5 / L = 65; Product type: Inductive sensor; Mounting: flush mountable; Cable: 6 m, PUR, Ø 4.0 mm; 3 x 0.34 mm²; Operating voltage: 10...36 DC; Current consumption: 15; Reverse polarity protection: yes; Sensing range: 10; Overload protection: yes; Output function: normally open; Hysteresis: 1...15. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Cable | 6 m, PUR, Ø 4.0 mm; 3 x 0.34 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 15 |
| Dimensions | M30 x 1.5 / L = 65 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...15 |
| Key Features | Robust metal housing for use in harsh industrial environments; Wide operating temperature range; High protection rating for the requirements of harsh industrial environments; For a precise position detection on machines |
| Material | housing: brass white bronze coated; sensing face: PBT orange; end cap: PEI; lock nuts: brass white bronze coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1853 |
| Operating distance | 0...8.1 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 10 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 10 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 65 mm; Sensing range 10 mm flush mountable; normally open; DC; PNP; 6 m PUR-Cable; IP 67; 3-wire; Ambient temperature -25...80 °C; Switching frequency 250 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 250 |
| Thread designation | M30 x 1.5 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 460.5 |
Frequently Asked Questions
How do I get pricing for II5257?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the II5257?
II5257 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of II5257?
Key specifications include Ambient temperature: -25...80; Cable: 6 m, PUR, Ø 4.0 mm; 3 x 0.34 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Current consumption: 15. The full specification table on this page lists every published attribute for this part.
How quickly can II5257 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - II5284

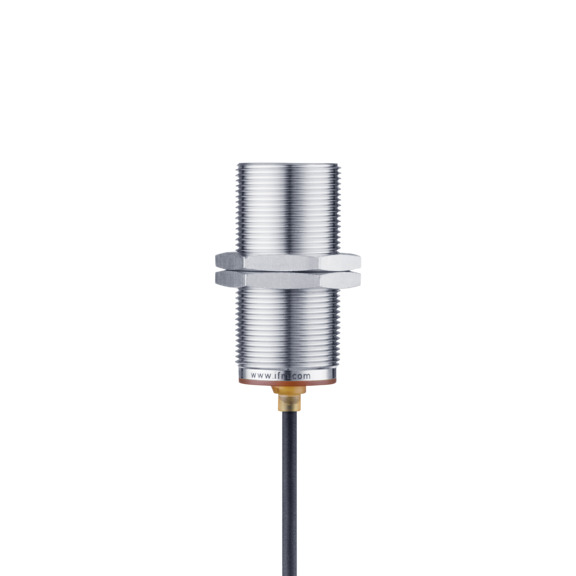

IFM Inductive sensor - II5256
