Inductive full-metal sensor - IGT262
IFM IGT262 - Inductive full-metal sensor - Weight: 38.6; Ambient temperature: 0...100; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
The IFM IGT262 is part of the Inductive full-metal sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 38.6 and Ambient temperature: 0...100.
stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 50; Protection class: III; Dimensions: M18 x 1 / L = 45; Application: Use in hygienic areas / regular cleaning processes; Product type: Inductive full-metal sensor; Mounting: non-flush mountable; Operating voltage: 10...30 DC; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 12; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | 0...100 |
|---|---|
| Application | Use in hygienic areas / regular cleaning processes |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 1 / brass: 0.9 / aluminum: 0.8 / copper: 0.5 |
| Current consumption | < 20 |
| Dimensions | M18 x 1 / L = 45 |
| Electrical design | PNP |
| Embedded software included | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Robust, high-quality stainless steel design; Compact housing for use where space is restricted; Large operating temperature range up to 100 °C; Industry standard M12 connection for simple wiring |
| Material | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1386 |
| Operating distance | 0...9.72 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive full-metal sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 12 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 12 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; M18 x 1 / L = 45 mm; Sensing range 12 mm non-flush mountable; normally open; DC; PNP; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature 0...100 °C; Switching frequency 250 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 250 |
| Thread designation | M18 x 1 |
| Tightening torque | 50 |
| Weight | 38.6 |
Frequently Asked Questions
How do I get pricing for IGT262?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGT262?
IGT262 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IGT262?
Key specifications include Ambient temperature: 0...100; Application: Use in hygienic areas / regular cleaning processes; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 1 / brass: 0.9 / aluminum: 0.8 / copper: 0.5. The full specification table on this page lists every published attribute for this part.
How quickly can IGT262 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive full-metal sensor - IGC262

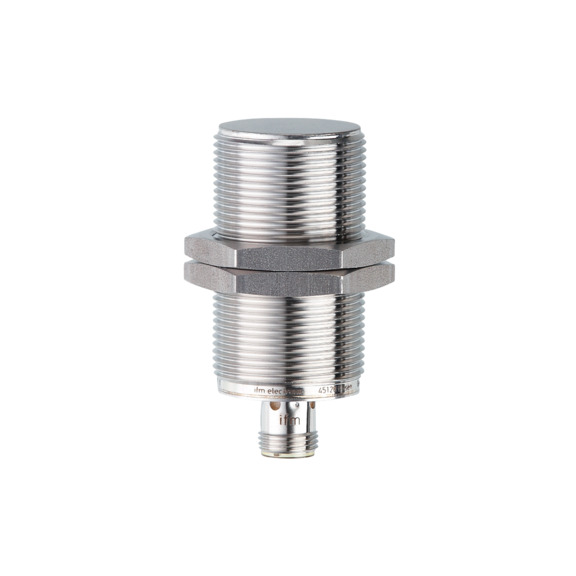

IFM Inductive full-metal sensor - IIC228

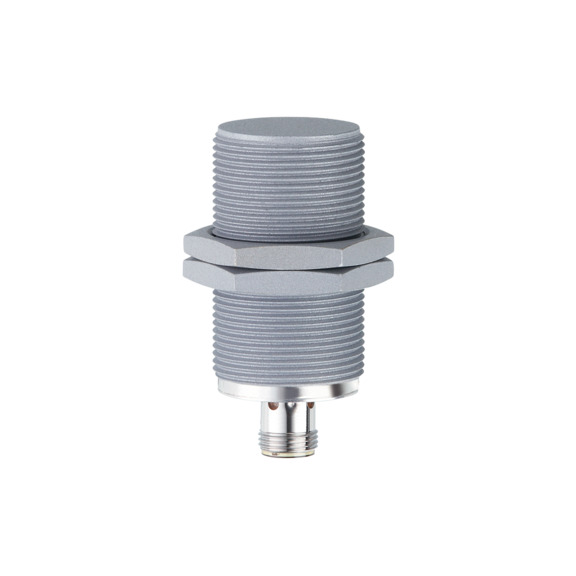

IFM Inductive full-metal sensor - IIR200

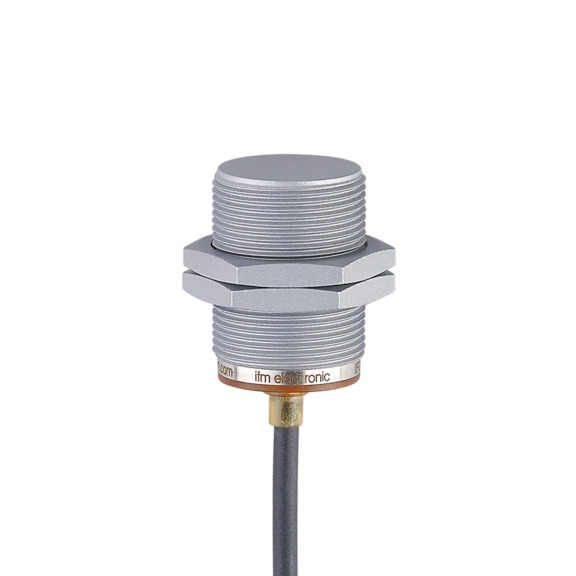

IFM Inductive full-metal sensor - IIR212
