IGT205 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IGT205 - Inductive sensor - Ambient temperature: 0...100; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number IGT205 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature 0...100; Dimensions M18 x 1 / L = 70; Electrical design PNP/NPN; Housing Threaded type. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IGT205 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Ambient temperature: 0...100.
housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Key manufacturer data on file for this item includes Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 50; Protection class: II; Dimensions: M18 x 1 / L = 70; Application: Use in hygienic areas / regular cleaning processes; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 15; Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | 0...100 |
|---|---|
| Application | Use in hygienic areas / regular cleaning processes |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 70 |
| Electrical design | PNP/NPN |
| Housing | Threaded type |
| Hysteresis | 1...20 |
| Increased sensing range | yes |
| Key Features | Robust stainless steel housing for use in the food industry; Temperature shock resistant even in case of frequent temperature fluctuations; Operation as three-wire or two-wire possible; Resistant to high-pressure cleaning with aggressive cleaning agents; With optical mounting and setting aid |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Max. leakage current | 0.6 |
| Max. voltage drop switching output DC | 2.8 |
| Minimum load current | 2; (only in 2-wire operation) |
| Mounting | flush mountable |
| MTTF | 1058 |
| Operating distance | 0...6.48 |
| Operating voltage | 10...30 DC |
| Optical setting aid | yes |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 68; IP 69K |
| Protection class | II |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range; optical setting aid |
| Specification Summary | Inductive sensor; M18 x 1 / L = 70 mm; Sensing range 8 mm flush mountable; normally open; DC; PNP/NPN; M12 Connector; IP 68; IP 69K; 2-wire; 3-wire; Ambient temperature 0...100 °C; Switching frequency 400 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 400 |
| Thread designation | M18 x 1 |
| Tightening torque | 50 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IGT205 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 37 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IGT205?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IGT205?
IGT205 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IGT205, and the quote confirms condition and lead time before you order.
Is the IGT205 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IGT205, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IGT205?
No published lifecycle status is on file for IGT205. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IGT205?
Key specifications include Ambient temperature: 0...100; Application: Use in hygienic areas / regular cleaning processes; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does IGT205 use?
Per the published specification for IGT205: Max. voltage drop switching output DC: 2.8; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IGT205?
Per the published specification for IGT205: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IGT205 use?
Per the published specification for IGT205: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IGT205 ship?
Lead time for IGT205 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IGS704
IFM Inductive sensor - IGT211
IFM Inductive sensor - IGS701
IFM Inductive sensor - II0285

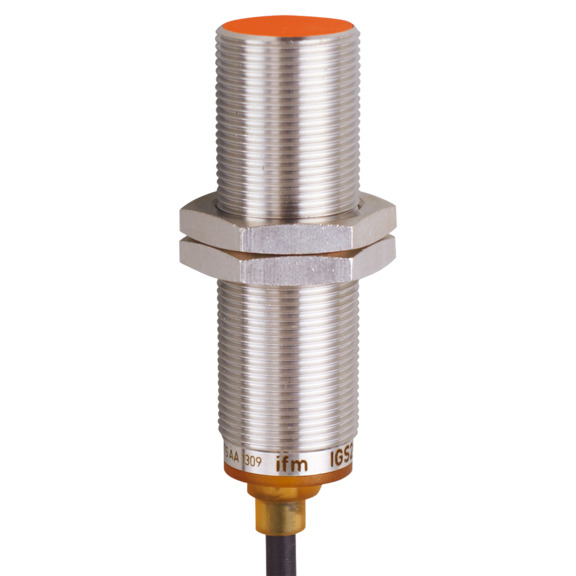

IFM Inductive sensor - IGS269
