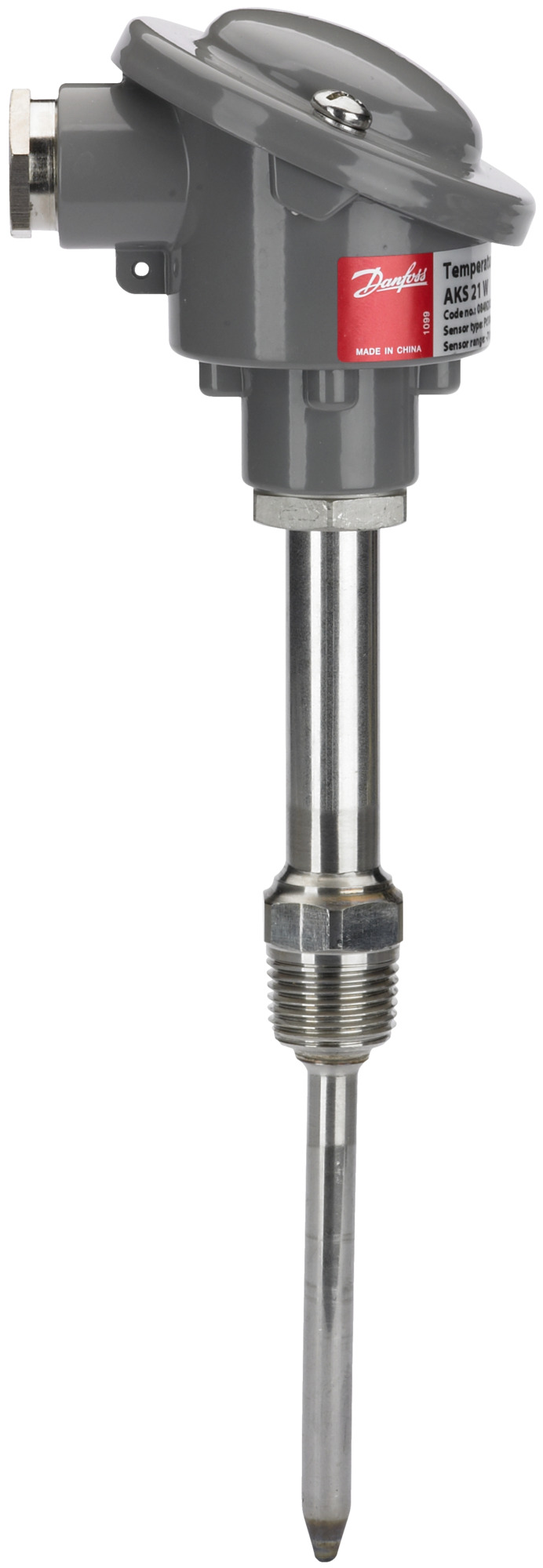

Danfoss Temperature sensor, AKS 21 W, NPT, 1/2-14
Danfoss 084N2031 - AKS 21 - Electrical connection: Type B; Type: AKS 21 W; Gross weight: 0.318 Kilogram.
The 084N2031 from Danfoss is listed under AKS 21 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Type B and Type: AKS 21 W.
The specification set recorded for this part number covers Gross weight: 0.318 Kilogram; Net weight: 0.317 Kilogram; Volume: 1.575 Liter; EAN: 5702422039167; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Connection standard: ANSI/ASME B1.20; Connection type: NPT; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 160 °C |
|---|---|
| Ambient temperature max. [°F] | 320 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Contains batteries | No |
| EAN | 5702422039167 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP56 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.318 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] | 3.82 in |
| Insertion length [mm] | 97 mm |
| Measuring range [°C] [Max] | 180 °C |
| Measuring range [°C] [Min] | -60 °C |
| Measuring range [°F] [Max] | 356 °F |
| Measuring range [°F] [Min] | -76 °F |
| Net weight | 0.317 Kilogram |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process Connection Size | 1/2-14 |
| Process connection standard | ANSI/ASME B1.20 |
| Process Connection Type | NPT |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 3.94 in |
| Protection tube length [mm] | 100 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Volume | 1.575 Liter |
| Wires [pcs] | 2 pc |
