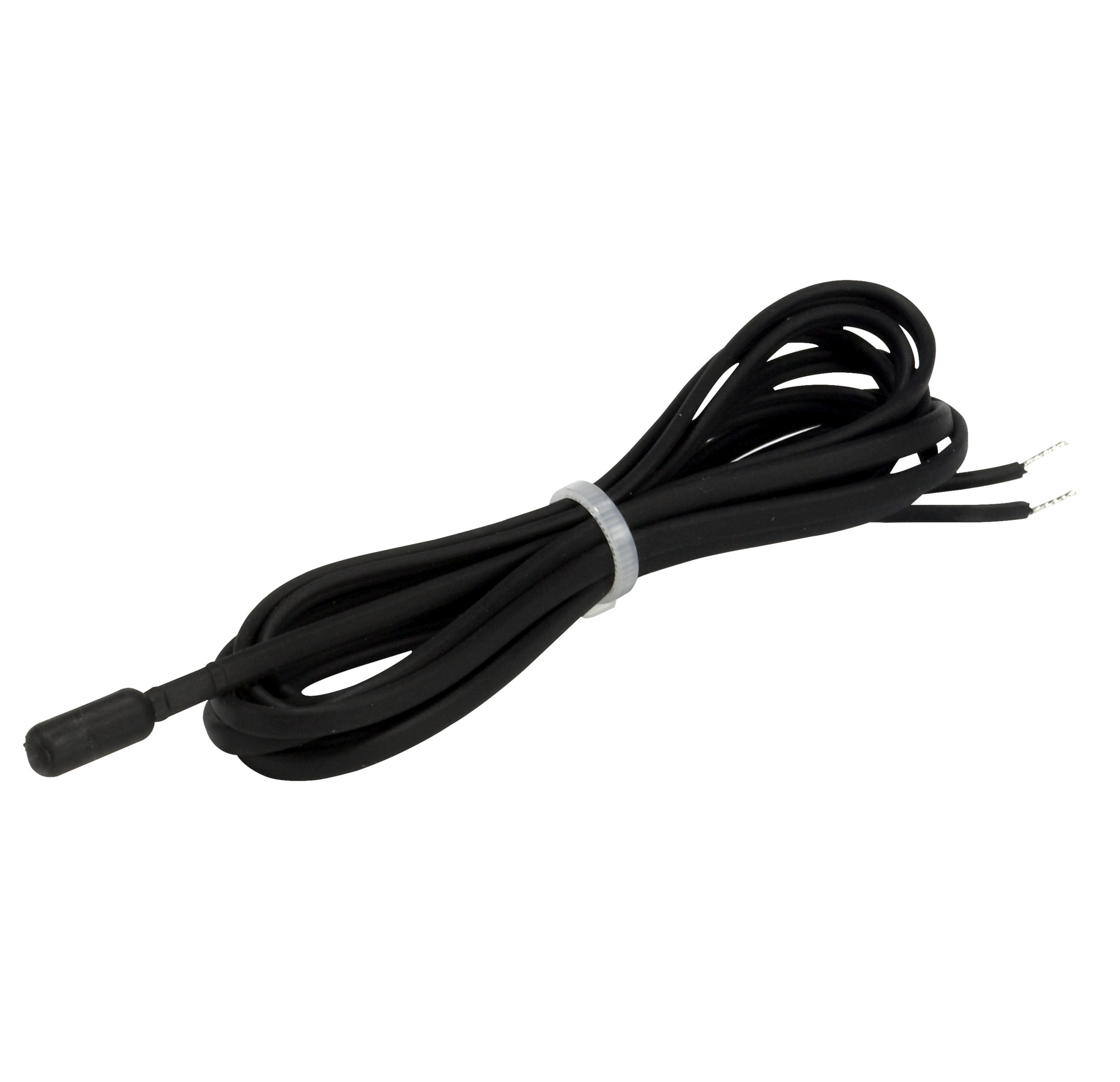

Danfoss Temperature sensor, EKS 221, 88.9 in, NTC, 10000 Ohm
Danfoss 084N3210 - EKS 221 - Electrical connection: Cable; Type: EKS 221; Cable type: THERMOPLASTIC RUBBER.
Danfoss 084N3210 is a EKS 221 catalog item from Danfoss. The manufacturer's published data for this part number specifies Electrical connection: Cable and Type: EKS 221.
Key manufacturer data on file for this item includes Cable type: THERMOPLASTIC RUBBER; Gross weight: 0.032 Kilogram; Net weight: 0.027 Kilogram; Volume: 0.225 Liter; EAN: 5702428171977; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 20 pc. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 120 °C |
|---|---|
| Ambient temperature max. [°F] | 248 °F |
| Approval | CE |
| Cable length [in] | 88.9 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [Max] | 120 °C |
| Cable tempr. range [°C] [Min] | -50 °C |
| Cable type | THERMOPLASTIC RUBBER |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Comments | CABLE SENSOR |
| Contains batteries | No |
| EAN | 5702428171977 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.032 Kilogram |
| Identical product | 084N3206 |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [Max] | 120 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 248 °F |
| Measuring range [°F] [Min] | -58 °F |
| Net weight | 0.027 Kilogram |
| NTC Element characteristic | 10.000 Ohm/25°C |
| Packing format | Multi pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | THERMOPLASTIC RUBBER |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 10000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | NTC |
| Type | EKS 221 |
| Volume | 0.225 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084N3210?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084N3210?
084N3210 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084N3210?
Key specifications include Ambient temperature max. [°C]: 120 °C; Ambient temperature max. [°F]: 248 °F; Approval: CE; Cable length [in]: 88.9 in. The full specification table on this page lists every published attribute for this part.
How quickly can 084N3210 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
