Danfoss Solenoid valve, EV224B, Function: NC, G, 1/2, 4 m³/h, NBR
| Actuator | B |
|---|---|
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Approval | DNVGL-CG-0339 |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 4.6 gal/min |
| Differential pressure [bar] [max] | 40 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 580 psi |
| Differential pressure [psi] [Min] | 4.35 psi |
| EAN | 5702423163908 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| Gross weight | 0.732 Kilogram |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 4 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 60 bar |
| Max. test pressure [psig] | 870 psig |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Media recommendations | Compressed air |
| Media tolerance comments | Air with/without mineral oilAir with/without synthetic oil |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.685 Kilogram |
| Number of ways | 2/2 |
| Open/close equalizing orifice | Optional Equalization orifice |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 5/8 in |
| Packing format | Multi pack |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 3cbac950-b315-4f09-8c50-9c941ac8e526 |
| SCIP dossier product name | EV224B NC- solenoid valve |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV224B 15B G 12N NC000 |
| Type | EV224B |
| Type designation | EV224B 15 |
| Volume | 0.88 Liter |
Frequently Asked Questions
How do I get pricing for 032U8360?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 032U8360?
032U8360 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 032U8360?
Key specifications include Actuator: B; Actuator size: 13.5 mm; Actuator size [in]: 0.53 in; Actuator system [mm]: 13.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 032U8360 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Danfoss Danfoss Solenoid valve, EV260B, Function: NC, NPT, 3/4, 5…

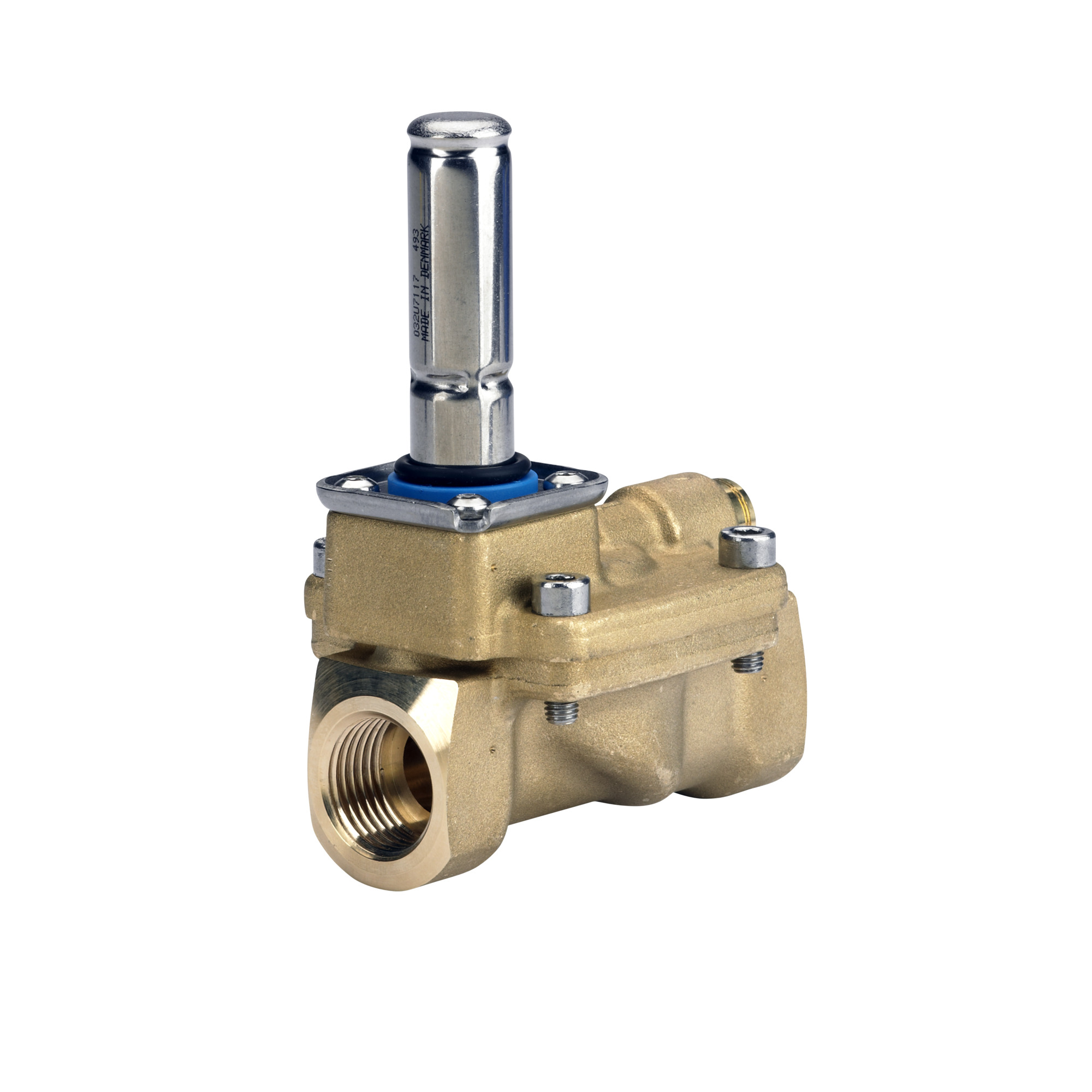

Danfoss Danfoss Solenoid valve, EV224B, Function: NO, G, 1/2, 4…
Danfoss Danfoss Solenoid valve, EV260B, Function: NC, NPT, 1/4, 0.8…

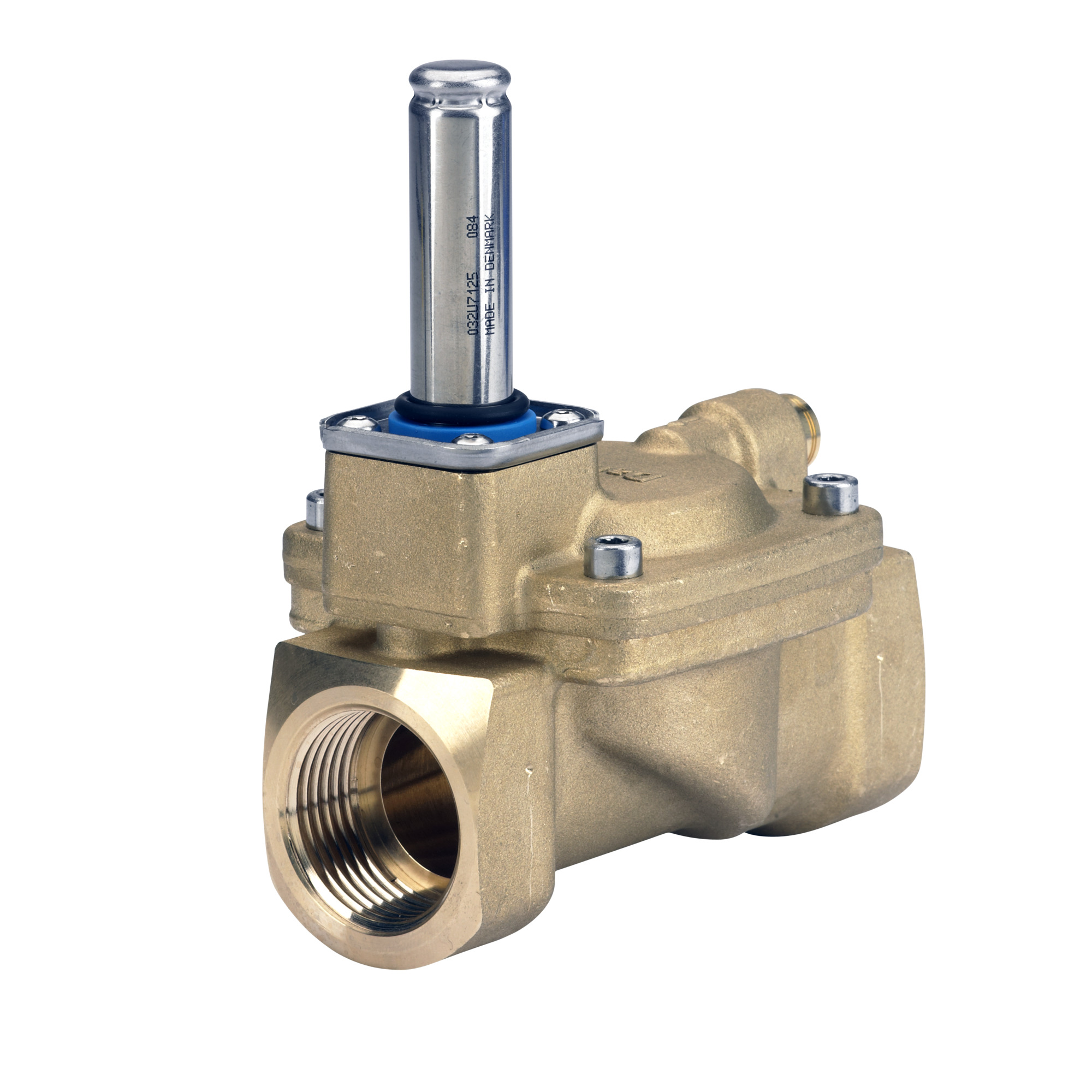

Danfoss Danfoss Solenoid valve, EV224B, Function: NC, G, 1, 11…
