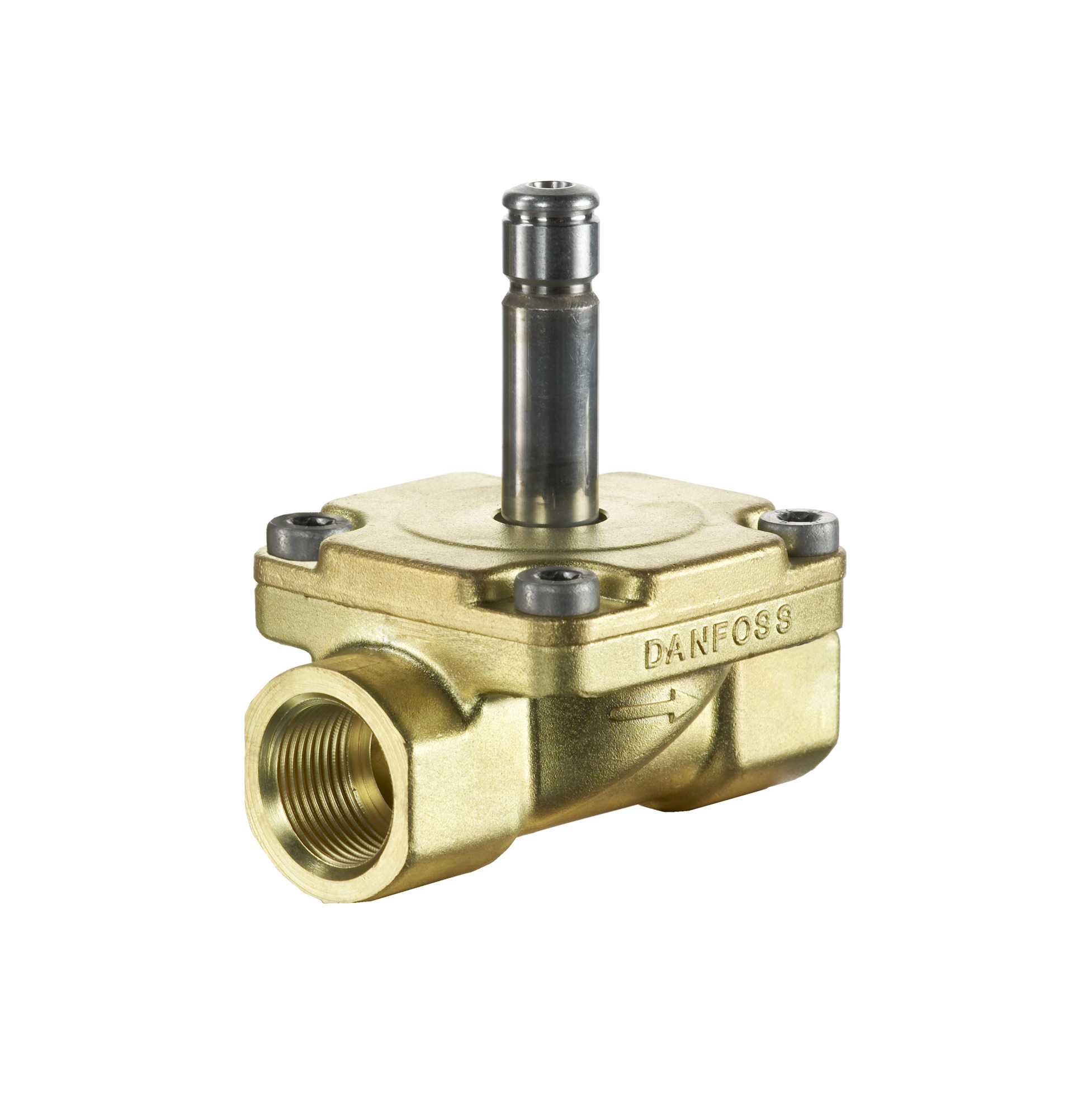

032U8052 — Danfoss Solenoid valve, EV260B, Function: NC, G, 1/4, 0.8 m³/h, PTFE
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 032U8052 - Quick selector - Function: NC; Type: EV260B; Gross weight: 0.544 Kilogram.
Overview
Part number 032U8052 from Danfoss, listed in Process Solenoid Valves. Specifications on file: Actuator B; Actuator size 13.5 mm; Actuator size [in] 0.53 in; Actuator system [mm] 13.5 mm. KKM Solutions quotes this part with pricing and availability confirmed per order.
Danfoss 032U8052 is a Quick selector catalog item from Danfoss. The manufacturer's published data for this part number specifies Function: NC and Type: EV260B.
The specification set recorded for this part number covers Gross weight: 0.544 Kilogram; Net weight: 0.477 Kilogram; Volume: 0.88 Liter; EAN: 5702423060993; Product group: Solenoid valves; Product Name Description: Solenoid valve; China RoHS compliance: Yes with exemptions; Connection Internal/External: Internal; Connection size [in]: 1/4; Connection standard: ISO 228-1; Connection type: G; Contains batteries: No. See the Specifications tab on this page for the full technical table.
Specifications
| Actuator | B |
|---|---|
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 0.92 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [Min] | 0.5 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 7.252 psi |
| EAN | 5702423060993 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| Gross weight | 0.544 Kilogram |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.8 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Water & Brine |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 80 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 180 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.477 Kilogram |
| Number of ways | 2/2 |
| Operation | Proportional |
| Orifice size [mm] | 6 mm |
| Orifice size fraction [in] | 1/4 in |
| Packing format | Multi pack |
| Parts Program name | EV260B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4eb0c237-8486-46ca-8052-bc7e10a477a5 |
| SCIP dossier product name | EV260B - solenoid valve |
| Seal Material | PTFE |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV260B 6B G 14T NC000 |
| Type | EV260B |
| Type designation | EV260B 6 |
| Volume | 0.88 Liter |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 032U8052 |
| Product category | Process Solenoid Valves |
| Published specifications | 61 attributes listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 032U8052?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 032U8052?
032U8052 is made by Danfoss and is listed in our Process Solenoid Valves category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 032U8052, and the quote confirms condition and lead time before you order.
Is the 032U8052 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 032U8052, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 032U8052?
No published lifecycle status is on file for 032U8052. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 032U8052?
Key specifications include Actuator: B; Actuator size: 13.5 mm; Actuator size [in]: 0.53 in; Actuator system [mm]: 13.5 mm. The full specification table on this page lists every published attribute for this part.
What thread or connection does 032U8052 use?
Per the published specification for 032U8052: Connection size [in]: 1/4; Connection type: G. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 032U8052 rated for?
Per the published specification for 032U8052: Ambient temperature max. [°C]: 50 °C; Ambient temperature max. [°F]: 122 °F. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is 032U8052 made of?
Per the published specification for 032U8052: Body material: Brass. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 032U8052 ship?
Lead time for 032U8052 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
