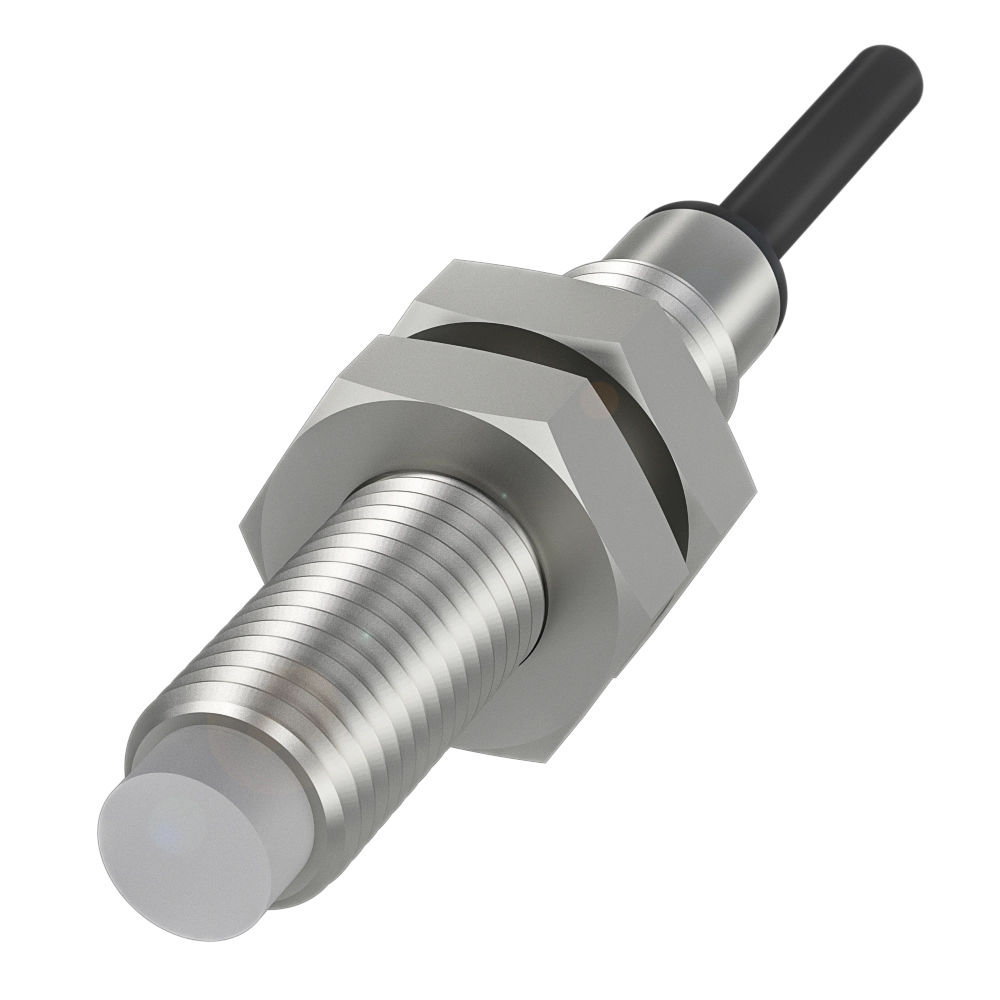

Balluff BCS M08T4E1-NSM30G-EP02
BCS002K (BCS M08T4E1-NSM30G-EP02) - Capacitive level sensors - List price USA: 347.90 USD - Dimension: Ø 8 x 42 mm, Series: M08, Installation: non-flush, Connection: Cable, 2.00 m, PUR, Switching output: NPN Normally open (NO), Switching frequency: 100 Hz, Sensitivity: Switching distance adjustable, Housing material: 1.4301 stainless steel, Material sensing surface: PTFE, Ambient temperature: -10...70 °C, Operating voltage Ub: 11...30 VDC, Approval/Conformity: CE, UKCA, cULus, WEEE, IP rating: IP65 - BALLUFF USA
| Ambient temperature | -10...70 °C |
|---|---|
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Cable, 2.00 m, PUR |
| Dimension | Ø 8 x 42 mm |
| Housing material | 1.4301 stainless steel |
| Installation | non-flush |
| IP Rating | IP65 |
| Material sensing surface | PTFE |
| Operating voltage Ub | 11...30 VDC |
| Sensitivity | Switching distance adjustable |
| Series | M08 |
| Switching frequency | 100 Hz |
| Switching output | NPN Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BCS002K?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BCS002K?
BCS002K is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BCS002K?
Key specifications include Ambient temperature: -10...70 °C; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Cable, 2.00 m, PUR; Dimension: Ø 8 x 42 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BCS002K ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

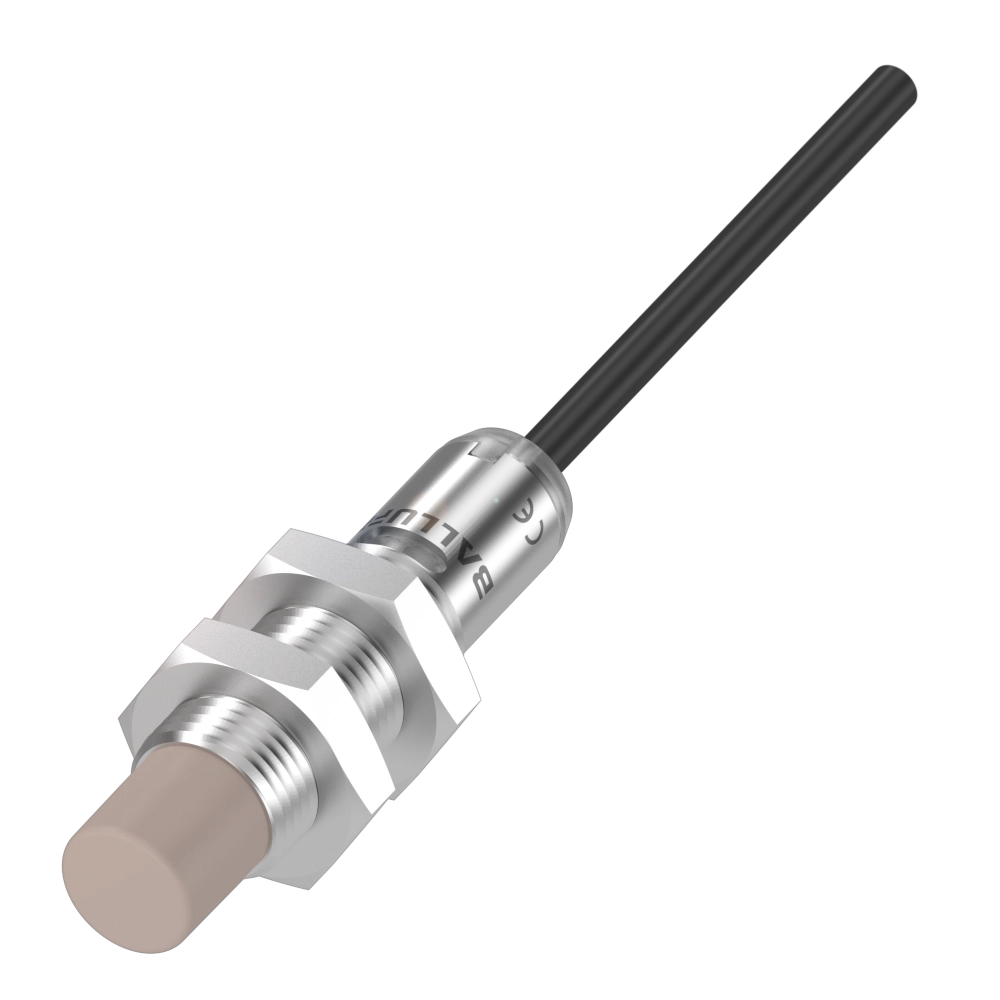

Balluff Balluff BCS M12K4G1-GSM80G-EP02
Balluff Balluff BCS M12K4G1-GOM80G-EP02
Balluff Balluff BCS M12K4D2-GSM80G-S04G

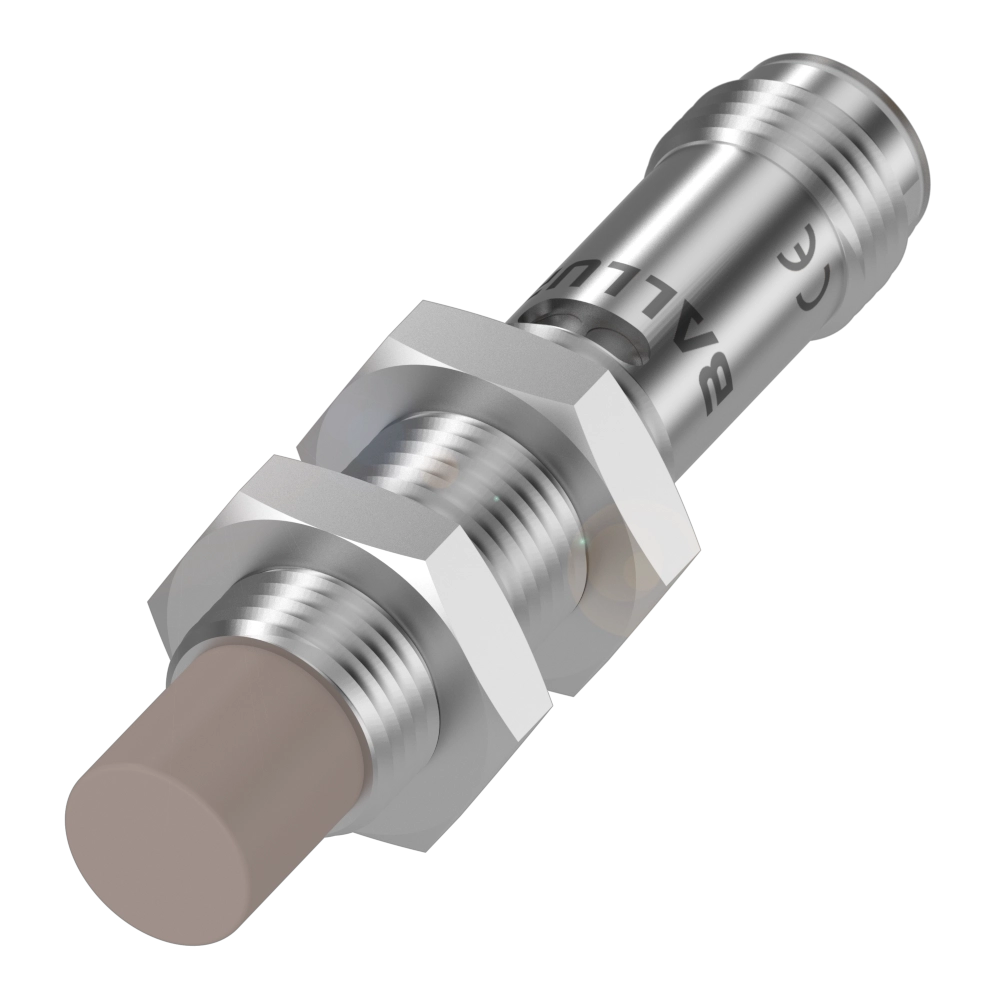

Balluff Balluff BCS M12K4D2-GOM80G-S04G
