BCS002N (BCS M08T4E2-POM30G-S49G) - Capacitive level sensors - List price USA: 342.68 USD - Dimension: Ø 8 x 54 mm, Series: M08, Installation: non-flush, Connection: Connector, M8x1-Male, 3-pin, Switching output: PNP Normally closed (NC), Switching frequency: 100 Hz, Sensitivity: Switching distance adjustable, Housing material: 1.4301 stainless steel, Material sensing surface: PTFE, Ambient temperature: -10...70 °C, Operating voltage Ub: 11...30 VDC, Approval/Conformity: CE, cULus, WEEE, UKCA, IP rating: IP65 - BALLUFF USA
| Ambient temperature | -10...70 °C |
|---|---|
| Connection | Connector, M8x1-Male, 3-pin |
| Dimension | Ø 8 x 54 mm |
| Housing material | 1.4301 stainless steel |
| Installation | non-flush |
| IP Rating | IP65 |
| Material sensing surface | PTFE |
| Operating voltage Ub | 11...30 VDC |
| Sensitivity | Switching distance adjustable |
| Series | M08 |
| Switching frequency | 100 Hz |
| Switching output | PNP Normally closed (NC) |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BCS002N?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BCS002N?
BCS002N is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BCS002N discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BCS002N — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BCS002N?
Key specifications include Ambient temperature: -10...70 °C; Connection: Connector, M8x1-Male, 3-pin; Dimension: Ø 8 x 54 mm; Housing material: 1.4301 stainless steel. The full specification table on this page lists every published attribute for this part.
How quickly can BCS002N ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BCS Z01A403-POC46F-S04G-505
Balluff Balluff BCS M08T4E2-PSM30G-S49G

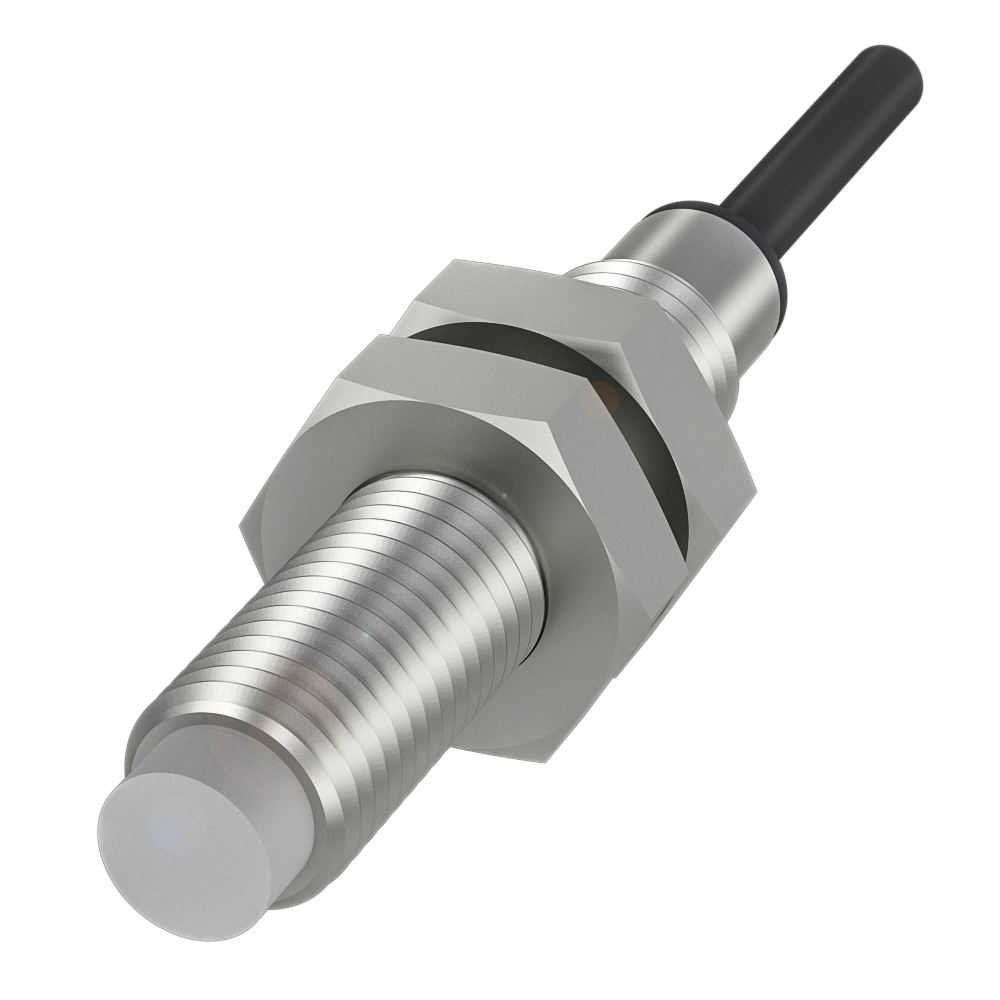

Balluff Balluff BCS M08T4E1-POM30G-EP02
