Weidmuller WDU 10 SL/EN SW
Weidmuller 9537410000 - Feed-through and PE terminal Blocks - Width: 9.9 mm mm; Height: 56.6 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 9537410000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 9.9 mm mm and Height: 56.6 mm mm.
Feed-through terminal block, Screw connection, black, 10 mm², 57 A, 690 V, Number of connections: 2
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 57 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WDU 10 SL/EN SW; Depth: 51.1 mm; Net weight: 20.838 g; Colour: black; Rated voltage: 690 V; Stripping length: 17 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (CSA) | 200039-1057876 |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1.31 mm² |
| Clamping screw | M 4 |
| Colour | black |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 16 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 16 AWG |
| Connection cross-section, finely stranded, min. | 1.31 mm² |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1.31 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 55 A |
| Current (IECEX) | 55 A |
| Current at maximum wires | 76 A |
| Current size C (CSA) | 65 A |
| Current size C (UR) | 50 A |
| Current size D (CSA) | 5 A |
| Depth | 51.1 mm |
| Depth (inches) | 2.012 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A6 |
| GTIN (EAN) | 4032248037407 |
| Height | 56.6 mm mm |
| Height (inches) | 2.228 inch |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 550 V |
| Max. voltage (IECEX) | 550 V |
| N-function | No |
| Net weight | 20.838 g |
| Nominal current | 57 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 9537410000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Qty. | 50 items |
| Rated cross-section | 10 mm² |
| Rated DC voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 690 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 17 mm |
| Tightening torque (max) | 2.4 Nm Nm |
| Tightening torque, min. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Type | WDU 10 SL/EN SW |
| Type of connection | Screw connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal block, Screw connection, black, 10 mm², 57 A, 690 V, Number of connections: 2 |
| Voltage size C (CSA) | 300 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Width | 9.9 mm mm |
| Width (inches) | 0.39 inch |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 4 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 1 mm² |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 1.31 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.31 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.31 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.31 mm² |
| Wire cross section max. (ATEX) | 10 mm² |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section max. (IECEX) | 10 mm² |
| Wire cross section min. (CSA) | 16 AWG |
| Wire cross-section, finely stranded, two clampable wires, max. | 4 mm² |
Frequently Asked Questions
How do I get pricing for 9537410000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9537410000?
9537410000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9537410000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Certificate No. (ATEX): DEMKO14ATEX1338U. The full specification table on this page lists every published attribute for this part.
How quickly can 9537410000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller WDU 4 SL
Weidmuller Weidmuller WDU 4 SL BL

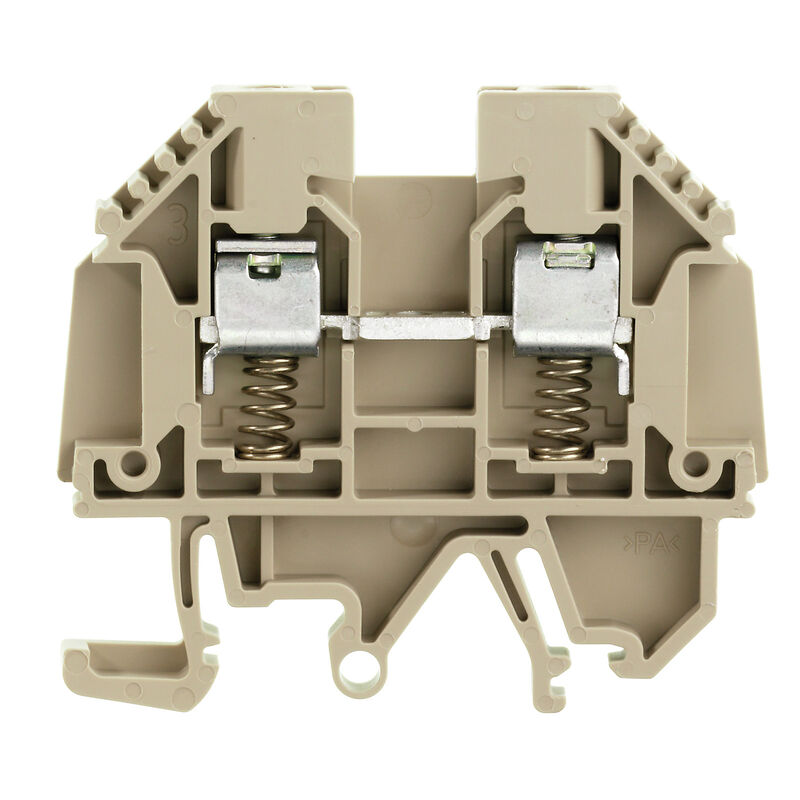

Weidmuller Weidmuller WDU 4 SL/EN
