Weidmuller OSC 10 DEK
Weidmuller 9154830000 - Feed-through and PE terminal Blocks - Width: 8 mm mm; Height: 48.5 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 9154830000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 8 mm mm and Height: 48.5 mm mm.
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 57 A; Ambient temperature: -60 °C…85 °C; Type: OSC 10 DEK; Depth: 48.5 mm; Net weight: 12.96 g; Colour: beige; Rated voltage: 600 V; Stripping length: 12 mm; Version: SAK Series; ROHS: Conform; Certificate No. (UR): E60693. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Certificate No. (CSA) | 12400-397 |
| Certificate No. (UR) | E60693 |
| Colour | beige |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 57 A |
| Current size C (CSA) | 50 A |
| Current size C (UR) | 47 A |
| Delivery status | This article will no longer be available in the future. |
| Depth | 48.5 mm |
| Depth (inches) | 1.909 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| GTIN (EAN) | 4008190898960 |
| Height | 48.5 mm mm |
| Height (inches) | 1.909 inch |
| Installation advice | Direct mounting |
| Insulating material | Wemid |
| Levels cross-connected internally | No |
| Net weight | 12.96 g |
| Nominal current | 57 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Order No. | 9154830000 |
| Qty. | 100 items |
| Rated cross-section | 10 mm² |
| Rated DC voltage | 600 V |
| Rated voltage | 600 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 12 mm |
| TS 32 offset | 20 mm |
| TS 35 offset | 20 mm |
| Type | OSC 10 DEK |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| UL 94 flammability rating | V-0 |
| Version | SAK Series |
| Voltage size C (CSA) | 600 V |
| Voltage size C (UR) | 600 V |
| Width | 8 mm mm |
| Width (inches) | 0.315 inch |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 22 AWG |
Frequently Asked Questions
How do I get pricing for 9154830000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9154830000?
9154830000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9154830000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Certificate No. (CSA): 12400-397; Certificate No. (UR): E60693. The full specification table on this page lists every published attribute for this part.
How quickly can 9154830000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller ZDK 4-2/DU-PE

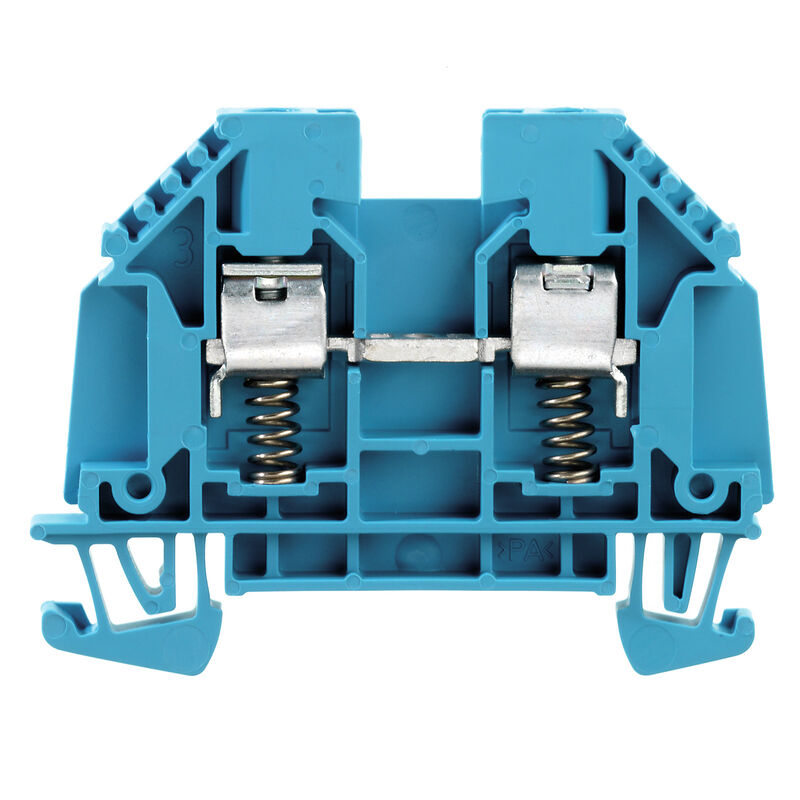

Weidmuller Weidmuller WDU 4 SL BL
Weidmuller Weidmuller ZDK 4-2 V

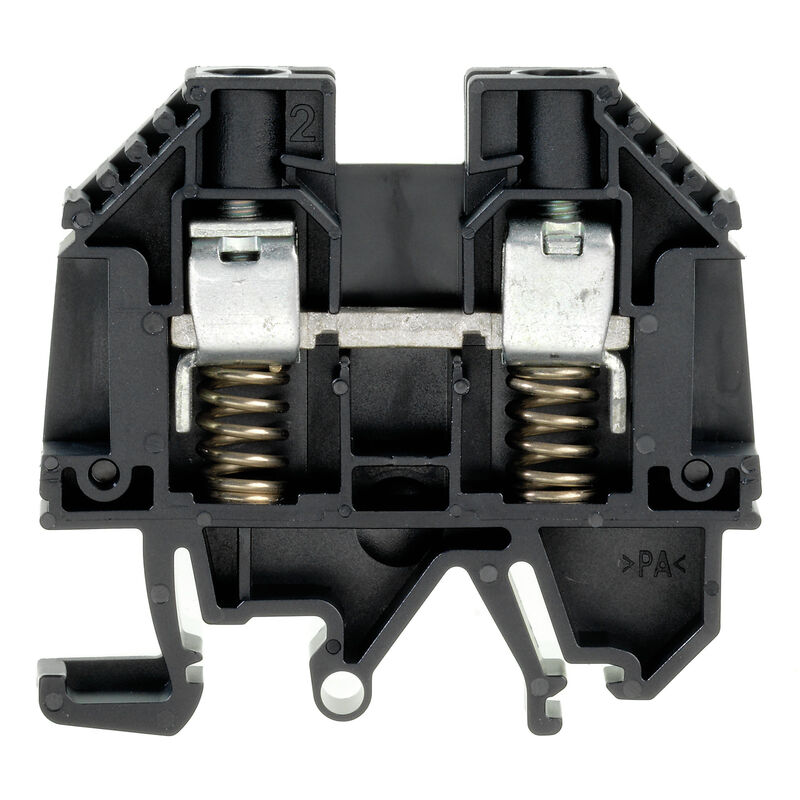

Weidmuller Weidmuller WDU 10 SL/EN SW

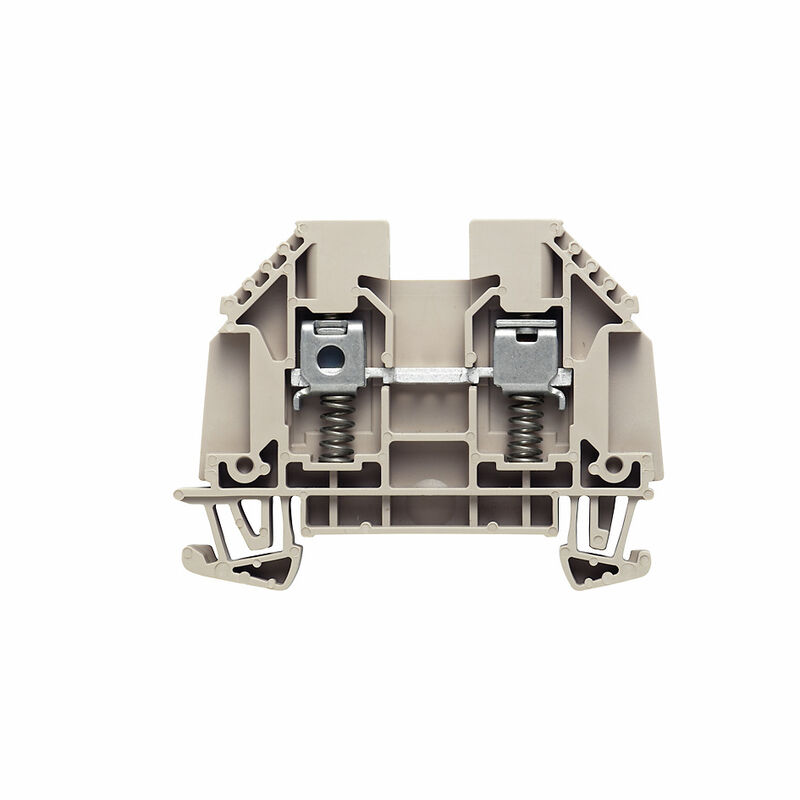

Weidmuller Weidmuller WDU 4 SL
