Weidmuller SL2C 16
Weidmuller 3037560000 - Feed-through and PE terminal Blocks - Width: 12.2 mm mm; Height: 77.2 mm mm; Storage Temperature: -25 °C...60 °C.
The 3037560000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 12.2 mm mm and Height: 77.2 mm mm.
Feed-through terminal block, SNAP IN, dark beige, 16 mm², 76 A, 1000 V, Number of connections: 2
Published specifications for this part include Storage Temperature: -25 °C...60 °C; Nominal current: 76 A; Type of mounting: TS 35; Ambient temperature: -60 °C…85 °C; Type: SL2C 16; Depth: 49.8 mm; Net weight: 41.46 g; Colour: dark beige; Rated voltage: 1,000 V; Stripping length: 20 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (CSA) | 1256475-213329 |
| Certificate No. (cURus) | E60693 |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 2.5 mm² |
| Colour | dark beige |
| Colour of operational elements | green |
| Conductor size Factory wiring max. (cURus) | 4 AWG |
| Conductor size Factory wiring min. (cURus) | 10 AWG |
| Conductor size Field wiring max. (cURus) | 4 AWG |
| Conductor size Field wiring min. (cURus) | 10 AWG |
| Connection cross-section, finely stranded, min. | 2.5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | SNAP IN |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 76 A |
| Current size B (CSA) | 75 A |
| Current size B (cURus) | 75 A |
| Current size C (CSA) | 75 A |
| Current size C (cURus) | 75 A |
| Depth | 49.8 mm |
| Depth (inches) | 1.961 inch |
| Depth including DIN rail | 58.8 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A7 |
| GTIN (EAN) | 4099987000376 |
| Height | 77.2 mm mm |
| Height (inches) | 3.039 inch |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 41.46 g |
| Nominal current | 76 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 3037560000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Qty. | 50 items |
| Rated cross-section | 16 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
| Rated voltage | 1,000 V |
| Rated voltage to adjoining terminal | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...60 °C |
| Stripping length | 20 mm |
| Surge voltage category | III |
| Twin wire-end ferrules, max. | 10 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type | SL2C 16 |
| Type of connection | SNAP IN |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal block, SNAP IN, dark beige, 16 mm², 76 A, 1000 V, Number of connections: 2 |
| Voltage size B (CSA) | 600 V |
| Voltage size B (cURus) | 600 V |
| Voltage size C (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Width | 12.2 mm mm |
| Width (inches) | 0.48 inch |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Wire connection cross section, finely stranded, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 25 mm² |
| Wire connection cross-section, solid core, min. | 2.5 mm² |
| Wire cross section max. (CSA) | 4 AWG |
| Wire cross section max. (cURus) | 4 AWG |
| Wire cross section min. (CSA) | 10 AWG |
| Wire cross section min. (cURus) | 10 AWG |
Frequently Asked Questions
How do I get pricing for 3037560000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3037560000?
3037560000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3037560000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Certificate No. (CSA): 1256475-213329. The full specification table on this page lists every published attribute for this part.
How quickly can 3037560000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

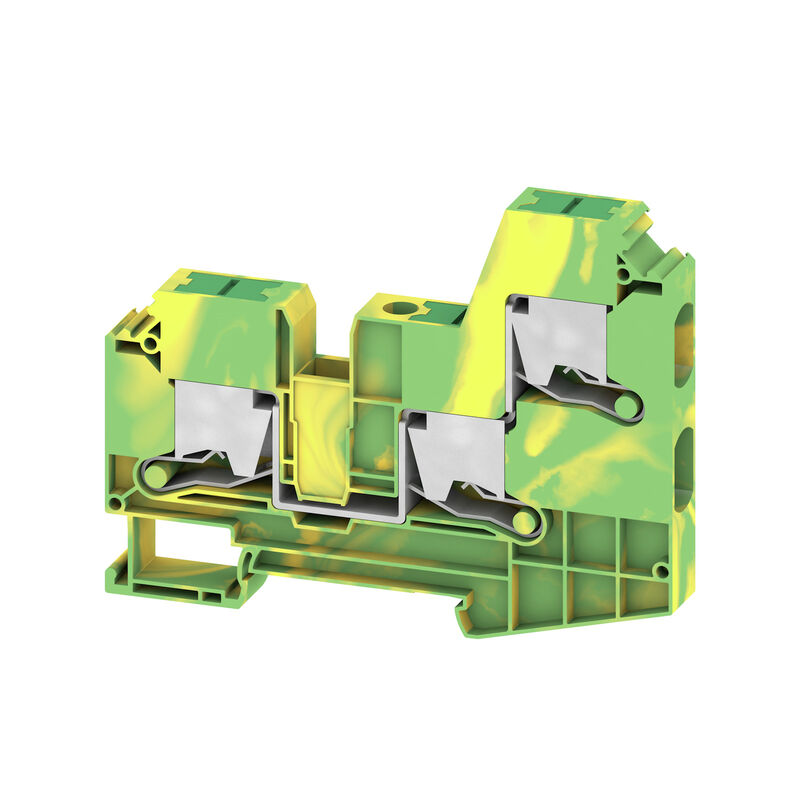

Weidmuller Weidmuller SL3C 10 PE
Weidmuller Weidmuller SL2C 16 BL

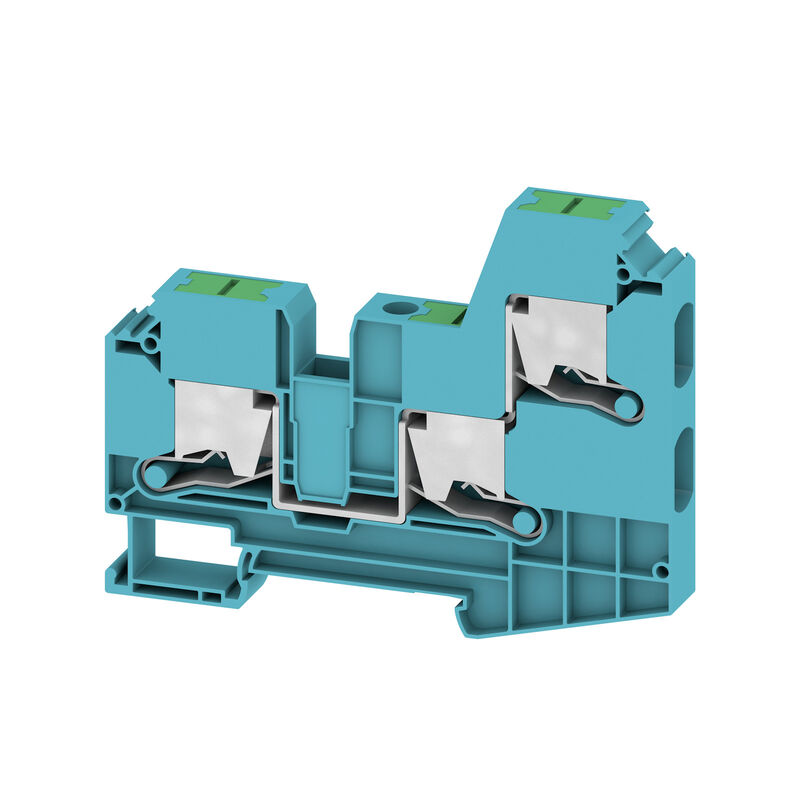

Weidmuller Weidmuller SL3C 10 BL
Weidmuller Weidmuller SL2C 16 PE

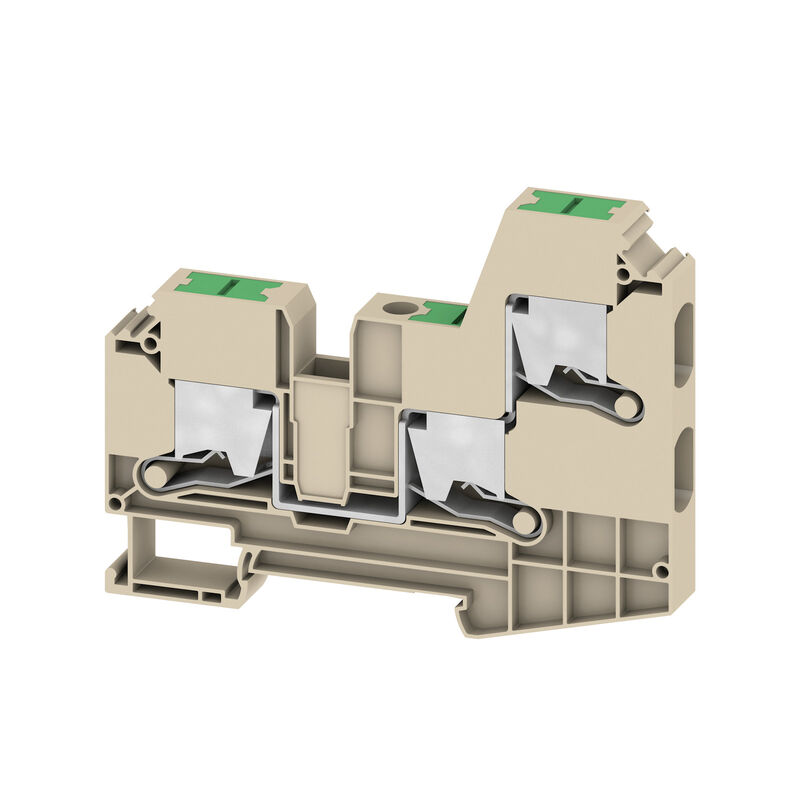

Weidmuller Weidmuller SL3C 10
