Weidmuller SL3C 10
Weidmuller 3037530000 - Feed-through and PE terminal Blocks - Width: 10.2 mm mm; Height: 89.1 mm mm; Storage Temperature: -25 °C...60 °C.
Weidmuller 3037530000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 10.2 mm mm and Height: 89.1 mm mm.
Feed-through terminal block, SNAP IN, dark beige, 10 mm², 57 A, 1000 V, Number of connections: 3
The specification set recorded for this part number covers Storage Temperature: -25 °C...60 °C; Nominal current: 57 A; Type of mounting: TS 35; Ambient temperature: -60 °C…85 °C; Type: SL3C 10; Depth: 68.5 mm; Net weight: 41.11 g; Colour: dark beige; Rated voltage: 1,000 V; Stripping length: 18 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (CSA) | 1256475-213329 |
| Certificate No. (cURus) | E60693 |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1.5 mm² |
| Colour | dark beige |
| Colour of operational elements | green |
| Conductor size Factory wiring max. (cURus) | 6 AWG |
| Conductor size Factory wiring min. (cURus) | 12 AWG |
| Conductor size Field wiring max. (cURus) | 6 AWG |
| Conductor size Field wiring min. (cURus) | 12 AWG |
| Connection cross-section, finely stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | SNAP IN |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 57 A |
| Current size B (CSA) | 55 A |
| Current size B (cURus) | 55 A |
| Current size C (CSA) | 55 A |
| Current size C (cURus) | 55 A |
| Depth | 68.5 mm |
| Depth (inches) | 2.697 inch |
| Depth including DIN rail | 77.5 mm |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | A6 |
| GTIN (EAN) | 4099987000345 |
| Height | 89.1 mm mm |
| Height (inches) | 3.508 inch |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 41.11 g |
| Nominal current | 57 A |
| Number of clamping points per level | 3 |
| Number of connections | 3 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 3037530000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Qty. | 50 items |
| Rated cross-section | 10 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
| Rated voltage to adjoining terminal | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...60 °C |
| Stripping length | 18 mm |
| Surge voltage category | III |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type | SL3C 10 |
| Type of connection | SNAP IN |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal block, SNAP IN, dark beige, 10 mm², 57 A, 1000 V, Number of connections: 3 |
| Voltage size B (CSA) | 600 V |
| Voltage size B (cURus) | 600 V |
| Voltage size C (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Width | 10.2 mm mm |
| Width (inches) | 0.402 inch |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section max. (cURus) | 6 AWG |
| Wire cross section min. (CSA) | 12 AWG |
| Wire cross section min. (cURus) | 12 AWG |
Frequently Asked Questions
How do I get pricing for 3037530000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3037530000?
3037530000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3037530000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Certificate No. (CSA): 1256475-213329. The full specification table on this page lists every published attribute for this part.
How quickly can 3037530000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller SL3C 10 BL

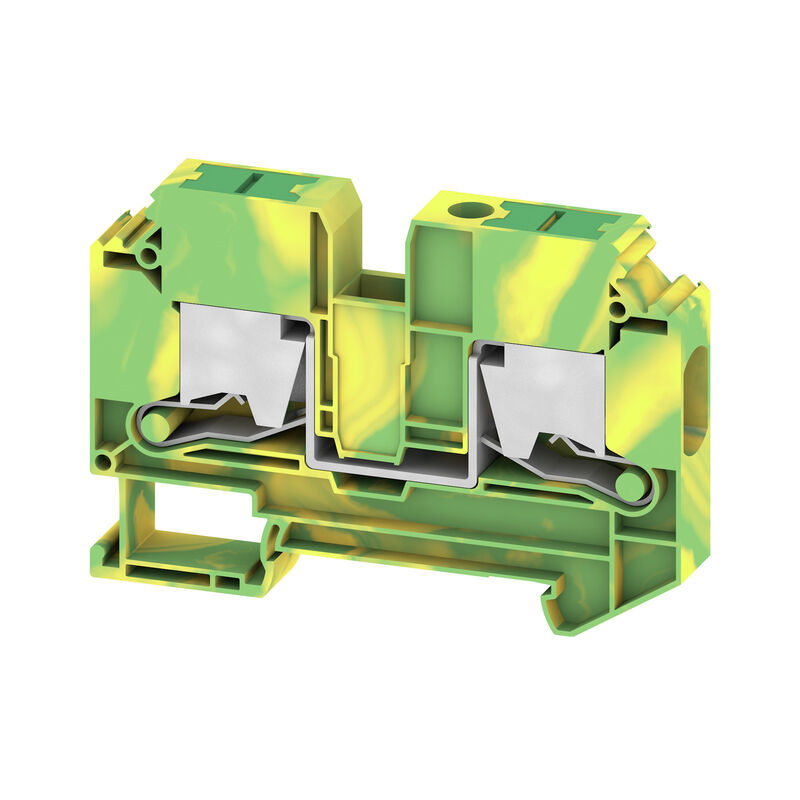

Weidmuller Weidmuller SL2C 10 PE
Weidmuller Weidmuller SL3C 10 PE

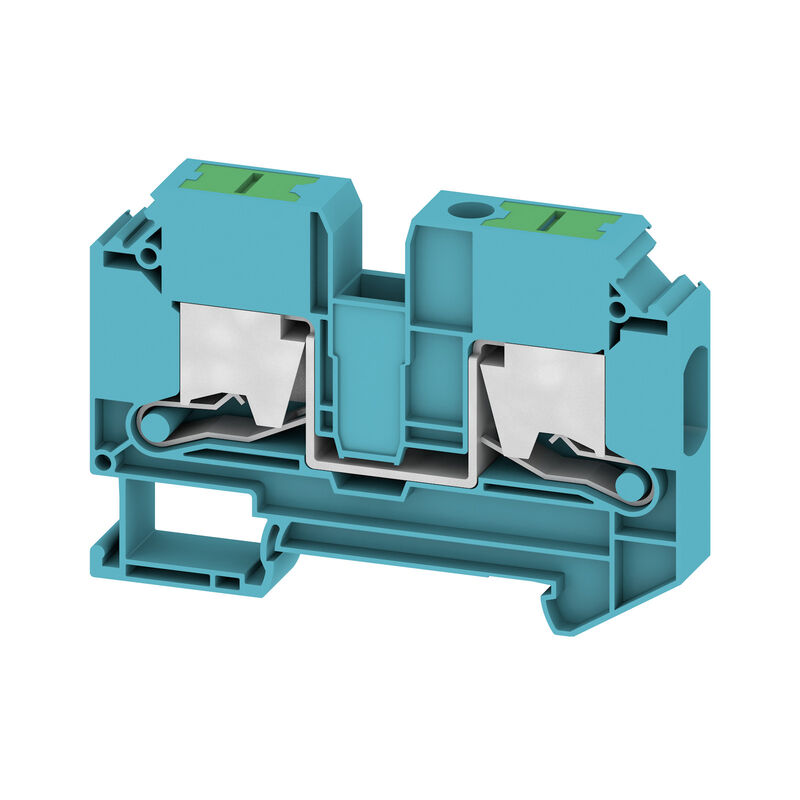

Weidmuller Weidmuller SL2C 10 BL
