Weidmuller WPE 4N
Weidmuller 1042700000 - Feed-through and PE terminal Blocks - Width: 6.1 mm mm; Height: 50 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 1042700000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 6.1 mm mm and Height: 50 mm mm.
PE terminal, Screw connection, Green/yellow, 4 mm², 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Published specifications for this part include Storage Temperature: -25 °C...55 °C; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WPE 4N; Depth: 37 mm; Net weight: 9.31 g; Colour: Green/yellow; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform; Certificate No. (UR): E60693; Order No.: 1042700000. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (CSA) | 200039-1057876 |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.13 mm² |
| Clamping screw | M 3 |
| Colour | Green/yellow |
| Conductor size Factory wiring max. (UR) | 10 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 10 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Depth | 37 mm |
| Depth (inches) | 1.457 inch |
| Depth including DIN rail | 38.5 mm |
| ECLASS 14.0 | 27-25-01-03 |
| ECLASS 15.0 | 27-25-01-03 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4032248273232 |
| Height | 50 mm mm |
| Height (inches) | 1.968 inch |
| Installation advice | when screwed in |
| Levels cross-connected internally | No |
| Locking | for screw fixing |
| Marking EN 60079-7 | Ex eb II C Gb |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 9.31 g |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1042700000 |
| PE connection | Yes |
| PE function | Yes |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Qty. | 50 items |
| Rated cross-section | 4 mm² |
| Rated DC voltage | 500 V |
| Rated impulse withstand voltage to adjacent terminal | 6 kV |
| Rated voltage to adjoining terminal | 500 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-2 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Tightening torque (max) | 1 Nm Nm |
| Tightening torque, min. | 0.5 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Type | WPE 4N |
| Type of connection | Screw connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | PE terminal, Screw connection, Green/yellow, 4 mm², 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Width | 6.1 mm mm |
| Width (inches) | 0.24 inch |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (CSA) | 10 AWG |
| Wire cross section max. (IECEX) | 4 mm² |
| Wire cross section min. (CSA) | 26 AWG |
Frequently Asked Questions
How do I get pricing for 1042700000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1042700000?
1042700000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1042700000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): DEMKO14ATEX1338U. The full specification table on this page lists every published attribute for this part.
How quickly can 1042700000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

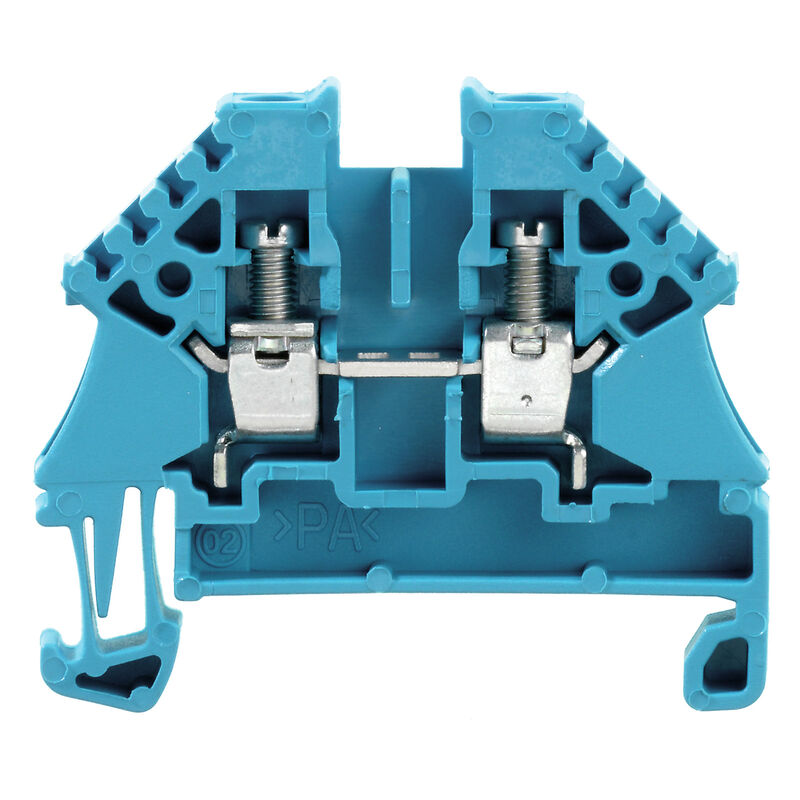

Weidmuller Weidmuller WDU 4N BL

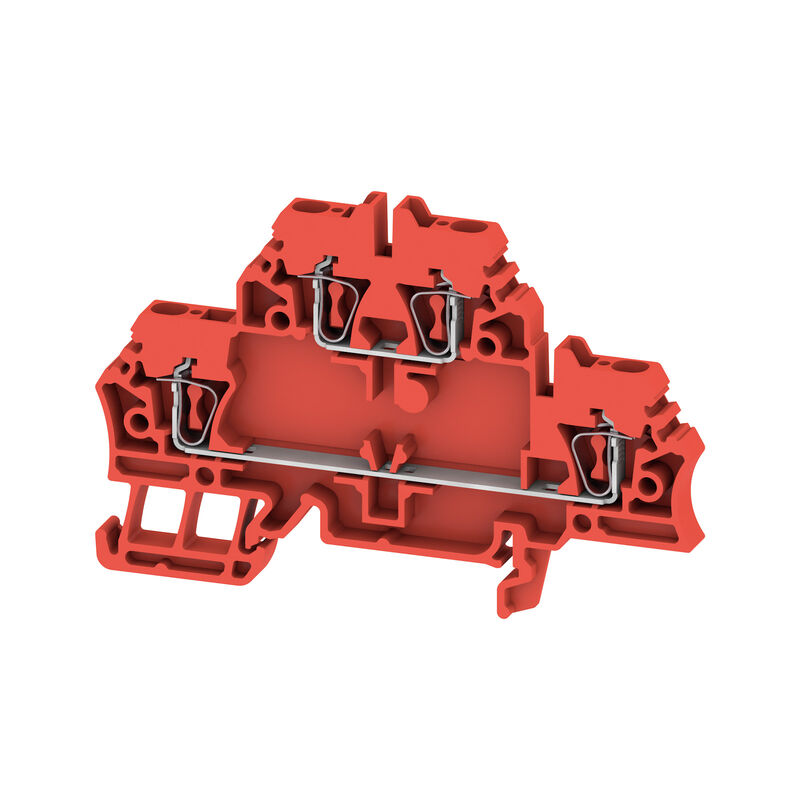

Weidmuller Weidmuller ZDK 2.5 RT

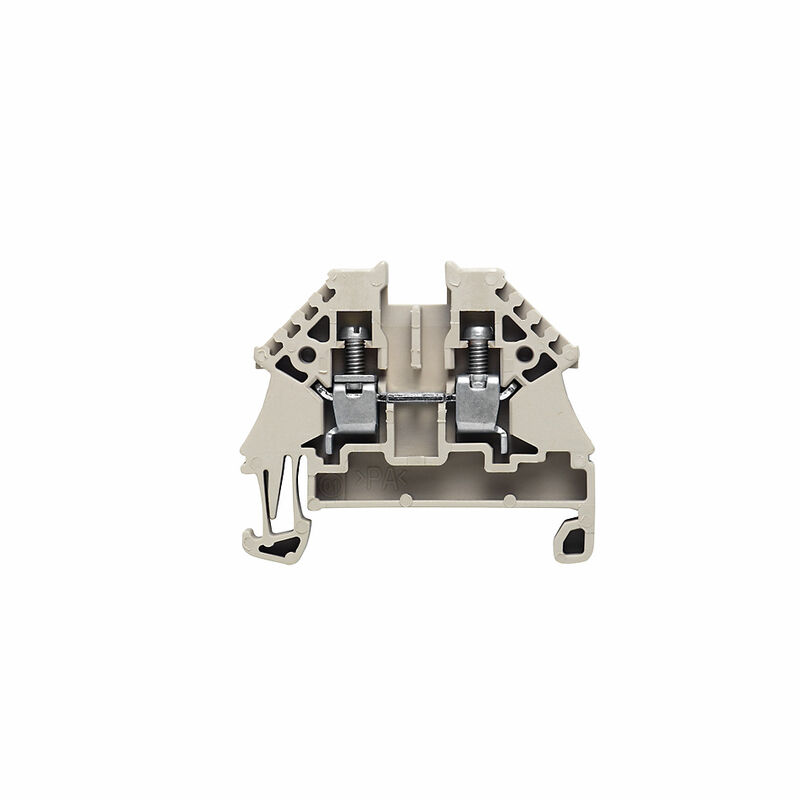

Weidmuller Weidmuller WDU 4N

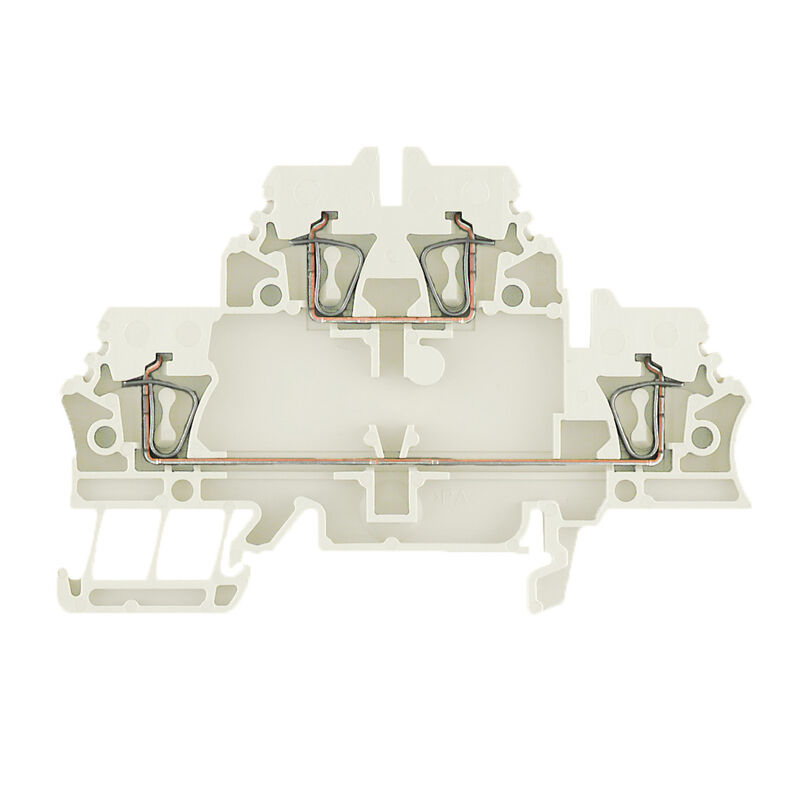

Weidmuller Weidmuller ZDK 2.5 WS
