WEG E16012EP3YAX355MLF3W — Motor

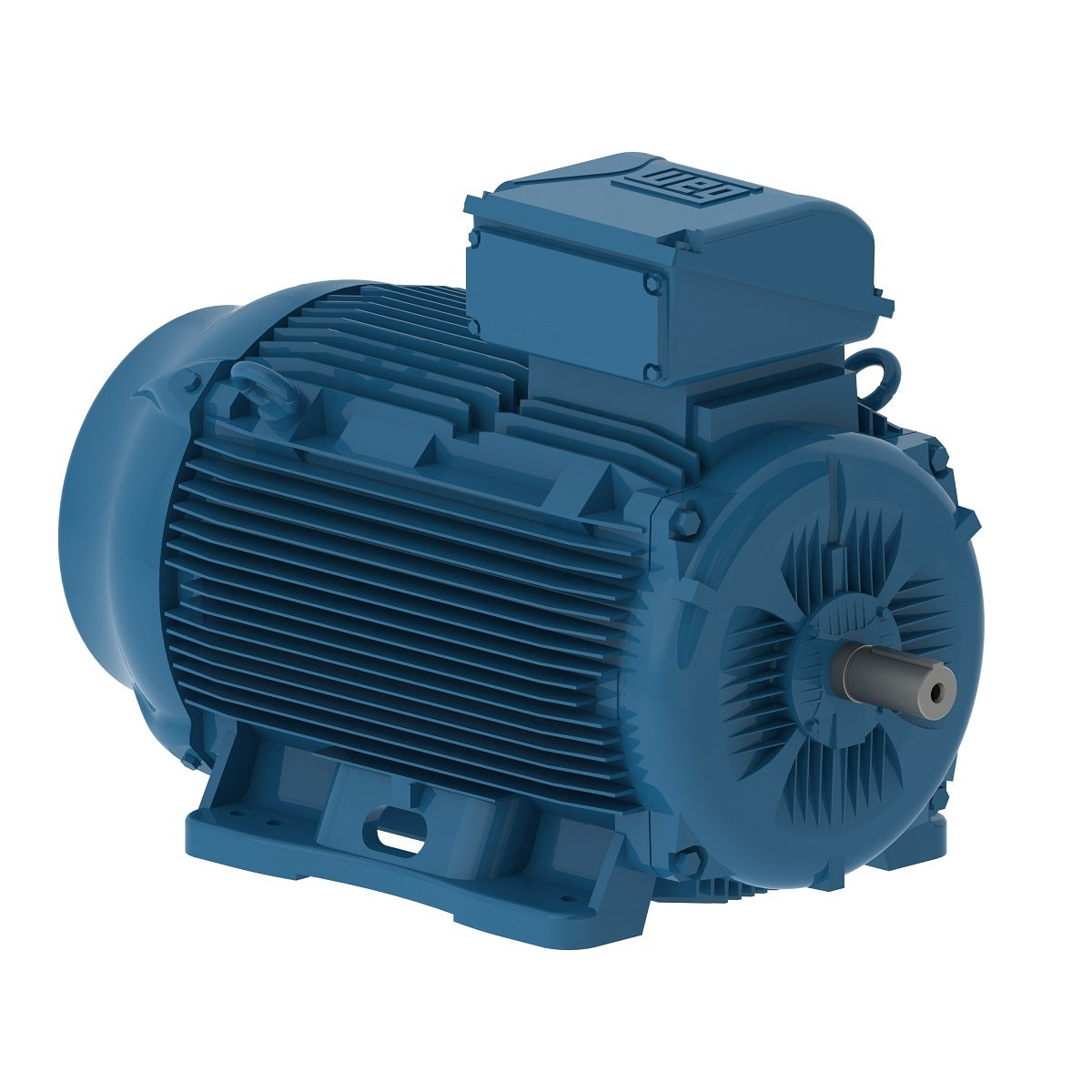

Weg Electric E16012EP3YAX355MLF3W, 220 Hp, 355M/L Frame, 1000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2.
Overview
E16012EP3YAX355MLF3W, 220 Hp, 355M/L Frame, 1000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2. Engineering Data Standard IEC 60034-1 Frequency 50 Hz Voltage 380-415/660//440-460 V Number of poles 6 Degree of Protection IP55 Synchronous speed 1000 rpm Output rating 160 kW Mounting Foot-mounted Flange Without Mounting B3T Terminal box¹ Top Enclosure IC411 - TEFC Frame 355M/L Output 160 kW (220 HP) Number of Poles 6 Frequency 50 Hz Rated speed 993 rpm Slip 0.70 % Rated voltage 400/690 V Rated current 303/176 A L. R. Amperes 1788/1036 A LRC 5.9 No load current 125/72.5 A Rated torque 1140 ft.lb Locked rotor torque 180 % Breakdown torque 220 % Locked rotor time 61s (cold) 34s (hot) Moment of inertia (J) 198 sq.ft.lb Design N Insulation Class F Service factor 1.00 Temperature rise 80 K Duty Cycle S1 Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting B3T Rotation¹ Both (CW and CCW) Noise level² 73.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 3205.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | E16012EP3YAX355MLF3W |
| KKM catalog reference | WEG-E16012EP3YAX355MLF3W |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E16012EP3YAX355MLF3W cost?
E16012EP3YAX355MLF3W is listed at CA$86,205.86 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the E16012EP3YAX355MLF3W?
E16012EP3YAX355MLF3W is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is E16012EP3YAX355MLF3W discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for E16012EP3YAX355MLF3W — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E16012EP3YAX355MLF3W?
Key specifications include Tag: WEG Electric; Weight: 3205.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can E16012EP3YAX355MLF3W ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
