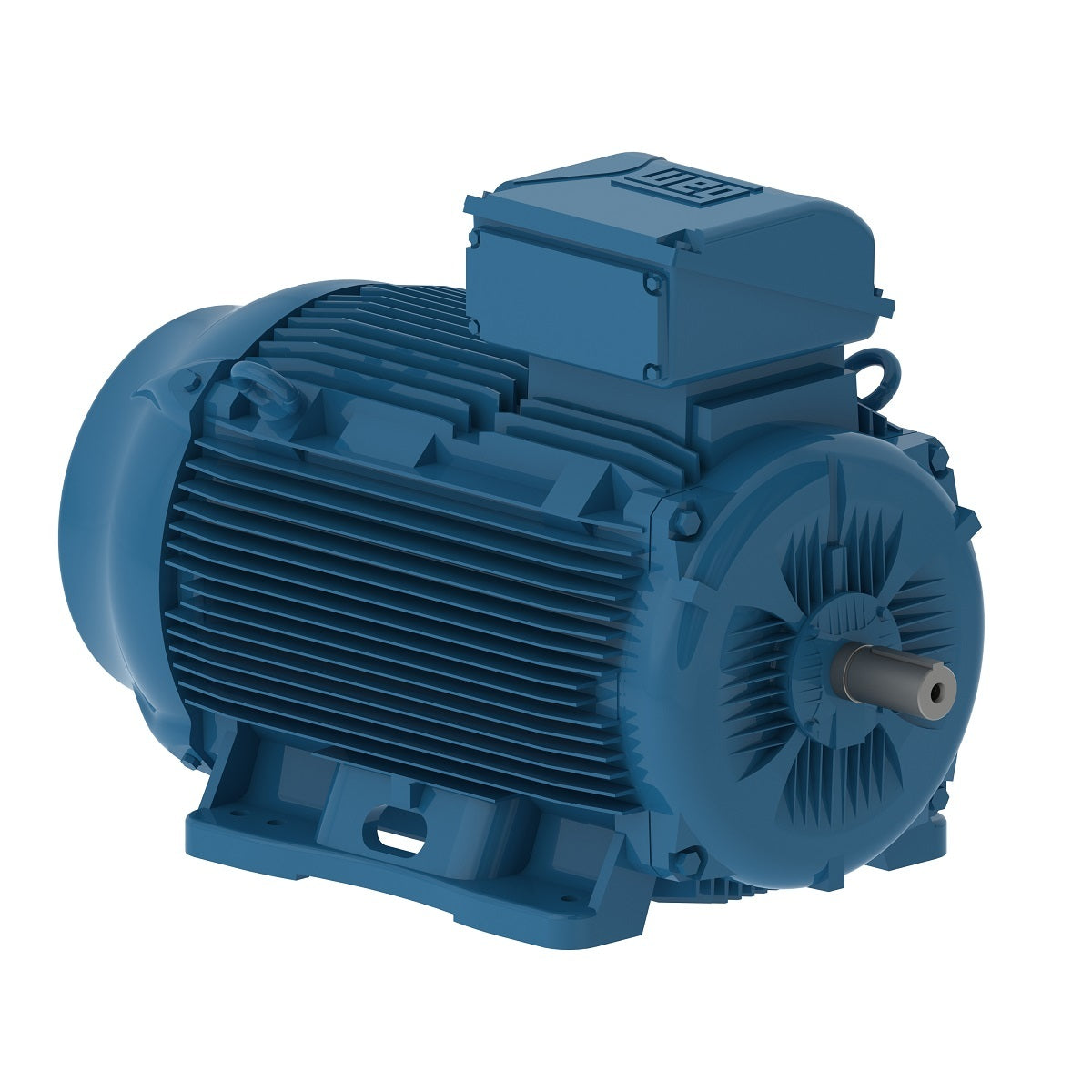

WEG E13236ET3YAX315SMF3W — Motor
Weg Electric E13236ET3YAX315SMF3W, 175 Hp, 315S/M Frame, 3000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3.
Overview
E13236ET3YAX315SMF3W, 175 Hp, 315S/M Frame, 3000 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3. Engineering Data The W22Xec motor offer safety and reliability for operation in a great variety of applications that require a non-incendive motor (Zone 2). It provides safety and complies with efficiency level specified by IEC 60034-30-1. It meets the requirements of installations where the flammable mixture is not often present, but may present risks. Product features Standard IEC 60034-1 Frequency 50 Hz Voltage 380-415/660//440-460 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3000 rpm Output rating 132 kW Mounting Foot-mounted Flange Without Mounting B3T Terminal box¹ Top Enclosure IC411 - TEFC Frame 315S/M Output 132 kW (175 HP) Number of Poles 2 Frequency 50 Hz Rated speed 2980 rpm Slip 0.67 % Rated voltage 400/690 V Rated current 224/130 A L. R. Amperes 1702/987 A LRC 7.6 No load current 66.0/38.3 A Rated torque 312 ft.lb Locked rotor torque 220 % Breakdown torque 310 % Locked rotor time 61s (cold) 34s (hot) Moment of inertia (J) 46.4 sq.ft.lb Design N Insulation Class F Service factor 1.00 Temperature rise 80 K Duty Cycle S1 Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting B3T Rotation¹ Both (CW and CCW) Noise level² 77.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 2315.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | E13236ET3YAX315SMF3W |
| KKM catalog reference | WEG-E13236ET3YAX315SMF3W |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E13236ET3YAX315SMF3W cost?
E13236ET3YAX315SMF3W is listed at CA$51,756.01 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the E13236ET3YAX315SMF3W?
E13236ET3YAX315SMF3W is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is E13236ET3YAX315SMF3W discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for E13236ET3YAX315SMF3W — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E13236ET3YAX315SMF3W?
Key specifications include Tag: WEG Electric; Weight: 2315.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can E13236ET3YAX315SMF3W ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
