WEG 20012ET3G447TS-W22 — Motor
Weg Electric 20012ET3G447TS-W22, 200 Hp, 445/7TS Frame, 1200 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.
Overview
20012ET3G447TS-W22, 200 Hp, 445/7TS Frame, 1200 RPM, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 460 V Number of poles 6 Degree of Protection IP55 Synchronous speed 1200 rpm Output rating 200 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 445/7TS Output 200 HP (150 kW) Number of Poles 6 Frequency 60 Hz Rated speed 1185 rpm Slip 1.25 % Rated voltage 460 V Rated current 237 A L. R. Amperes 1493 A LRC 6.3x(Code G) No load current 100 A Rated torque 886 ft.lb Locked rotor torque 229 % Breakdown torque 240 % Locked rotor time 27s (cold) 15s (hot) Moment of inertia (J) 145 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 69.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 2472.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 20012ET3G447TS-W22 |
| KKM catalog reference | WEG-20012ET3G447TS-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 20012ET3G447TS-W22 cost?
20012ET3G447TS-W22 is listed at CA$32,931.23 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 20012ET3G447TS-W22?
20012ET3G447TS-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 20012ET3G447TS-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 20012ET3G447TS-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20012ET3G447TS-W22?
Key specifications include Tag: WEG Electric; Weight: 2472.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 20012ET3G447TS-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 20012ET3G447T-W22 — WEG 20012ET3G447T-W22 200HP Three Phase General Purpose Cast Iron W22 motors are…
- 20012ET3G449T-W22 — WEG 20012ET3G449T-W22 200HP Three Phase General Purpose Cast Iron W22 motors are…
Related Products

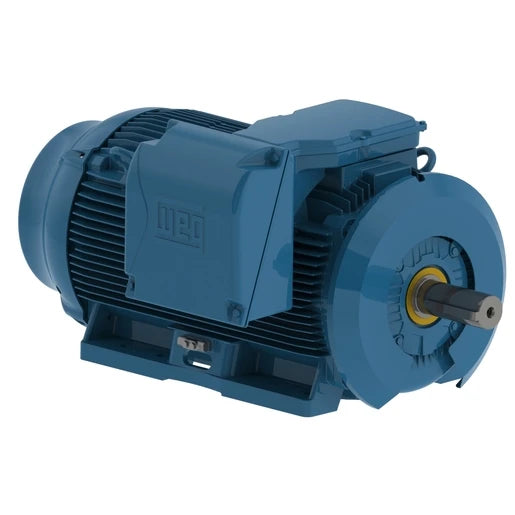

WEG Weg Electric 20009ST3HIE449T-W22, 200 Hp, L447/9T Frame, 900 RPM,…

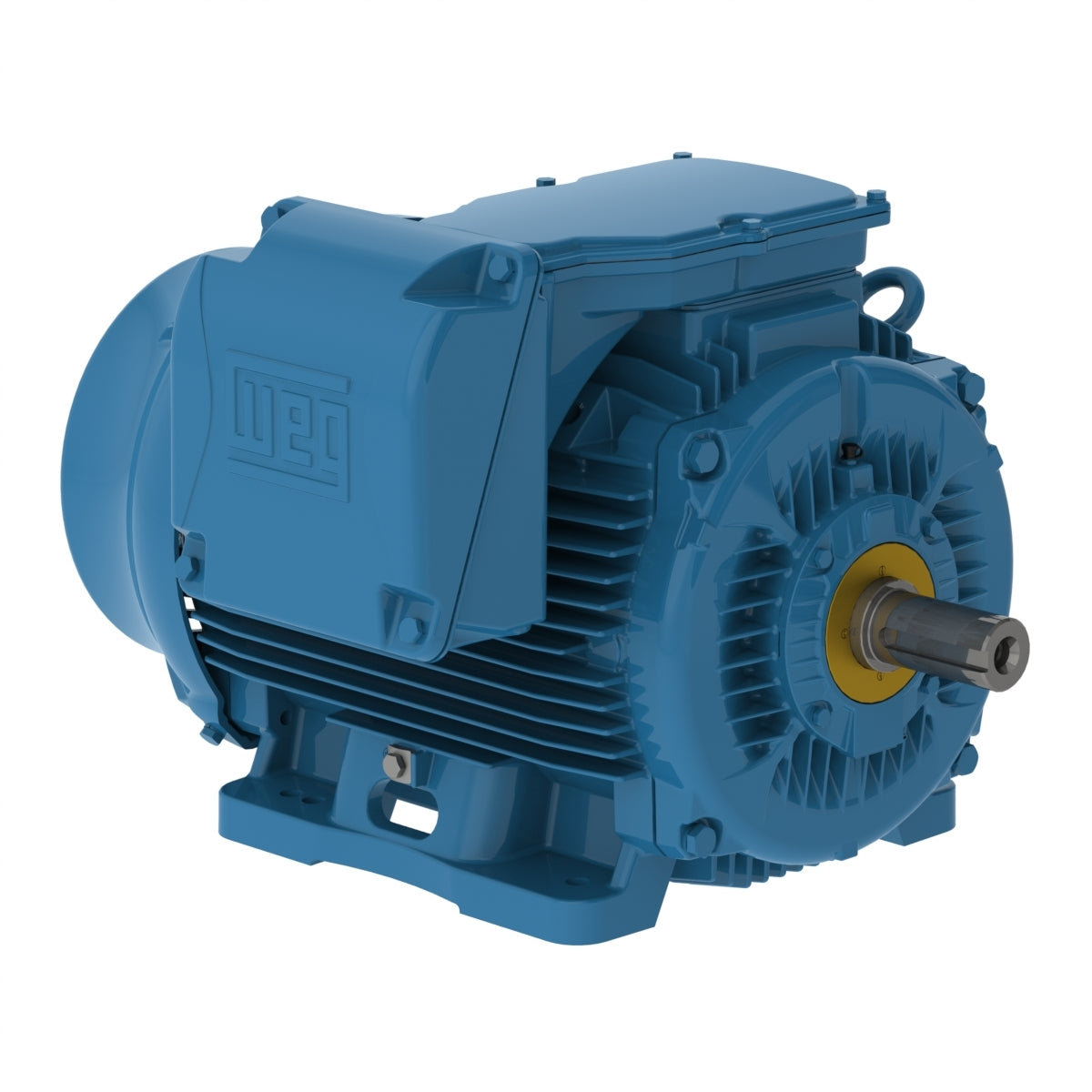

WEG Weg Electric 20012ET3GKD505Z-W22, 200 Hp, 504/5TZ Frame, 1200 RPM,…
WEG Weg Electric, 18536EG3Y315L-W22, 250 HP, 315L FR, 3Ph, 460//380-400-415…

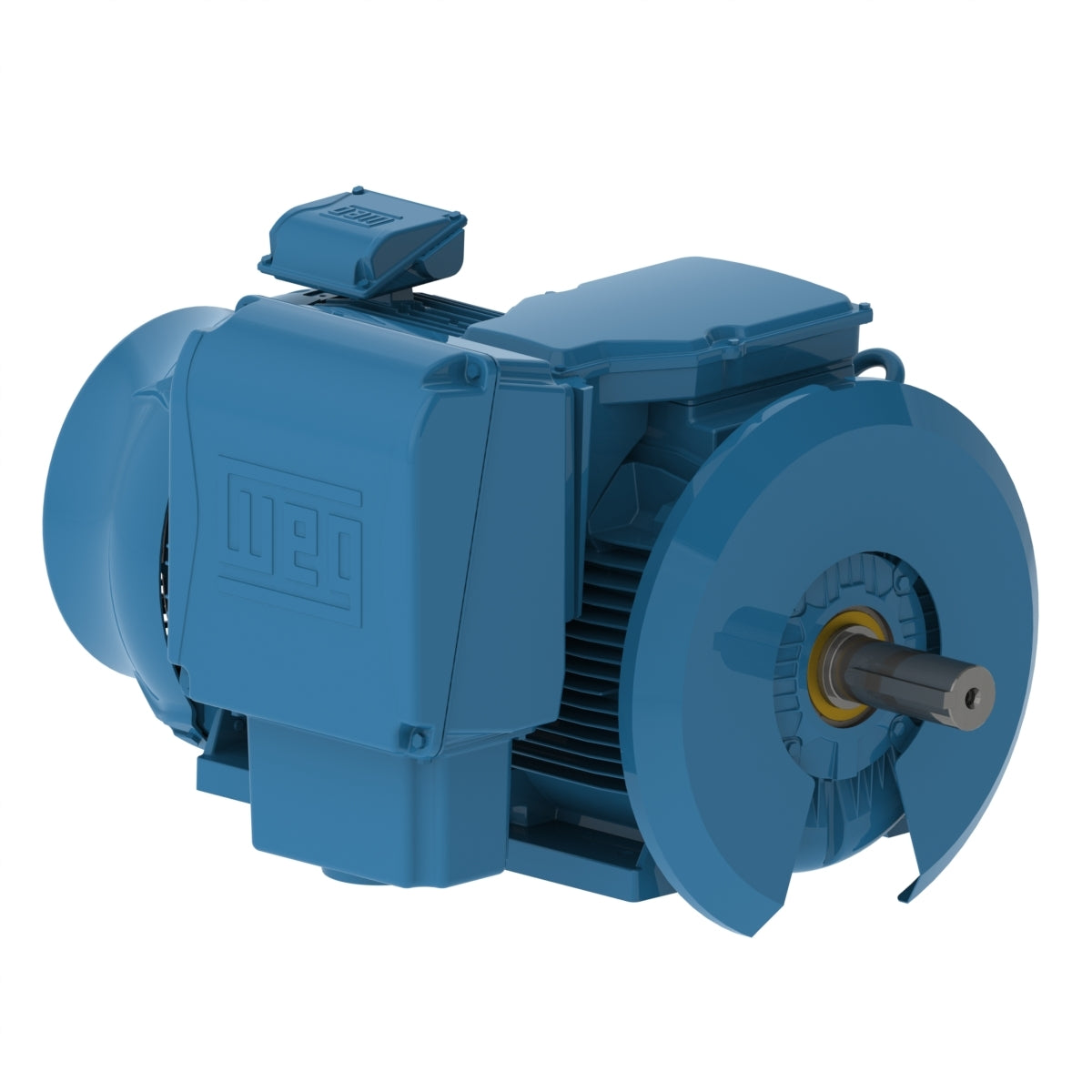

WEG Weg Electric 20012ET3XL449-W22MV, 200 Hp, L447/9T Frame, 1200 RPM,…

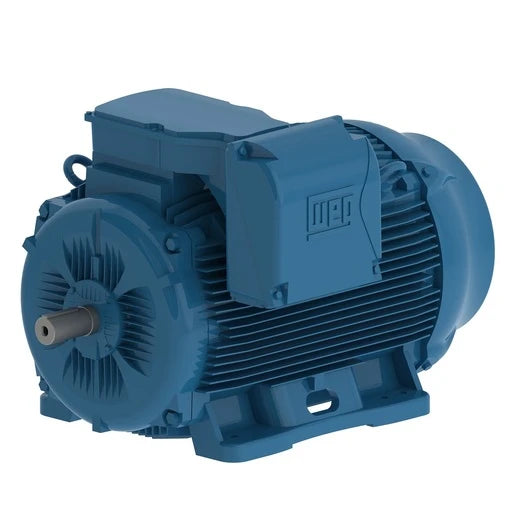

WEG Weg Electric, 18518EG3Y315L-W22, 250 HP, 315L FR, 3Ph, 460//380-400-415…
